- Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER 6-Series Instruction Booklet HS-665 / HS-666 HS-686...
-
Page 2: Table Of Contents
6-Series Instruction Booklet TABLE OF CONTENTS INTRODUCTION ----------------------------------------------------------1 IMPORTANT PRECAUTIONS --------------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS ------------3 IDENTIFICATION OF PARTS ---------------------------------------------5 OPERATING YOUR SCOOTER ------------------------------------------7 ASSEMBLING YOUR SCOOTER ----------------------------------------9 DISASSEMBLING YOUR SCOOTER -----------------------------------11 CHARGING THE BATTERIES ------------------------------------------13 CARE AND MAINTENANCE --------------------------------------------14 TROUBLESHOOTING --------------------------------------------------15 TECHNICAL SPECIFICATIONS... -
Page 3: Introduction
Please read and observe all warning and instruction provided in the owner's manual before operating this scooter. Also, retain this booklet for future reference. If you have any questions, you can contact: C.T.M.HOMECARE PRODUCT, INC. 13815 Magnolia Ave. #B, Chino CA 91710 Toll Free : 1-866-466-8168 Tel : 909-590-1388 Fax : 909-590-3365 E-Mail : ctm@ctmhomecare.com http : //www.ctmhomecare.com... -
Page 4: Important Precautions
6-Series Instruction Booklet IMPORTANT PRECAUTIONS Only one person at a time could ride a C.T.M. Mobility Scooter. Maximum load is 160 kgs/ 350 pounds. Turn key off before getting on or off. Always drive carefully and be aware of others using the same area as yourself. Always use pedestrian crossings wherever possible. -
Page 5: Electromagnetic Interference And Warnings
6-Series Instruction Booklet Electromagnetic Interference (EMI) CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is inccterfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. - Page 6 6-Series Instruction Booklet Motorized Scooter Electromagnetic Interference Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.
-
Page 7: Identification Of Parts

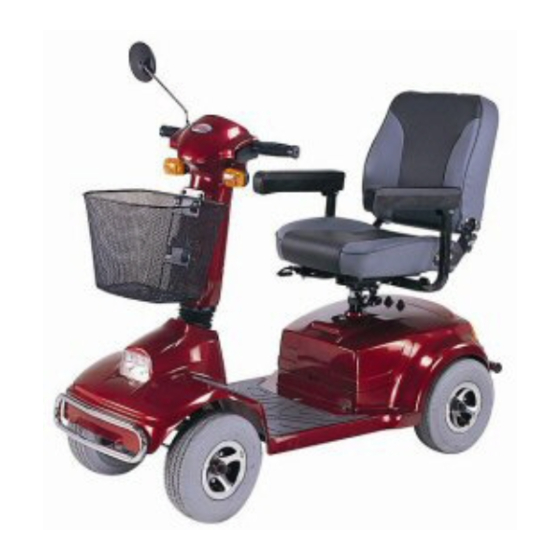

6-Series Instruction Booklet IDENTIFICATION OF PARTS The C.T.M. Mobility Scooter is an indoor/outdoor scooter that provides transportation for a disabled or elderly person. Rearview Mirror Tall Back Luxury Swivel Seat - Thumb Lever Sliding Adjustment The full lighting system consists of headlights, taillights and both front and rear turn signals. - Page 8 6-Series Instruction Booklet Function of parts Thumb Levers : Pushing right thumb lever moves scooter forward. Pushing the left thumb lever moves scooter backward. Releasing both engages automatic brake. Seat Adjustment : Seat Control Slide : lift up lever under front edge of seat base to move forward and backward. Seat Rotation Lever : push lever back to rotate seat;...
-
Page 9: Operating Your Scooter
6-Series Instruction Booklet OPERATING YOUR SCOOTER all electrical connections are firmly attached adjust seat height and location adjust tiller to comfortable position 1.Before operating your scooter, check the following: free-wheeling device on D speed dial is at the turtle picture. 2.Sit on scooter and turn on key, all battery gauge LED lights should be lighting the green, yellow, and red color zones. - Page 10 6-Series Instruction Booklet Other operating information Hill climbing : You may need to use a higher speed. Turn to lower speed before going downhill. Curb climbing : Approach slowly at right angles to the curb. Do not attempt greater than a 2" curb. If Self-Diagnostic Warning Light starts to blink, identify the problem from chart on page 14 and take action.
-
Page 11: Assembling Your Scooter
6-Series Instruction Booklet ASSEMBLING YOUR SCOOTER No tools are necessary. A screwdriver is needed to adjust seat height after assembly. To assemble C.T.M. Mobility Scooter you should have the three scooter parts : front. section, rear section and seat. You will also need two batteries and a battery charger. Follow these steps: Use the Tiller Angle Adjustment Lever to move the Tiller Angle Adjustment up out of the way.(See Fig. - Page 12 6-Series Instruction Booklet Place battery cover over batteries.(See Fig. 8) Loosen Seat Rotation Lever (E) counterclockwise. Place seat on seat post. Tighten Lever (E) again by turning clockwise. Lock Seat Control Lever on bottom of seat before sitting down.(See Fig. 9) Figure 8 Figure 8 Figure 9...
-
Page 13: Disassembling Your Scooter
6-Series Instruction Booklet DISASSEMBLING YOUR SCOOTER Taking apart your scooter enables you to save space when keeping it in storage or to carry it along in your vehicle when going away from home. Having scooter disassembled is easier than ever since no tools are required. Please follow these steps : Seat is removable by releasing the Seat Adjusting Lever (F) and then lift off. - Page 14 6-Series Instruction Booklet Rear Shroud is removable by lifting the Rear Shroud up. (See Fig. 16) Disconnect Wire Harness. (See Fig. 17) Figure 16 Figure 16 Figure 17 Figure 17 Release two Guide Pins to separate Front and Rear Sections. (See Fig. 18) With one hand on rear frame and other on seat post as handheld, detach Front and Rear Sections.
-
Page 15: Charging The Batteries
6-Series Instruction Booklet CHARGING THE BATTERIES Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. Each country may supply different charger. -
Page 16: Care And Maintenance
6-Series Instruction Booklet CARE AND MAINTENANCE Cleaning your scooter Your scooter can be cleaned with a dry cloth. Do not use water because of electrical connections. Maintaining your scooter All maintenance and repair of your scooter should be done by an authorized dealer. Storing your scooter Between uses, your scooter is best stored at room temperature in a dry area. -
Page 17: Troubleshooting
6-Series Instruction Booklet TROUBLESHOOTING Here are some suggestions about solving problems you may have with your scooter. There is a Self-Diagnostic Warning Light on the Control Panel. To check the Self- Diagnostic Warning Light, turn on the key and count the number of blinks on the Warning Light. - Page 18 6-Series Instruction Booklet Summay Avoid sources of Electromagnetic Interference because they may affect the scooter. Assembly and disassembly : Assemble completely before riding. Always disassemble before transporting in a car. Charge batteries after each use. Safety Rules : Turn key OFF before getting on or off. Allow scooter to stop before changing from forward to reverse.
-
Page 19: Technical Specifications
6-Series Instruction Booklet SPECIFICATION SPECIFICATIONS HS-665 HS-666 HS-686 Overall Length 47.8" 47.8" 52.8" Overall Width 24.6" 24.6" 24.6" Overall Height 39" 39.5" 39.4" Wheels: Front 10" 10" 11" Wheels: Rear 11" 11" 11" Weight w/ Batteries 190 lbs 192 Ibs.
