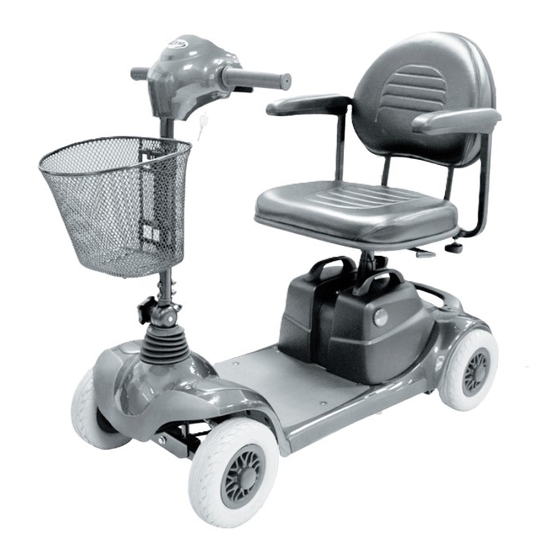

- Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER HS-300E Instruction Booklet...
-
Page 2: Table Of Contents
HS-300E Instruction Booklet TABLE OF CONTENTS INTRODUCTION ---------------------------------------------------------1 IMPORTANT PRECAUTIONS -----------------------------------------2 ELECTROMAGNETIC INTERFERENCE ---------------------------------------------------------3 AND WARNINGS ------------------------------------------6 IDENTIFICATION OF PARTS ---------------------------------------9 OPERATING YOUR SCOOTER -------------------------------12 DISASSEMBLING YOUR SCOOTER -------------------------------14 RE-ASSEMBLING YOUR SCOOTER ----------------------------------------15 CHARGING THE BATTERIES ------------------------------------------17 CARE AND MAINTENANCE... -
Page 3: Introduction
HS-300E Instruction Booklet INTRODUCTION Thank you and congratulations on purchasing your new C.T.M. Mobility Scooter. It is designed to provide you with transportation indoors and outdoors. Chien Ti Enterprise Co., Ltd. is your manufacturer for the C.T.M. Mobility Scooter. We pride ourselves on providing safe and comfortable products. -
Page 4: Important Precautions
HS-300E Instruction Booklet IMPORTANT PRECAUTIONS •Only one person at a time could ride a C.T.M. Mobility Scooter. •Maximum user weight is 130 kg / 287 lbs. •Turn key off before getting on or off. •Always drive carefully and be aware of others using the same area. -
Page 5: Electromagnetic Interference And Warnings
HS-300E Instruction Booklet ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. - Page 6 HS-300E Instruction Booklet 3.Long-range transmitters and transceivers such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios. Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players,...
- Page 7 HS-300E Instruction Booklet 4.Be aware that adding accessories or components, or modifying the motorized scooter, may make it more susceptible to EMI; and There is no easy way to evaluate their effect on the overall immunity of the motorized scooter.
-
Page 8: Identification Of Parts
Figure 1 - HS-300E Front View Self-Diagnostic Warning Light Horn Button Battery Gauge Free-Wheeling Release Lever Lever Speed Dial Knob Thumb Lever Main Key Switch Anti-Tip Wheels Figure 2 - HS-300E Top Control Panel Figure 2 - HS-300E Rear View... -
Page 9: Battery Gauge
HS-300E Instruction Booklet Function Of Parts : TOP CONTROL PANEL •Speed Dial Knob The image of rabbit means fast or high speed. The image of turtle means slow or low speed. By turning this knob towards chosen image you can control overall speed of the vehicle. - Page 10 HS-300E Instruction Booklet •Armrest Width Adjustment Thumbscrews Loosen two thumbscrews to adjust arm width; tighten again to lock in desired position. REAR BODY •Anti-Tip Wheels Added safety feature to keep scooter from tipping over. •Free-Wheel Lever The scooter carn be pushed manually. To do this you must push the free wheel lever...
-
Page 11: Operating Your Scooter
HS-300E Instruction Booklet OPERATING YOUR SCOOTER Before beginning your journey with your new scooter, make sure that scooter is on a level surface and clear of any obstacles. Although your scooter is able to climb slopes, it is safer to practice on a level surface. - Page 12 Kerb climbing: Approach slowly at right angles to the kerb. A direct approach is needed. Do not attempt to climb curbs greater than a 1.2" for the HS-300E. If Self-Diagnostic Warning Light starts to flash, identify problem from the chart on page 18 and take action.
- Page 13 HS-300E Instruction Booklet Do not attempt climb an incline grade of over 8 degrees : Attempting to turn scooter on a slope is not recommended, but if this is necessary turn scooter speed down to its minimum (turtle position) before proceeding.
-
Page 14: Disassembling Your Scooter
HS-300E Instruction Booklet DISASSEMBLING YOUR SCOOTER Taking apart your scooter enables you to save space when keeping it in storage or to carry it along in your vehicle when going away from home. No tools are reguired to disassemble the scooter. Please follow these steps: Remove seat by pulling up Seat Rotation Lever (A). - Page 15 HS-300E Instruction Booklet Remove Front Basket (G) by lifting.(See Fig. 8) Rotate Hand Wheel Tiller Angle Adjustment (H) counterclockwise to adjust tiller down. Rotate Wheel clockwise to lock tiller.(See Fig. 9) Figure 8 Figure 8 Figure 9 Figure 9 Pictured are 5 main parts after disassembling scooter. These parts consist of Front and Rear Sections, Seat, Basket, and Battery pack.(See Fig.
-
Page 16: Re-Assembling Your Scooter
HS-300E Instruction Booklet RE-ASSEMBLING YOUR SCOOTER To assemble scooter, you can repeat disassembly directions in reverse. Abbreviated directions are given below. Refer to Figures on pages 12 - 13 to locate the parts. 1.Rotate Hand Wheel Tiller Angle Adjustment clockwise to adjust tiller and counterclockwise to lock tiller into its upright position. -
Page 17: Charging The Batteries
Instruction Booklet CHARGING THE BATTERIES Your HS-300E scooter is equipped with two sealed, maintanence free 12V. 18Ah. rechargeable batteries and one 24V/2A charger. Batteries must be charged before using scooter for first time and should be recharged after each day's use. Be sure power switch is in OFF position and free-wheeling lever is not in freewheel mode. - Page 18 HS-300E Instruction Booklet You can also charge your batteries on & off the scooter : 1.Switch your scooter off at tiller main switch. 2.Remove battery pack from scooter. 3.Please refer to above charging procedure for following actions. Figure 13 Figure 13...
-
Page 19: Care And Maintenance
HS-300E Instruction Booklet CARE AND MAINTENANCE Taking care of your scooter will keep it in top-notch condition. It is recommended that you discuss with local authorized dealer for a preventative maintenance schedule scooter. Here are few maintenance guidelines : BODY COVER : if your scooter is dirty, use a damp or lightly soapy cloth to wipe it down. -
Page 20: Troubleshooting
HS-300E Instruction Booklet TROUBLESHOOTING Flash Description Meaning The batteries are running low. Battery Low •Recharge the batteries The batteries have run out of charge Low Battery Fault •Recharge the batteries Battery voltage is too high. This may occur if overcharged &/or traveling down a long slope. - Page 21 HS-300E Instruction Booklet Other Problems : •The scooter will not move when the key is turned on: 1.Check battery gauge on control panel. Battery gauge should be full. 2.Check the Self-Diagnostic Warning Light. It should be steady. If it is flashing, see chart on page 18 for problem identification.
-
Page 22: Technical Specifications
HS-300E Instruction Booklet TECHNICAL SPECIFICATIONS Overall Length 970 mm / 38" Overall Width 520 mm / 21" Overall Height 915 mm / 36" Wheels: Front 210 mm / 8 1/4 " Wheels: Rear 210 mm / 8 1/4 " Weight w/ Batteries 52.7 kg / 116 Ibs...
