RIP fan removal
See
"RIP fan, 92 mm" on page 7-35
1.
Remove the rear cover. See
2.
Disconnect the rip fan cable from the system board at connector J3.
3.

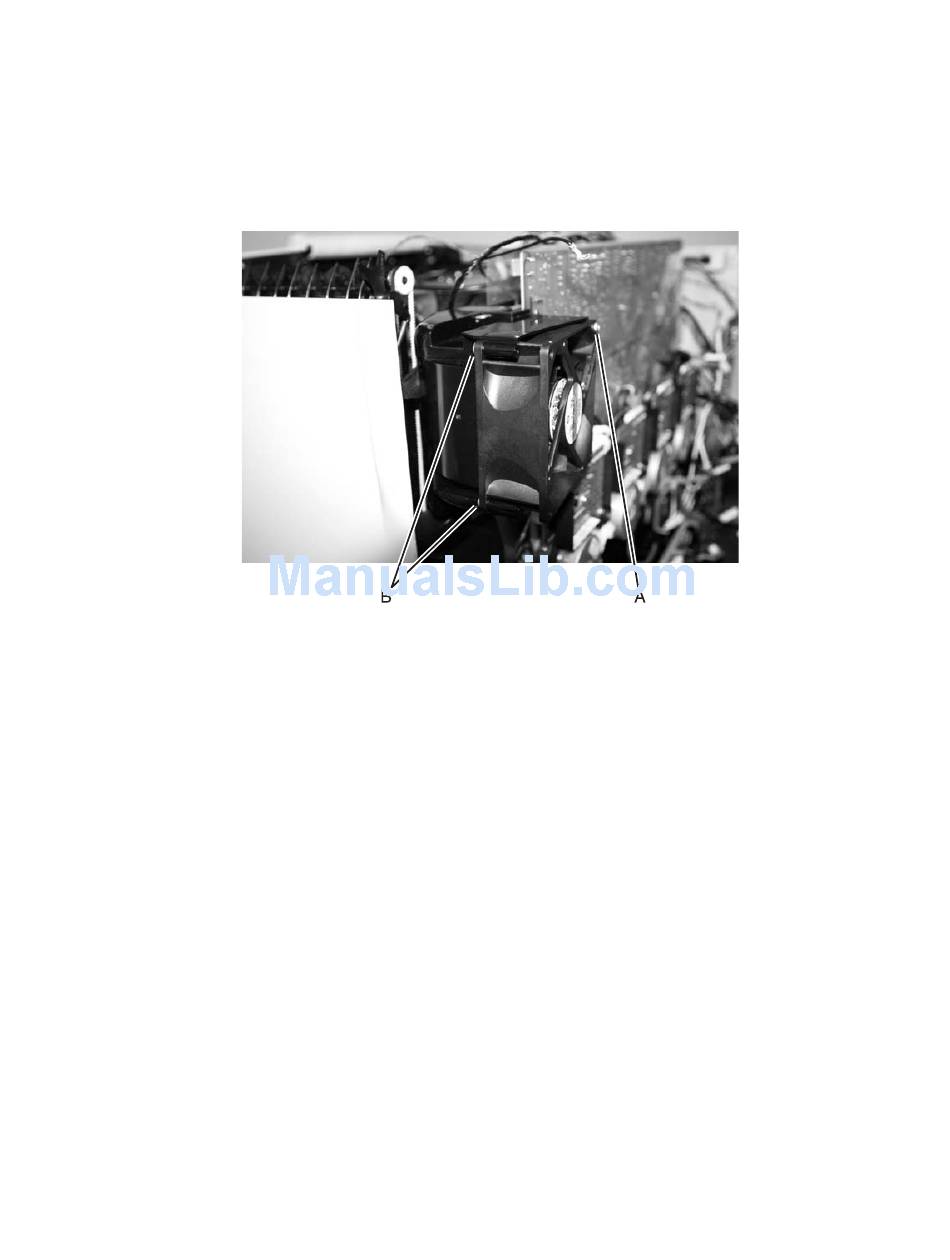

Remove the front rip fan screw (A).
4.
Remove the two rip fan rear screws (B).
5.
Remove the rip fan.
for the part number.
"Rear cover removal" on page
4-22.
Repair information
5061
4-87
