Rear bellcrank removal (cyan, magenta, yellow)

See page 7-25
and magenta.
1.
Power off the printer.
2.
Remove the four toner cartridges, and leave the front door open.
3.
Remove the ITU assembly. See
4.
Check each of the rear bellcranks for cracks or breakage.
5.

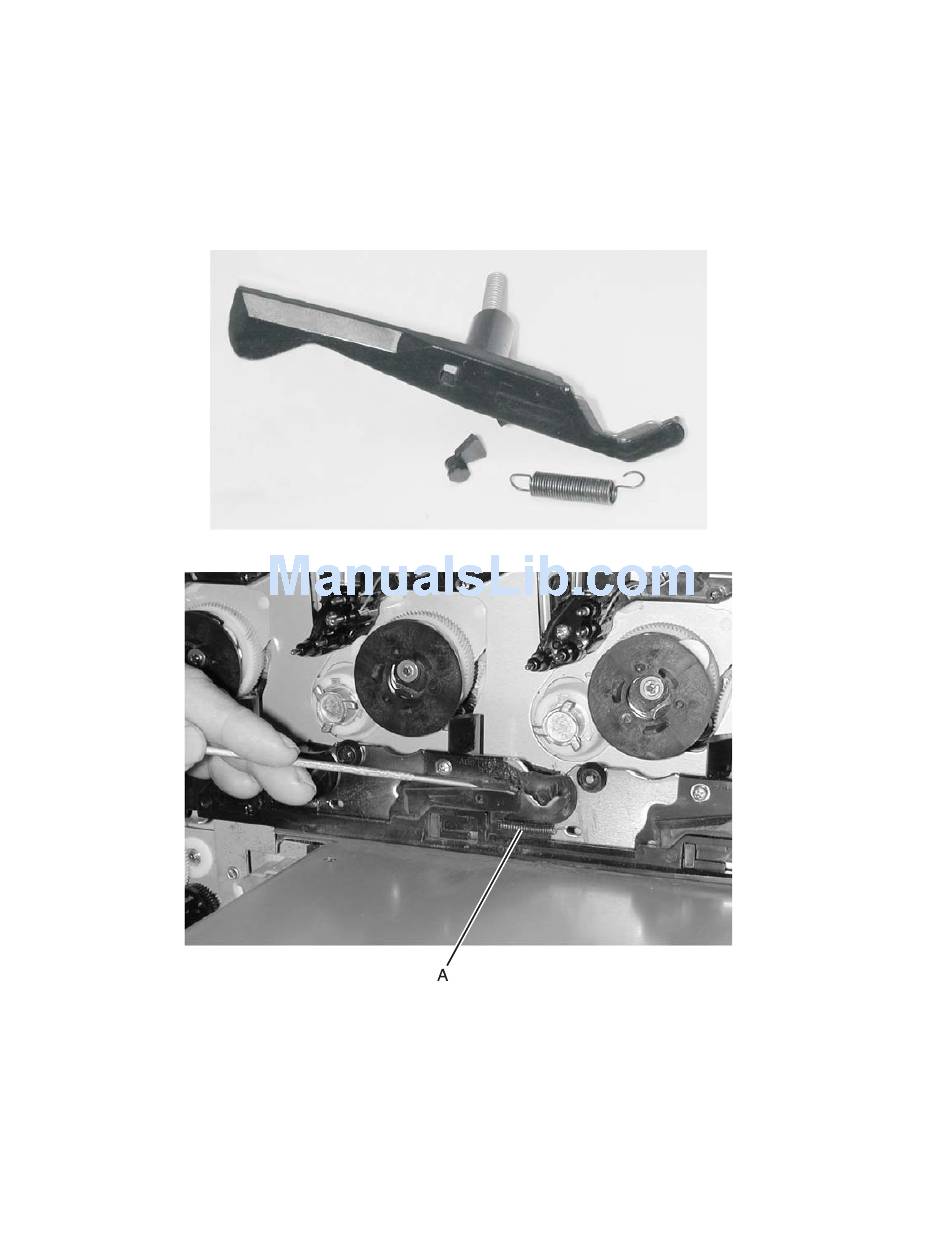

Remove the spring (A).
4-80
Service Manual
for the part numbers for the parts packet, including the rear transfer bellcranks, for yellow, cyan,
"ITU assembly removal" on page 4-49.
