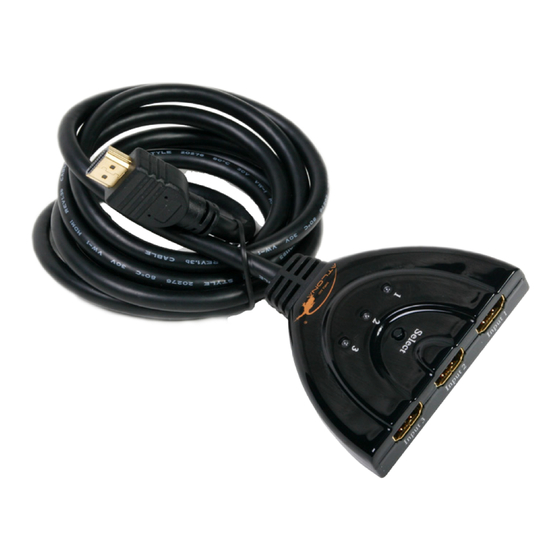

3x1 hdmi auto switch with 6ft hdmi cable pigtail
Hide thumbs

Advertisement

Table of Contents

AtlonA
3x1 HDMI Auto Switch with 6ft HDMI
Cable Pigtail
AT-HAD-V31
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HAD-V31 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-HAD-V31

Summary of Contents for Atlona AT-HAD-V31

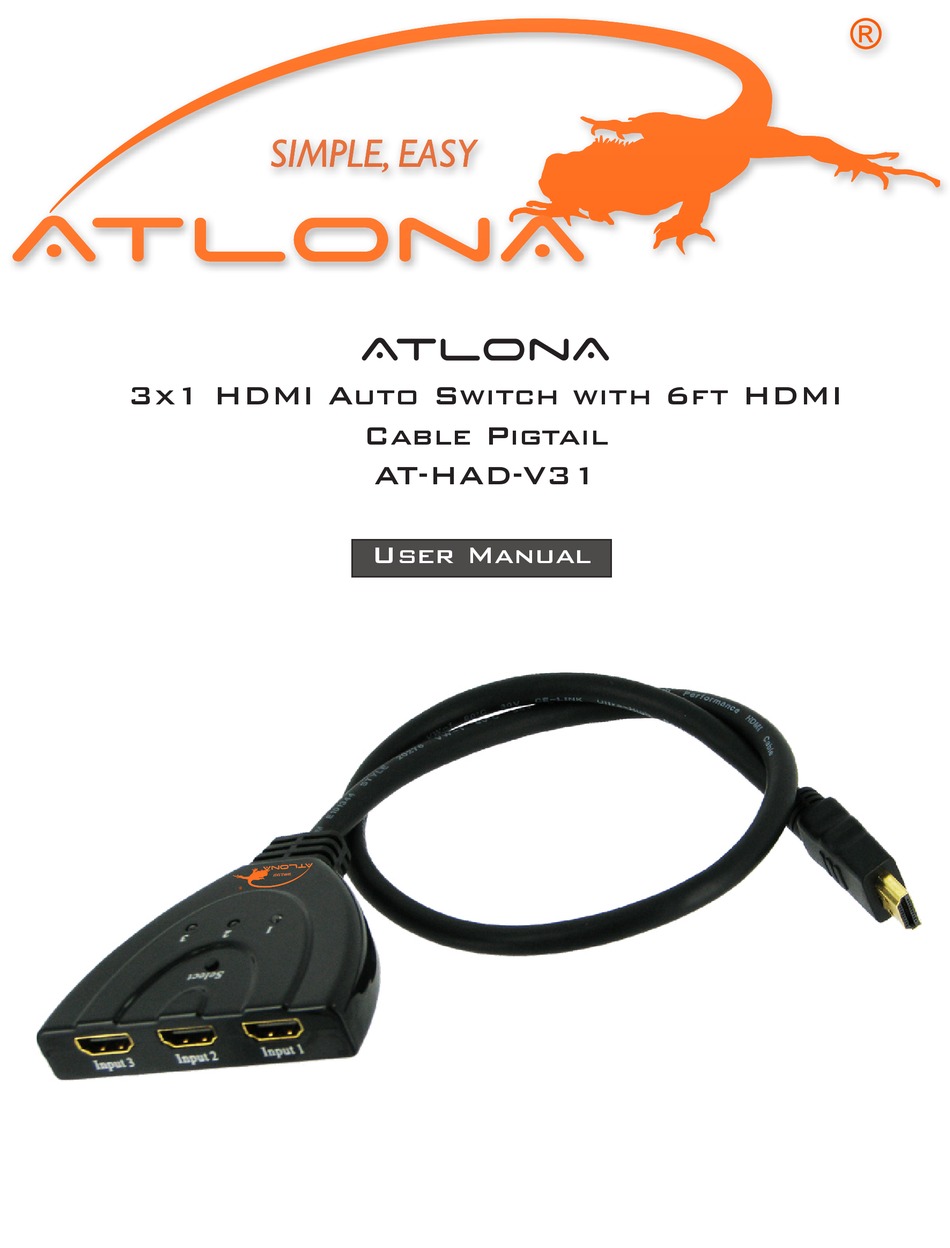

  • Page 1 AtlonA 3x1 HDMI Auto Switch with 6ft HDMI Cable Pigtail AT-HAD-V31 User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..........2. Specifications ..........3. Package Contents ..........4. Panel Descriptions ..........5. Connection and Operation ..........6. Safety Information ..........7. Warranty ..........

  • Page 3: Introduction

    Note: When the source devises are on stand-by mode, power supply should be turned off, otherwise this switcher will not meet intelligent function. 1.2 FEATURES Atlona’s 3X1 HDMI Switcher has many features that enable it to perform in a superior manner. Among those features: • Support with HDMI1.3b •...

  • Page 4: Specifications

    2 SPECIFICATIONS Signal Inputs/Output Input Video Signal 0.5-1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) Maximum Single Link Range 1920X1200, 1080P Output Video HDMI 1.3b + HDCP 1.0/1.1 Video format supported DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P Digital Signal I/O HDMI Compliance HDMI 1.3b Operating Frequency Video Amplifier Bandwidth...

  • Page 5: Panel Descriptions

    4 PANEL DESCRIPTIONS 5 CONNECTION AND OPERATION 1) Connect the HDMI input sources into Atlona’s 3X1 switcher. (Input cables are optional) *Please refer to connection diagram section. 2) Connect the fixed HDMI cable (pigtail) to display. 3) Press the “select” button to select input sources.

  • Page 6: Safety Information

    Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features.

  • Page 7: Warranty

    Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
