PIPE INSTALLATIONS

ARITERM SWEDEN AB • ARITERM OY

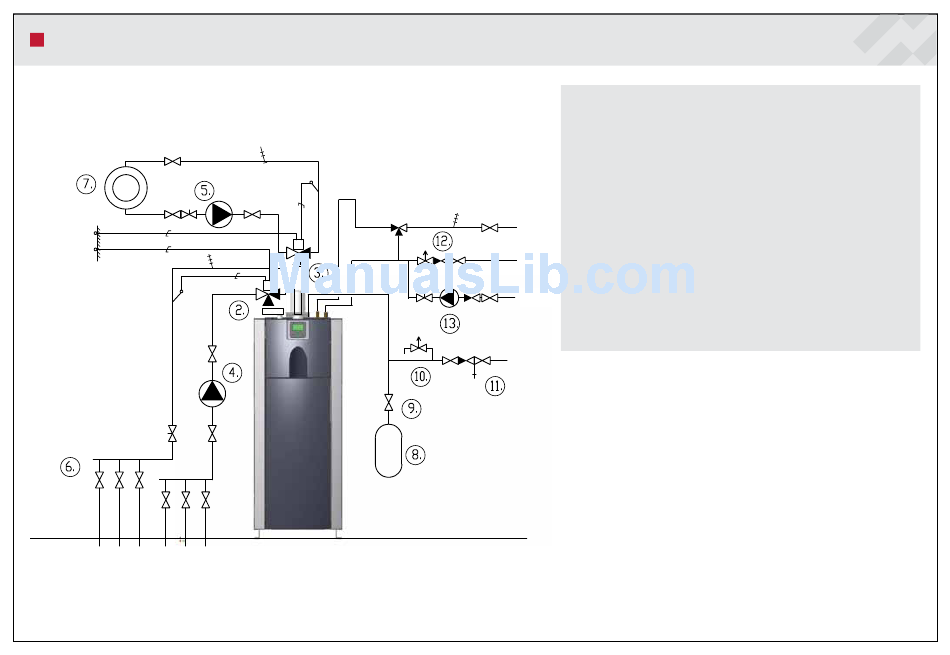

1. ARITERM BIOMATIC+
2. 4-WAY VALVE, FLOOR HEATING (RADIATOR HEATING)
3. CONNECTION SET OF THE ADDITIONAL HEATING CIRCUIT
(RADIATOR HEATING)
4. HEAT PIPE PUMP, FLOOR HEATING
5. HEAT PIPE PUMP, RADIATOR HEATING
6. FLOOR HEATING NETWORK MANIFOLDS
7. RADIATOR HEATING NETWORK
VW
8. EXPANSION VESSEL
9. SERVICE SHUT-OFF VALVE
CW
10. SAFETY VALVE
11. FILLING VALVE
DW
12. FEED MIXING VALVE
13. DOMESTIC WATER CIRCULATION PUMP
