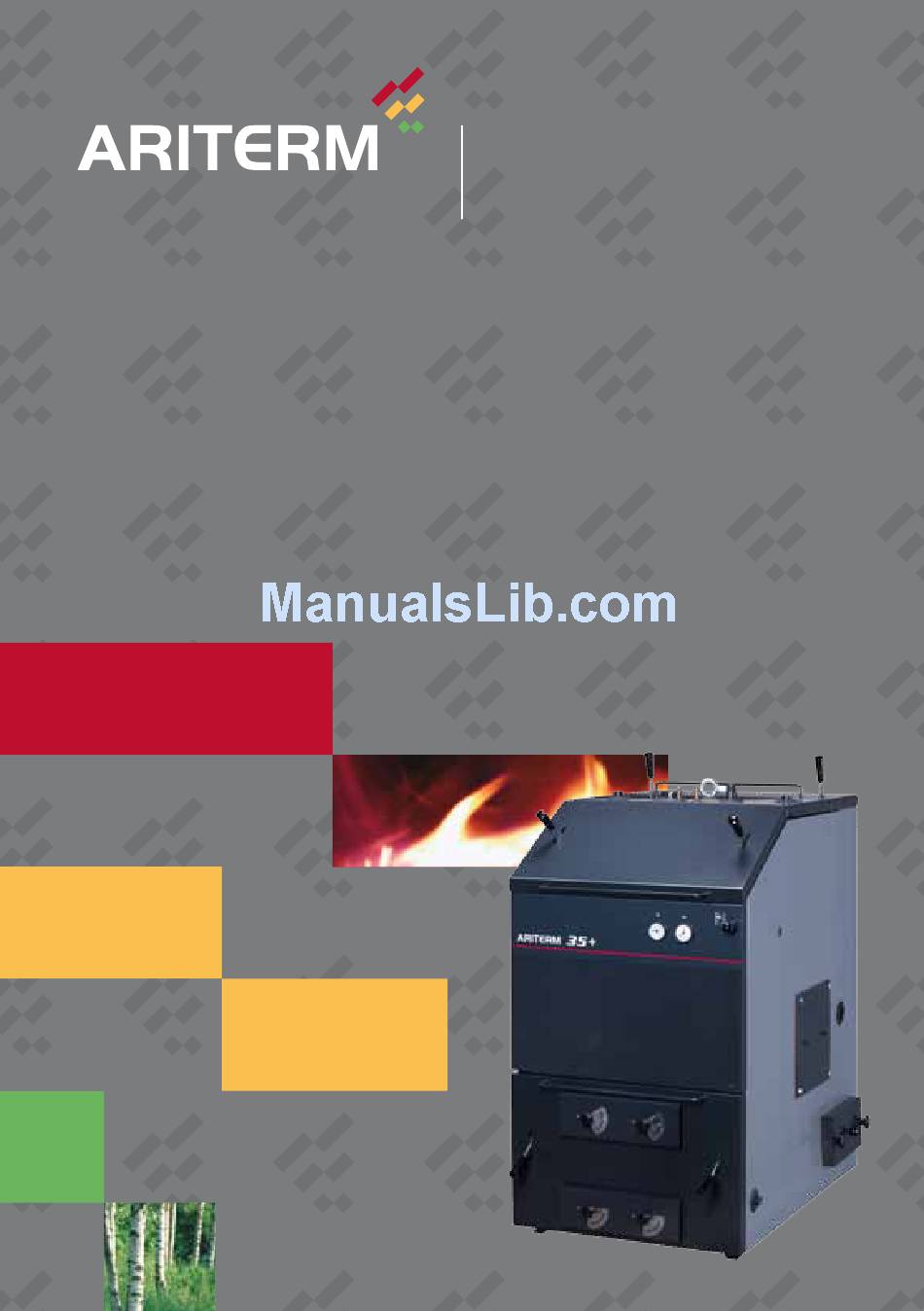

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS • Ariterm 35+...
-
Page 2: Table Of Contents
CONTENTS General ......................2 Installation ....................4-5 Installation of temperature limit valve ............6 Measurements and connections ..............7 Technical specifications and boiler cross-section ........8 Operating principle ..................9 Installation of grate and ceramic parts ..........10-12 Operation....................13 Heating ....................14-15 Service and maintenance ................16 Use of alternative fuels ................17 Warranty and removal from use ...............18... -
Page 3: General
GENERAL The Ariterm 35+ is an economic, durable and environmentally-friendly, bottom fire, wood- burning central heating boiler. Heating is periodic and based on storing energy in the warm water accumulator tank. Usually this boiler is used for heating detached houses, farm buildings, etc. -
Page 4: Installation
This opening must never be covered. Plumbing connections Ariterm 35+ is intended for use with an accumulator tank. Before installation of the boiler, the heating system must be flushed and a water pressure test carried out. The tightness of the con- nections must be ensured before installation. - Page 5 The life expectancy of the boiler will also be increased, because corrosive acids will not be created on the heating surfaces. Part Name Ariterm 35+ boiler Connection to boiler top 3-way valve, underfloor heating Ball check valve 1 ¼” IG...
-
Page 6: Installation Of Temperature Limit Valve
The Ariterm 35+ boiler includes a cooling spiral. We recommend the SYR 3065 temperature limit valve for this boiler. This does not, ho- wever, replace other safety devices such as a safety vent. -
Page 7: Measurements And Connections
DIMENSIONS AND CONNECTIONS Part Name Unit Part Name Unit Turning plate adjustor Fixed hatch for afterburning chamber (hinged service hatch an option) Water pressure gauge Water thermometer Safety valve connection DN 20 Combustion gas thermometer Water accumulator outlet DN 50 Firebox hatch Water accumulator return DN 50... -
Page 8: Technical Specifications And Boiler Cross-Section
TECHNICAL SPECIFICATIONS / BOILER CROSS-SEC TION TECHNICAL SPECIFICATIONS Performance values: Power 20 - 40 kW Width 800 mm Depth 1109 mm Height 1300 mm Weight empty 690 kg Measurement data: Water capacity 150 L Storage chamber volume 120 L Burning time 37 kg / 3 h Size of refill opening 550x350 mm... -
Page 9: Operating Principle
OPERATING PRINCIPLE The Ariterm 35+ boiler is meant for use at full power, then complete gasification of the wood will take place and the combustion will be clean. The amount of energy available from the boiler to the accumulator will be optimal and the need for cleaning small. The boiler will also last lon- ger with proper burning. -
Page 10: Installation Of Grate And Ceramic Parts
INSTALLATION OF THE GRATE AND CERAMIC COMPO- NENTS It is advisable to carry our installation with the assistance of somebody else. Clean the boiler well and carefully remove any pitch that may have accumulated, so that the parts will fit into place. - Page 11 INSTALLATION OF THE GRATE AND CERAMIC COMPO- NENTS 3. Lower part of front brick 4. Lower part of rear brick 5. Upper part of rear brick 5. Upper part of rear brick 6. Upper part of front brick. The upper parts 6.
- Page 12 INSTALLATION OF THE GRATE AND CERAMIC COMPO- NENTS 6. Upper part of front brick. 7. Upper parts of side brick (2 pcs) (pay atten- tion to left-or right-handedness). Remove the temporary support then installation is complete. Installation of base bricks...
-
Page 13: Operation
OPERATION Introduction into use Before running the boiler, check the following: • the heating system and boiler are full of water, pressure at least 0.5 bar • the heat supply pump is on • the system valves are open • the combustion air opening is open •... -
Page 14: Heating
HEATING Lighting the boiler Current regulations on limiting emissions resulting from wood burning have set major challen- ges on the development of combustion technology. As a result of the development, wood-bur- ning boilers have become increasingly efficient and less and less firewood is required for heating. These changes make the boilers more difficult to operate by natural means. - Page 15 HEATING Primary air hatch to pos 5 Secondary air hatch to pos 3 Refilling Refilling is recommended when the storage chamber is about 1/3 full of wood. Put the turning plate in the ignition position. Slowly open the refill hatch, which will release the burning gases from the storage chamber. Fill the storage chamber.
-
Page 16: Service And Maintenance
SERVICE AND MAINTENANCE Cleaning Before cleaning the boiler, it is advisable first to heat it, preferably with softwood, in order to make it easier to remove soot. Clean the boiler’ s convection section 2-4 times per month and whenever required. Once the fire has gone out but the boiler is still hot, open the cleaning hatch on top and brush/scrape it clean. -
Page 17: Use Of Alternative Fuels
Pellet use Ariterm 35+ is compatible with an KMP PX22 pellet burner. Replace the stoking hatch with a hatch with an PX22 pellet stoker. If you use a pellet burner, close primary and secondary air vents. Specified instructions on the installation and use of the pellet burner come with the bur-... -
Page 18: Warranty And Removal From Use
WARRANTY AND REMOVAL FROM USE Warranty For Warranty Issues Ariterm Sweden AB refers to our local Distributor. Removal from use A boiler that has reached the end of its life can be used for scrap. MOST COMMON SPARE PARTS Part number... -
Page 19: Declaration Of Conformity
DECLARATION OF COMFORMITY... -
Page 20: Notes
NOTES... - Page 21 NOTES...
- Page 22 NOTES...
- Page 23 NOTES...
- Page 24 ORGANISATION CERTIFIED BY ARITERM SWEDEN AB Flottiljvägen 15 39241 Kalmar www.ariterm.se 0771-442850...
