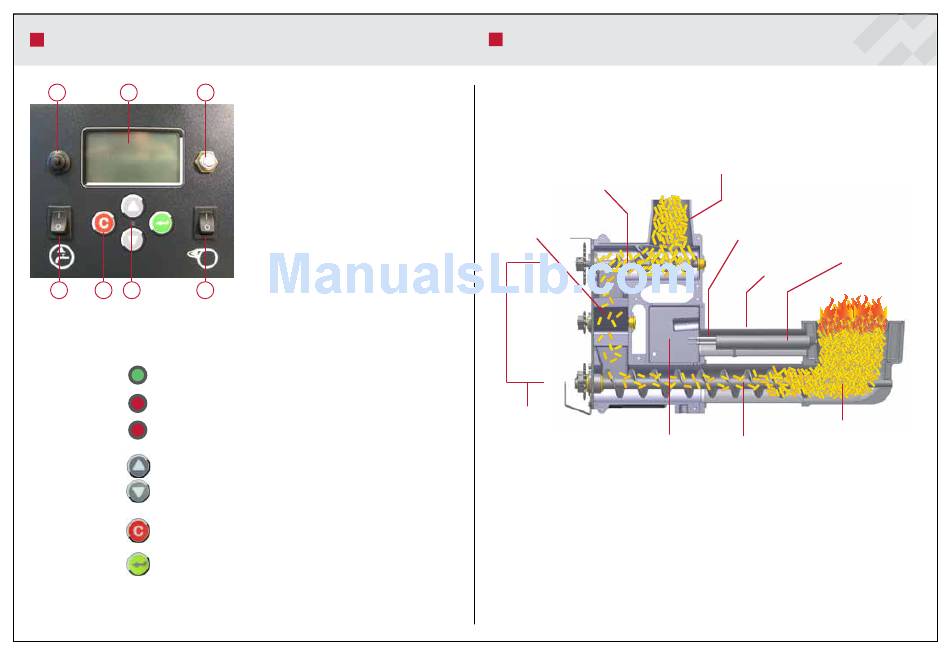

CONTROL PANEL

2 3 4
Temperature
Boiler 80(80)°C
Flue gas -40°C
Burner off (on)
Auger, external
Manual operation off
1 7 6 5
Green: The burner is on
Red:
Alarm (the burner is off)
Blinking light: Warning light (do not turn the burner off)
Arrow keys: browsing menus / changing set values.
C button: exiting menus / acknowledging warnings
Enter button: selecting settings / accepting set values.
1. Inner circulation pump switch
2. Inner circulation pump fuse
3. Display
4. Over heating sensor
5. Main switch
6. Operation and alarm indication by
means of an indicator light
7. Operation button
ARITERM SWEDEN AB • ARITERM OY

BURNER OPERATING PRINCIPLE

Dispening auger
Blocking feeder
Safety zone
against fire
in the back Blower
• Asennus ja käyttöohje • Installation och driftanvisning • Installation and operating instruction • 19.11.2009 • 5/32
Upper connection
Ignition resistance
Ignition pipe
Primary air pipe
Pellets are fed
Auger Burner to the burner head from
below
(underfeeding principle)
