1-10 Product Features

Side View Components

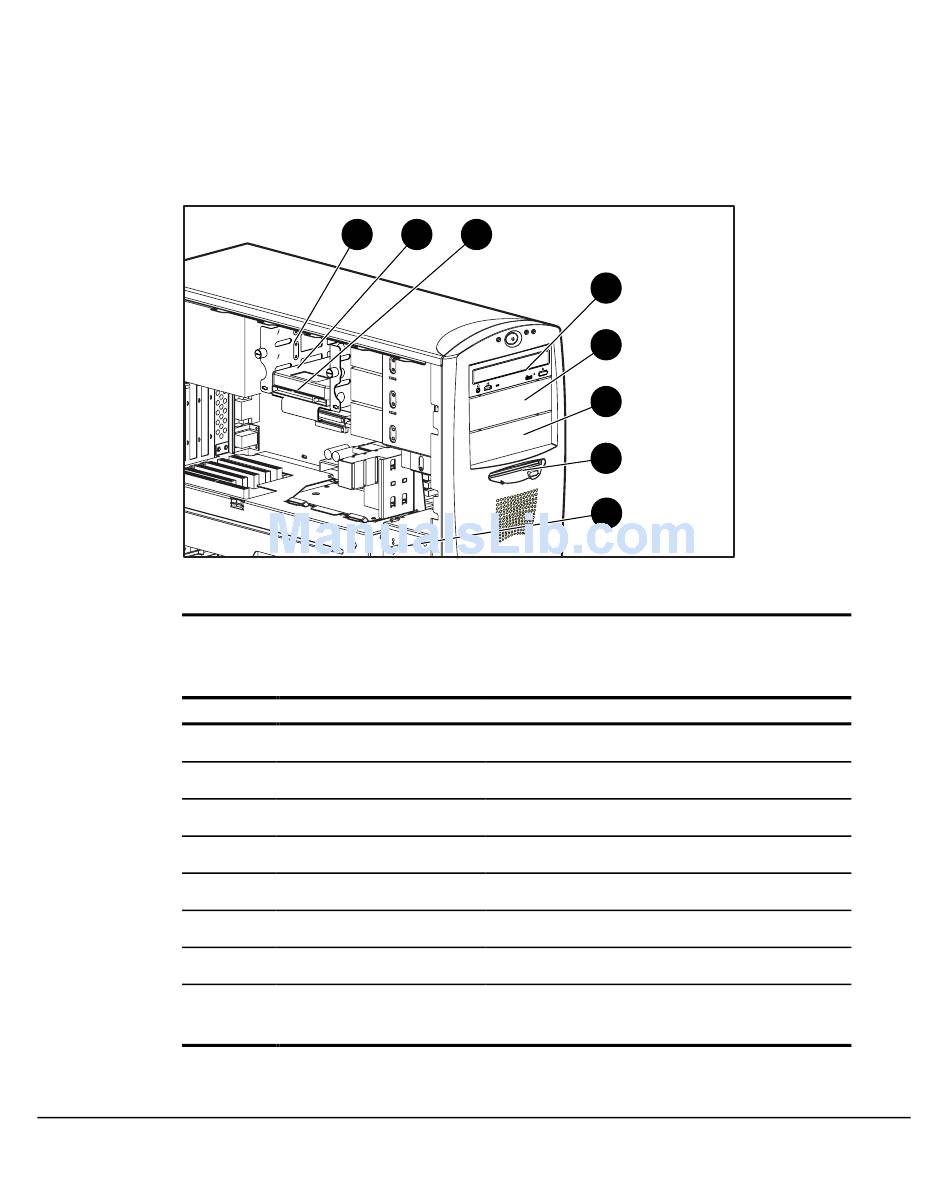

Figure 1-4 identifies the components from the side view of the workstation and
with the side access panel removed. Refer to the corresponding table for a
description of each component.
Figure 1-4.
3
Identifying components from side view
Ref. Component
1 Bay 1
2 Bay 2
3 Bay 3
4 Bay 4 - CD-ROM drive
5 Bay 5
6 Bay 6
7 Bay 7 -diskette drive
8 Air plenum (cooling
chamber)
2 1
COM PACT
Table 1-4
Side View Components
3.5-inch drive. Part of removable hard drive cage.
3.5-inch drive. Part of removable hard drive cage.
3.5-inch drive. Part of removable hard drive cage.
5.25-inch, half-height drive bay
5.25-inch, half-height drive bay
5.25-inch, half-height drive bay
3.5-inch, third-height drive bay
Fan provides cooling for internal components
4
5
6
7
8
Description
