9-2 Expansion Boards
Identifying the PCI and ISA
Expansion Slots
Your workstation contains eight expansion board slots on the expansion board
assembly: five PCI expansion slots, one shared PCI/ISA expansion slot, and
two ISA expansion slots. The following figure identifies the physical locations.
See Table 9-1 for component names.

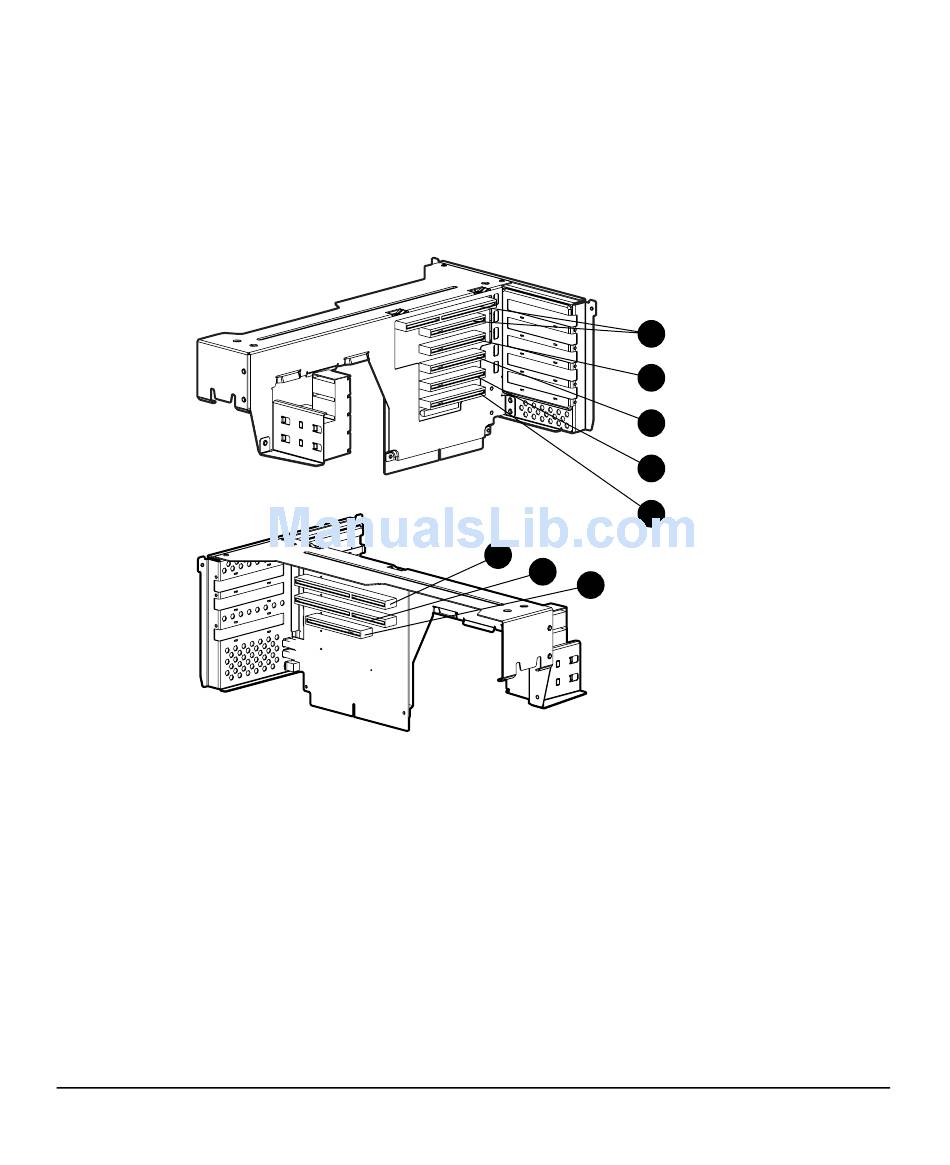

Figure 9-1. Identifying the expansion slots
1
2
3
4
5
6
7
8
