GRAPHTEC SK200-09 Service Manual page 71

Reattaching the data controller board
(1) Reattach the data controller board in the reverse order in which it was detached.
(2) Perform the software adjustment to input the former setting values or use the software to adjust the
scanner. (See "Preparations before Making Adjustments" in Section 9.2)
Checkpoint
When replacing the data controller board, perform the software adjustment to obtain the former setting values from
the data controller board. (See "Preparations before Making Adjustments" in Section 9.2)
How to find out type of the data controller board
There are two kinds of the data controller boards, which is used to SK200-09 or SK200-09-A.
So prepare corresponded data controller board before replacing the data controller board.
The model name label is showing the type of the data controller board.
If the model name is SK200-09 use the old type of the data controller board.
If the model name is SK200-09-A use the new type of the data controller board.
SK200-UM-251-9370
8. DISASSEMBLING AND ADJUSTING THE MECHANICAL PARTS

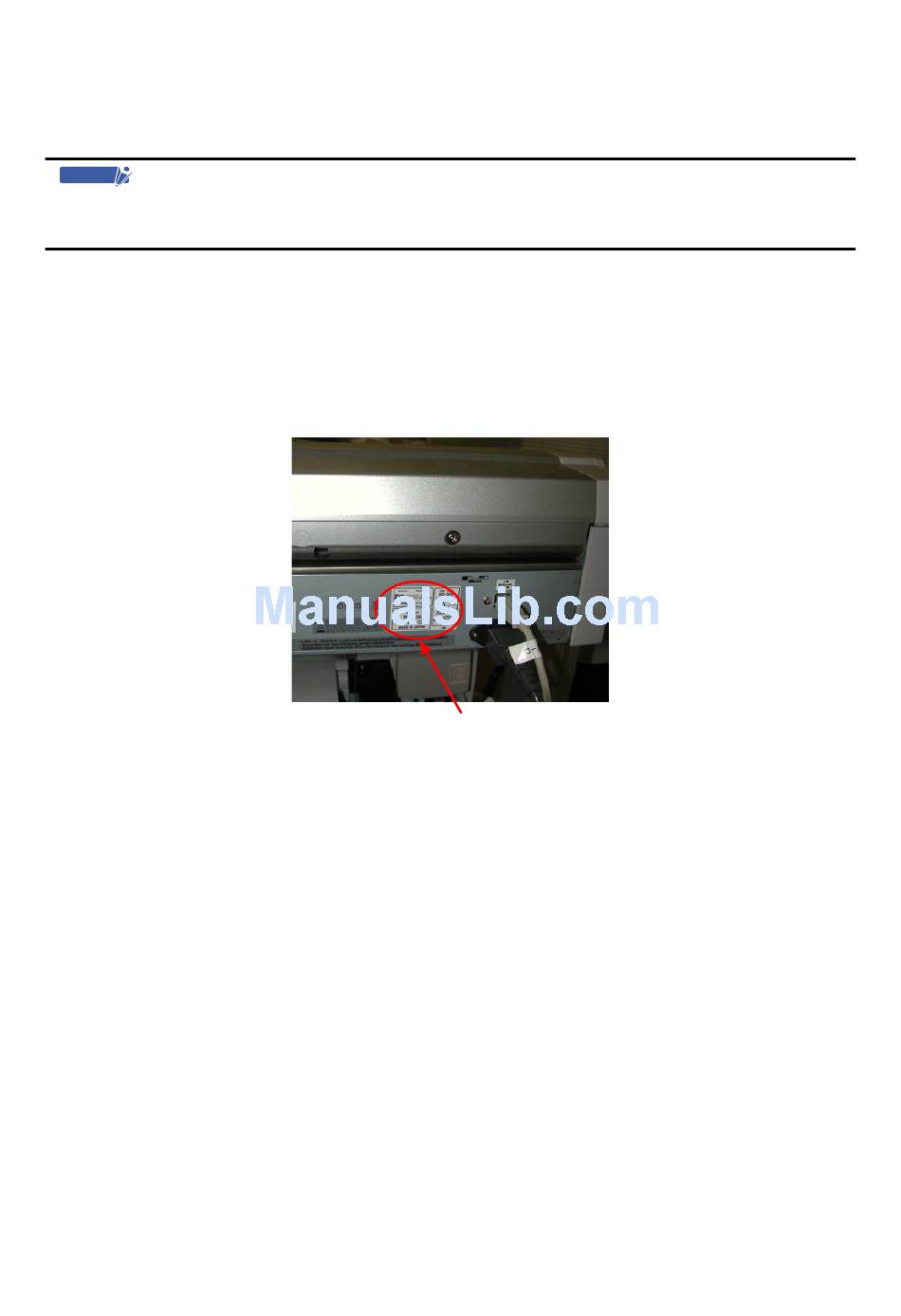

Confirm this label to find out the type of board.
8-29
