Installation Instructions

NOTE: Getting the unit to fit perfectly into your dash is probably the most
difficult portion of the install. Patience and persistence is the key. If you still
have problems, please contact us at support@retrosound.com or
702-483-2222
The InfiniMount system offers nearly unlimited installation options to accom-
modate your fit needs.
To begin, locate the removable InfiniMount shaft system and the InfiniMount
"L" brackets, as well as two each large and small washers (see "What's in the
Box" on page 5). For more advanced installations, please visit our website:
retrosoundusa.com or email support@retrosound.com.
STEP 1: Install InfiniMount Brackets
Attach each InfiniMount bracket using the supplied screws. Before tightening,
adjust the brackets forward or backward, or rotate to achieve the perfect fit.
Complete the assembly with 2 or 4 screws tightened on either side.

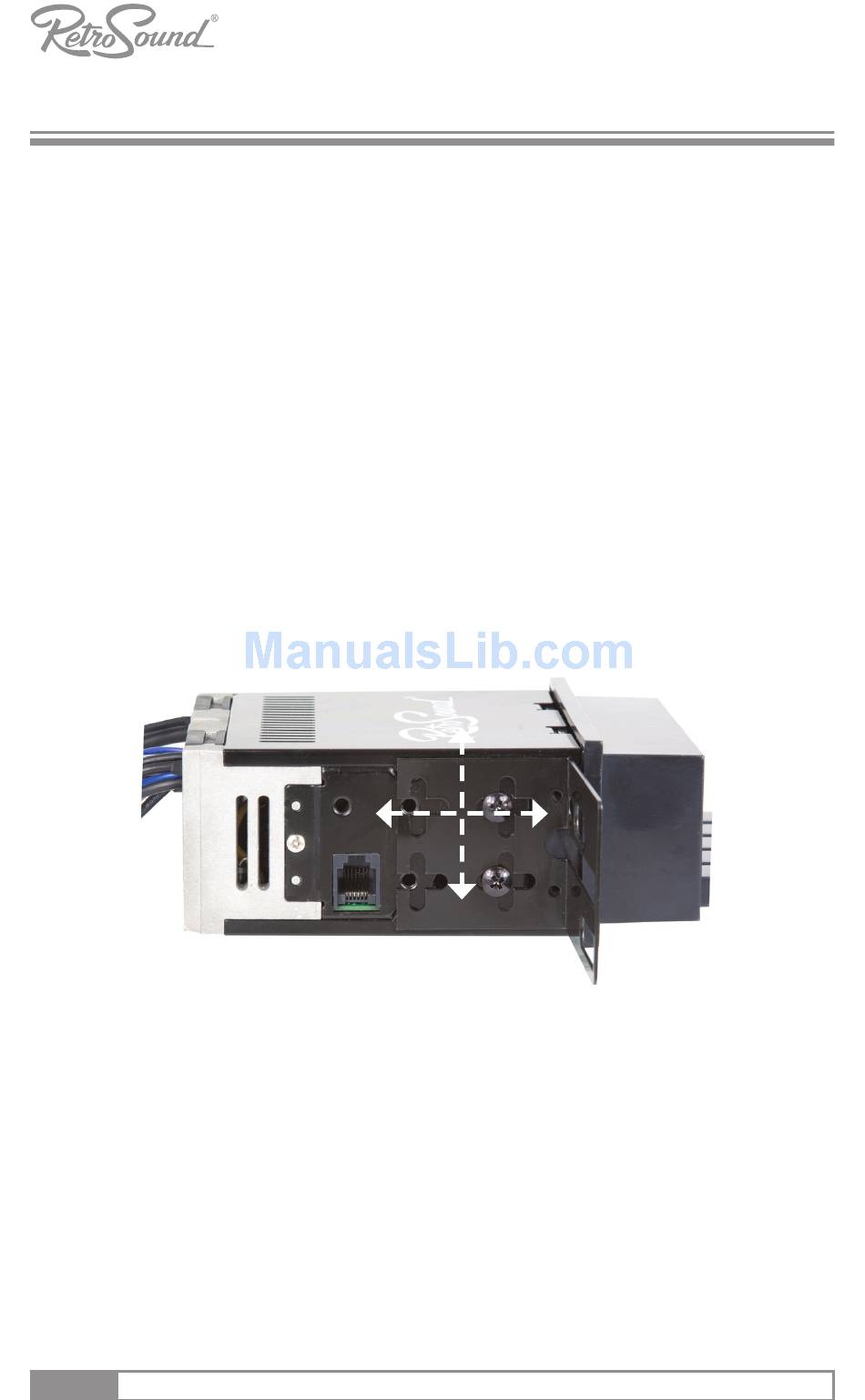

Figure 1 - Attach InfiniMount Brackets
NOTE: You can move our brackets forward or backward and move them in
any direction. You can even cut, trim or bend the bracket or create your own
bracket for a more challenging installation. For more advanced installations,
please visit our website: www.retrosoundusa.com or email support@
retrosound.com.
