Model Two Owner's Manual
STEP 2: Mount Shafts to Brackets
1. To match the InfiniMount shaft and bracket system to the proper shaft
width of your vehicle, first measure the distance between your existing
shaft holes from center to center.
2. Mount a shaft system to each bracket using the supplied shaft nuts, metal
and plastic washers.
3. Finger tighten to prepare for the final installation (see Figure 2).
4. Once sure of the proper width, tighten prior to final installation. Be sure to
plug the shafts into each side of the main unit to activate the shaft-control
functions (see Figure 3). NOTE: Each of the shafts can operate on either
side of the radio and are not left/right dependant.
NOTE: Modifying or cutting the radio's brackets will not void your warranty.
The system is designed to accommodate any installation scenario.
STEP 3: Complete Wiring Connections
See "Wiring Instructions" on page 15
Copyright 2014 © Retro Manufacturing, LLC
Use supplied
washers and nuts
to place shafts
onto brackets.
Important: DO NOT
overtighten.

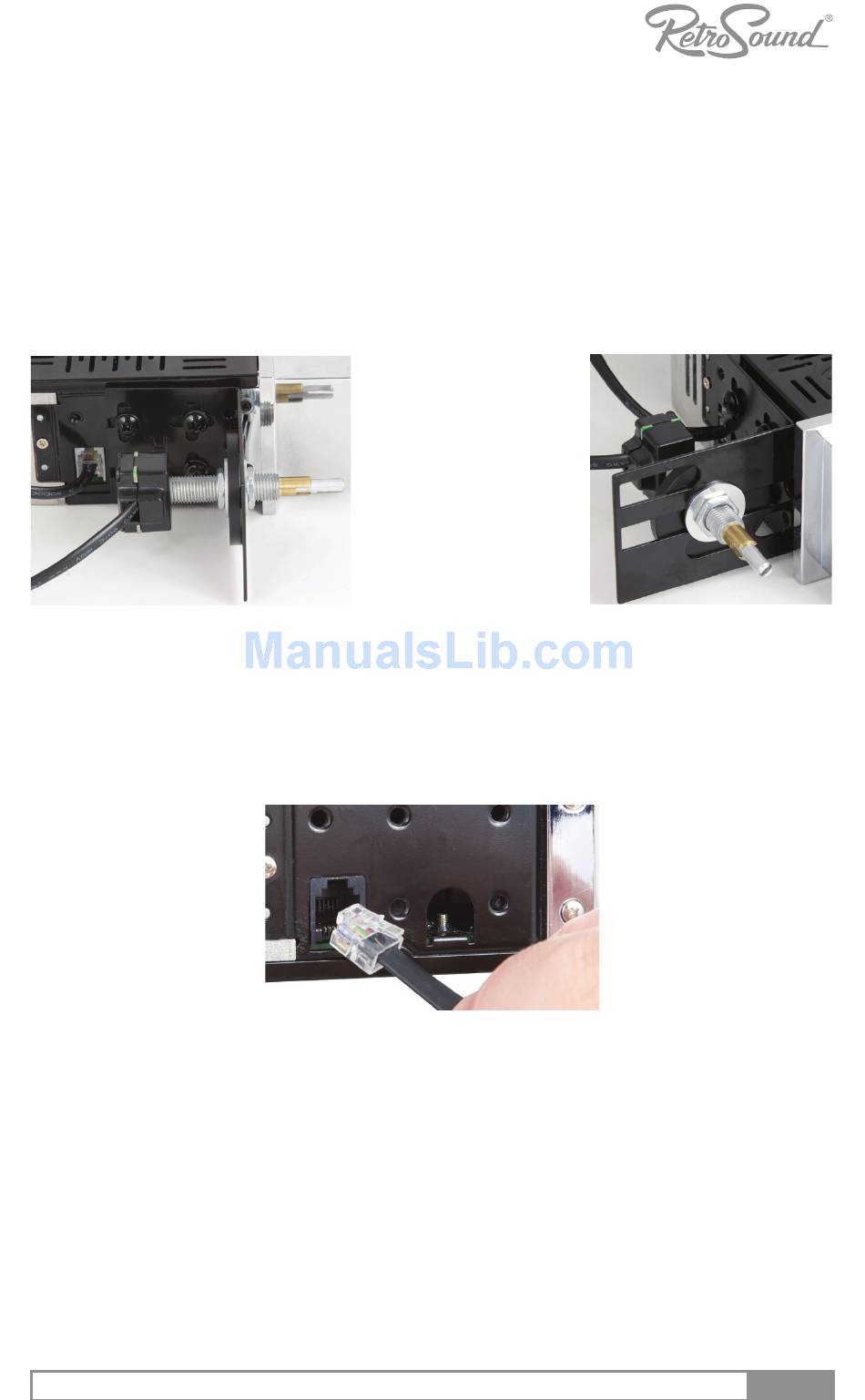

Figure 2 - Mount Shaft to Bracket
Figure 3 - Insert Shaft Plugs
Page 11
