INSTALLATION INSTRUCTIONS

STEP 1: Install the Radio Face
Plug the ribbon cable (included with the Motor) into the front
of the Motor radio body and the back of the radio face. After
doing this, attach the radio face to the front of the radio body
using the four radio face mounting screws provided in the
radio face box.
The RetroSound logo on the Motor radio body should be facing
®
upwards. Make sure to not install the face to the body upside down.
NOTE: Optionally, the radio face can be mounted remotely up to nine feet away
from the Motor radio body using an optional Face to Body Extension Cable (sold
separately). In some installation applications, a bracket (not included) can be used
to mount the radio face to the radio body at an angle.
Radio Body
Face Mounting
Screws
Radio Face

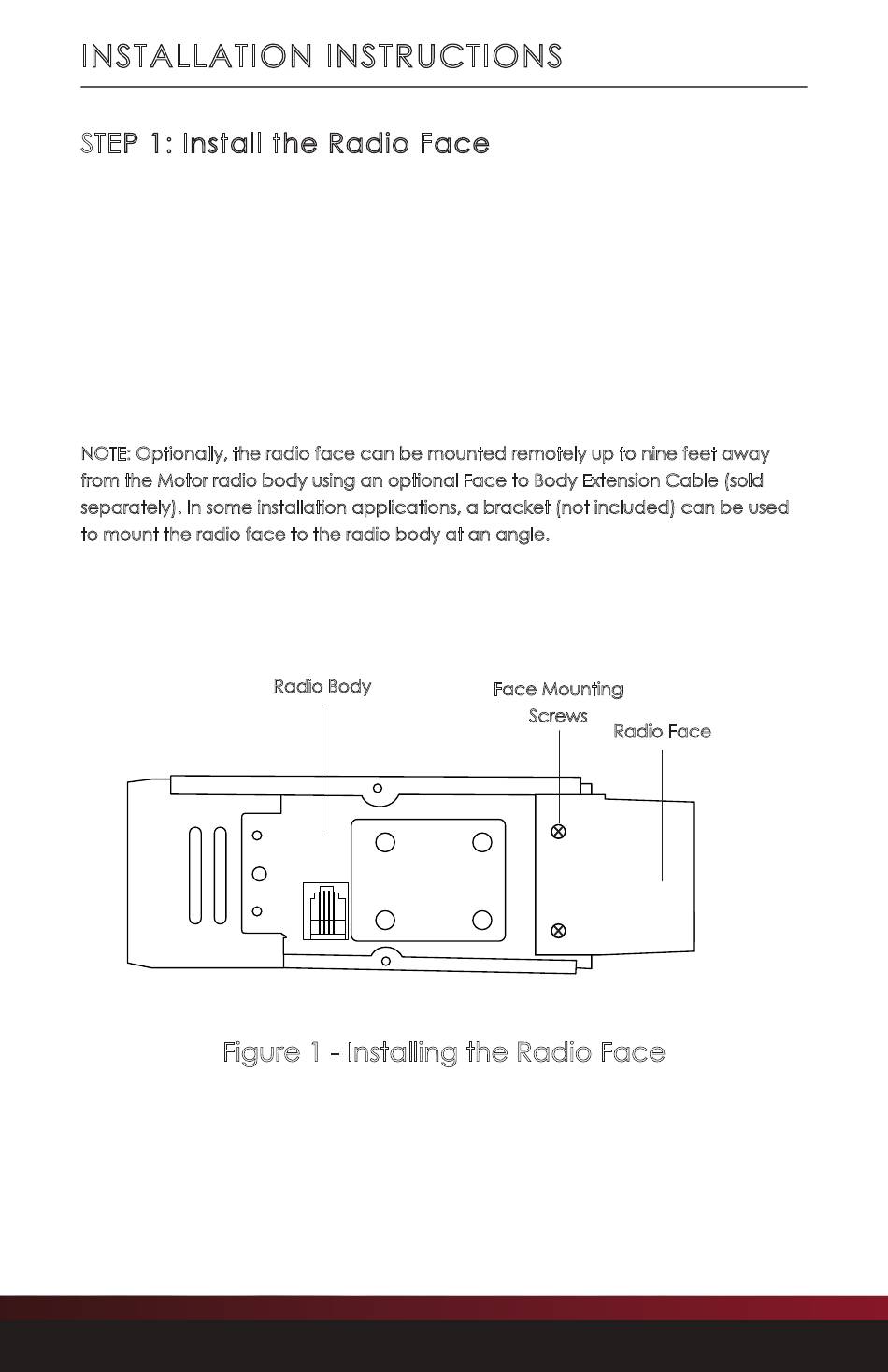

Figure 1 - Installing the Radio Face
