INSTALLATION INSTRUCTIONS

STEP 1: Install the Radio Face
Plug the ribbon cable included with the Motor radio body into
the radio face. After plugging in the radio face, attach it to the
radio body (if it is not already attached) and tighten with the
four radio face mounting screws provided in the radio face box.
The RetroSound logo on the Motor radio body should be facing
®
upwards. Take care to not install the face to the body upside down.
NOTE: Optionally, the radio face can be mounted remotely up to nine feet away
from the Motor radio body using an optional Face to Body Extension Cable (sold
separately). In some installation applications, a bracket (not included) can be used
to mount the radio face to the radio body at an angle.
Face Mounting
Screws
Radio Face

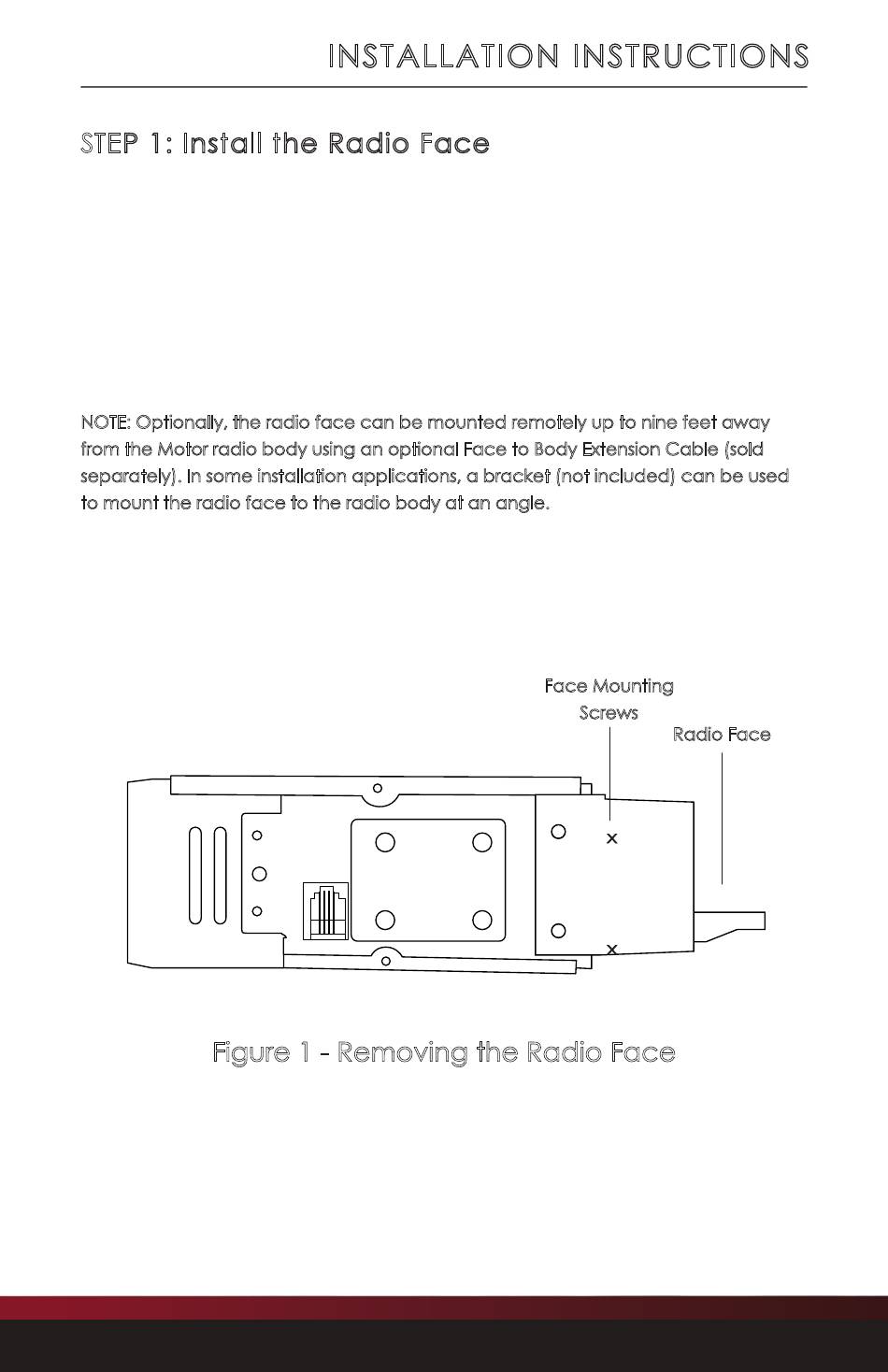

Figure 1 - Removing the Radio Face
