4. Functions

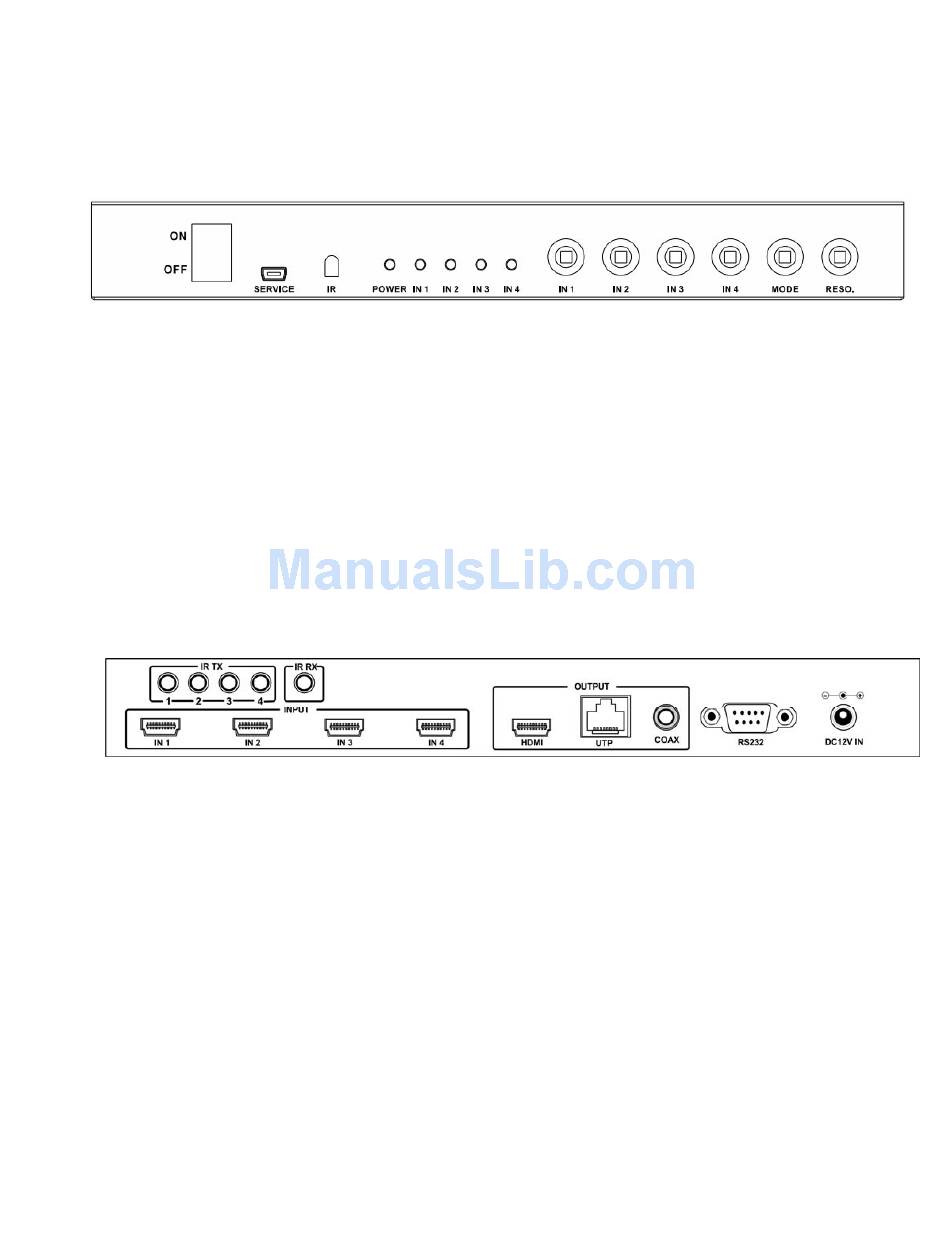

4.1 Front panel

1. ON/OFF: Power ON/OFF switch.
2. SERVICE: For factory use only.
3. IR : Remote control receiver window.
4. POWER LED: This red LED illuminates when the device is connected with power supply.
5. IN1,2,3,4 LED: These red LEDs illuminate when the output is switched to the
corresponding input.
6. INPUT BUTTON: Press this button to select the input source.
7. MODE BUTTON: Press this button to select the multi-view display mode.
See the detail description in Chapter 5.2.
8. RESO BUTTON: Press this button to select the HDMI output resolution.

4.2 Rear panel

1. INPUT: Connect the HDMI source outputs from DVD, PS3, Set-top Box and Note Book.
2. OUTPUT: HDMI for connecting the HDTV or monitor with HDMI cable for
input source display.
UTP port for connecting to CATx Receiver by CATx cable for
signal extension.
Coax for connection to an amplifier with coaxial cable.
3. IR RX: Connect to the IR Receiver for IR signal reception. Ensure that remote control
being used is within the direct line-of-sight of the IR receiver.
4. IR TX: Connect the IR Blaster cable included in the package for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be controlled.
5. RS232: Connect the RS232 port to the PC or notebook using RS232 Cable (provided).
6. DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor to AC wall
outlet.
