Page 2
Related Documentation • Quick Start Guide The Quick Start Guide shows how to connect the LTE3301 and access the Web Configurator wizards. It contains information on setting up your network and configuring for Internet access. LTE3301 Series User’s Guide...
2.3 The Main Screen ..........................18 2.3.1 Title Bar ...........................19 2.3.2 Navigation Panel ........................19 2.4 Status Screen ............................21 Chapter 3 Setup Wizard ............................25 3.1 Overview ............................25 3.2 Accessing the Wizard ........................25 3.3 Wizard Setup .............................25 Chapter 4 Tutorials ...............................30 LTE3301 Series User’s Guide...
Page 5
Chapter 7 Wireless LAN............................61 7.1 Overview ............................61 7.1.1 What You Can Do ........................62 7.1.2 What You Should Know ......................62 7.2 General Wireless LAN Screen ......................64 7.3 Wireless Security ..........................66 7.3.1 No Security ..........................66 7.3.2 WEP Encryption ........................67 LTE3301 Series User’s Guide...
Page 6
10.6 Technical Reference ........................94 10.6.1 NATPort Forwarding: Services and Port Numbers ..............94 10.6.2 NAT Port Forwarding Example ....................95 10.6.3 Trigger Port Forwarding ......................95 10.6.4 Trigger Port Forwarding Example ..................95 10.6.5 Two Points To Remember About Trigger Ports ..............96 LTE3301 Series User’s Guide...
Page 7
16.2 IPv6 Firewall Screen ........................112 Chapter 17 Bandwidth Management........................114 17.1 Overview ............................114 17.2 What You Can Do ......................... 114 17.3 What You Need To Know ......................115 17.4 General Screen ..........................115 17.5 Advanced Screen ......................... 116 LTE3301 Series User’s Guide...
Page 8
21.4 Internet Access ..........................136 21.5 Wireless Connections ........................137 21.6 Getting More Troubleshooting Help ....................138 Appendix A Pop-up Windows, JavaScript and Java Permissions ...........139 Appendix B Setting Up Your Computer’s IP Address ..............148 Appendix C Common Services......................174 LTE3301 Series User’s Guide...
Page 9
Table of Contents Appendix D Legal Information ......................177 Appendix E Customer Support ......................184 Index ..............................190 LTE3301 Series User’s Guide...

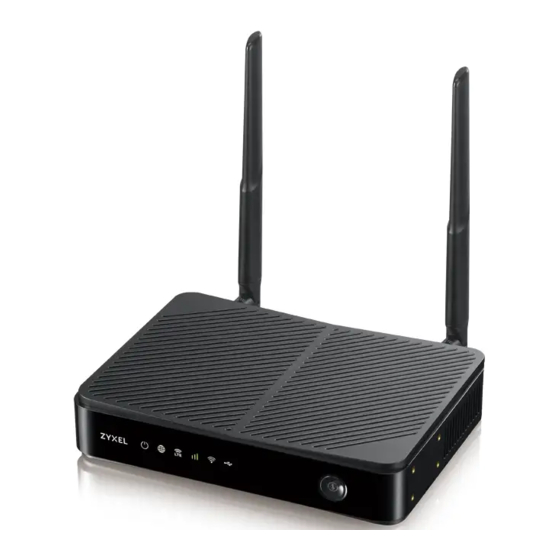

WPS (Wi-Fi Protected Setup) to create an instant network connection with another WPS- compatible device. • Wireless WAN. Insert a 4G SIM card into the SIM card slot to connect to a mobile network for Internet access. LTE3301 Series User’s Guide...
Press the RESET button for longer than ten seconds to set the LTE3301 back to its factory-default configurations. 1.6 The WPS Button Your LTE3301 supports Wi-Fi Protected Setup (WPS), which is an easy way to set up a secure wireless network. WPS is an industry standard specification, defined by the Wi-Fi Alliance. LTE3301 Series User’s Guide...
4G LTE module, just insert a 4G SIM card into the SIM card slot at the back of the LTE3301. Note: You must insert the 4G SIM card into the card slot before turning on the LTE3301. 1.8 LEDs Figure 1 Front Panel WLAN/WPS Power LTE Signal Internet Strength LTE3301 Series User’s Guide...
The LTE3301 is registered and successfully connected to a 2G/ (slow) 3G network. Blinking The LTE3301 Series is looking for an available 4G/3G/2G (fast) network. There is no SIM card inserted, the SIM card is invalid, the PIN code is not correct or there is no service.
Page 15
Make sure the screws are fastened well enough to hold the weight of the LTE3301 with the connection cables. Align the holes on the back of the LTE3301 with the screws on the wall. Hang the LTE3301 on the screws. Figure 2 Wall Mounting Example LTE3301 Series User’s Guide...
Launch your web browser. Type "http://192.168.1.1" as the website address. Your computer must be in the same subnet in order to access this website address. 2.2.1 Login Screen The Web Configurator initially displays the following login screen. LTE3301 Series User’s Guide...
Type "admin" (default) as the user name. Password Type "1234" (default) as the password. Click Login. 2.2.2 Password Screen You should see a screen asking you to change your password (highly recommended) as shown next. Figure 4 Change Password Screen LTE3301 Series User’s Guide...
20 on page 126 to change this). Simply log back into the LTE3301 if this happens. 2.3 The Main Screen The Web Configurator’s main screen is divided into these parts: Figure 5 The Web Configurator’s Main Screen LTE3301 Series User’s Guide...
Click this icon to open a screen where you can click a link to visit the ZyXEL web site to see detailed product information. Logout Click this icon to log out of the Web Configurator. 2.3.2 Navigation Panel Use the sub-menus on the navigation panel to configure LTE3301 features. Figure 7 Navigation Panel LTE3301 Series User’s Guide...
Page 20
Port Trigger Use this screen to change your LTE3301’s port triggering settings. Use this screen to enable or disable SIP (VoIP) ALG (Application Layer Gateway) in the LTE3301. LTE3301 Series User’s Guide...
Use this screen to backup and restore the configuration or reset the factory Restore Restore defaults to your LTE3301. Restart System This screen allows you to reboot the LTE3301 without turning the power Restart off. 2.4 Status Screen Click to open the status screen. LTE3301 Series User’s Guide...
Page 22
Click this icon to see the Status page. The information in this screen depends on the device mode you select. Click this icon to see the Monitor navigation menu. Click this icon to see the Configuration navigation menu. Click this icon to see the Maintenance navigation menu. LTE3301 Series User’s Guide...
Page 23
This column shows the actual data recorded by the LTE3301. System Up Time This is the total time the LTE3301 has been on. Current Date/Time This field displays your LTE3301’s present date and time. System Resource LTE3301 Series User’s Guide...
Page 24
For the LAN ports, this displays the port speed or is left blank when the line is disconnected. For the WAN port, it always displays the maximum transmission rate. For the 2.4GHz WLAN, it displays the maximum transmission rate when the WLAN is enabled and is left blank when the WLAN is disabled. LTE3301 Series User’s Guide...
Click the Wizard icon in the top right corner of the web configurator to open the Wizard screen. Figure 9 Title Bar: Wizard icon 3.3 Wizard Setup The first wizard screen displays showing the main steps in the wizard setup. Click Next to proceed with the time zone setup screen. LTE3301 Series User’s Guide...
Page 26
Detect Again or manually select the time zone of LTE3301’s location and click Next. Figure 11 Wizard: Time Enter your APN (Access Point Name) provided by your service provider. Select the country where the LTE3301 is located and your service provider name. Click Next. LTE3301 Series User’s Guide...
Page 27
The wireless clients which want to associate with this wireless network must have the same wireless security settings. Otherwise, select No Security to allow any client to associate with this network without any data encryption or authentication. Click Next. LTE3301 Series User’s Guide...
Page 28
Use the read-only summary table to check whether what you have configured is correct. Click Apply Settings to save your settings. Otherwise, click Back to go back to the previous screens. Figure 15 Wizard: Summary The system takes about 35 seconds to apply settings. LTE3301 Series User’s Guide...
Page 29
Chapter 3 Setup Wizard Figure 16 Wizard: Apply Settings Click Finish to complete the wizard setup. Figure 17 Wizard: Finish You are now ready to connect wirelessly to your LTE3301 and access the Internet. LTE3301 Series User’s Guide...
In the wireless client utility, find the WPS settings. Enable WPS and press the WPS button (Start or WPS button) Log into LTE3301’s Web Configurator and press the Push Button in the Configuration > Network > Wireless LAN 2.4G > WPS Station screen. LTE3301 Series User’s Guide...
Launch your wireless client’s configuration utility. Go to the WPS settings and select the PIN method to get a PIN number. Enter the PIN number to the PIN field in the Configuration > Network > Wireless LAN > WPS Station screen on the LTE3301. LTE3301 Series User’s Guide...
This example shows you how to configure wireless security settings with the following parameters on your LTE3301 and connect your computer to the LTE3301 wireless network. SSID SSID_Example3 Channel Security WPA2-PSK (Pre-Shared Key: ThisismyWPA-PSKpre-sharedkey) Follow the steps below to configure the wireless settings on your LTE3301. LTE3301 Series User’s Guide...
Page 33
Confirm that the wireless LAN is enabled on the LTE3301. Enter SSID_Example3 as the SSID and select Channel-06 as the channel. Set security mode to WPA2-PSK and enter ThisismyWPA-PSKpre-sharedkey in the Pre-Shared Key field. Click Apply. LTE3301 Series User’s Guide...
Wireless adapters come with software sometimes called a “utility” that you install on your computer. See your wireless adapter’s User’s Guide for information on how to do that. LTE3301 Series User’s Guide...
Page 35
View Available Wireless Networks. The Wireless Network Connection screen displays. Click Refresh network list to view the available wireless APs within range. Select SSID_Example3 and click Connect. Type the security key in the following screen. Click Connect. LTE3301 Series User’s Guide...
Clients can associate only with the SSIDs for which they have the correct security settings. Clients using different SSIDs can access the Internet and the wired network behind the LTE3301 (such as a printer). LTE3301 Series User’s Guide...
“http://192.168.1.1” as the web address in your web browser. Enter “admin” as the user name and “1234” (default) as the password and click Login. Type a new password and retype it to confirm, then click Apply. Otherwise, click Ignore. LTE3301 Series User’s Guide...
Page 38
Click Apply. Click the Edit icon of the second entry to configure wireless and security settings for SSID_VoIP. 10 Configure the screen as follows. You do not enable Intra-BSS Traffic for SSID_VoIP. Click Apply. LTE3301 Series User’s Guide...
Page 39
11 Click the Edit icon of the third entry to configure wireless and security settings for SSID_Guest. 12 Configure the screen as follows. In this example, you enable Intra-BSS Traffic for SSID_Guest to allow wireless clients in the same wireless network to communicate with each other. Click Apply. LTE3301 Series User’s Guide...
Page 40
Chapter 4 Tutorials LTE3301 Series User’s Guide...
SIM card. You can also check the LTE connection status (Section 5.7 on page 46). 5.3 The Log Screen The Web Configurator allows you to look at all of the LTE3301’s logs in one location. LTE3301 Series User’s Guide...
You can configure which logs to display in the View Log screen. Go to the Log Setting screen and select the logs you wish to display. Click Apply to save your settings. Click Cancel to start the screen afresh. Figure 21 Log Settings LTE3301 Series User’s Guide...
Click Monitor > Packet Statistics or the Packet Statistics (Details...) hyperlink in the Status screen. Read-only information here includes port status, packet specific statistics and the "system up time". The Poll Interval(s) field is configurable and is used for refreshing the screen. LTE3301 Series User’s Guide...
Association List. Association means that a wireless client (for example, your network or computer with a wireless network card) has connected successfully to the AP (or wireless router) using the same SSID, channel and security settings. LTE3301 Series User’s Guide...
Figure 25 Monitor > LTE Modem Status The following table describes the labels in this screen. Table 12 Monitor > LTE Modem Status LABEL DESCRIPTION Modem Information Physical Interface This displays the interface used for the mobile data connection. LTE3301 Series User’s Guide...
Page 47
This displays the number for Short Message Service Center (SMSC), which stores, forwards and delivers SMS text message. MSISDN This displays the MSISDN (Mobile Subscriber ISDN) number, a phone number assigned to a mobile subscriber to call a mobile device. LTE3301 Series User’s Guide...
Page 48
This displays the MIMO (Multi-input Multi-output) technology supported by the LTE3301, such as 1T2R (1 Transmit and 2 Receive paths/antennas) or TM1-TM4 (Transmission Mode 4). Support Band List This displays the frequency bands that are supported by the LTE3301. LTE3301 Series User’s Guide...
• Use the Network Scan screen to specify the type of the mobile network to which the LTE3301 is connected and how you want the LTE3301 to connect to an available mobile network (Section 6.5 on page 56). • Use the IPv6 screen to configure the LTE3301’s IPv6 settings (Section 6.6 on page 58). LTE3301 Series User’s Guide...
If your ISP gives you DNS server addresses, manually enter them in the DNS server fields. If your ISP dynamically assigns the DNS server IP addresses (along with the LTE3301’s WAN IP address), set the DNS server fields to get the DNS server address from the ISP. LTE3301 Series User’s Guide...
Page 51
• Any number of consecutive blocks of zeros can be replaced by a double colon. A double colon can only appear once in an IPv6 address. So 2001:0db8:0000:0000:1a2f:0000:0000:0015 can be written as 2001:0db8::1a2f:0000:0000:0015, 2001:0db8:0000:0000:1a2f::0015, 2001:db8::1a2f:0:0:15 or 2001:db8:0:0:1a2f::15. LTE3301 Series User’s Guide...
IPv6 Internet IPv6 in IPv4 IPv4 IPv6 IPv4 IPv4 Internet 6.4 Management WAN The summary table shows you the WAN connection configured on the LTE3301. Click Network > WAN > Management WAN from the Configuration menu. LTE3301 Series User’s Guide...
Click the Edit icon to configure the WAN connection settings. 6.4.1 Management WAN Edit Use this screen to change your LTE3301’s 3G/4G WAN connection settings. Click the Edit icon in the Network > WAN > Management WAN screen. LTE3301 Series User’s Guide...
Page 54
Select Auto-Detection to have the LTE3301 use the inserted SIM card’s default settings to connect to any available mobile network. Select Manual and enter the information provided by your service provider to connect to the service provider’s mobile network. LTE3301 Series User’s Guide...
Page 55
Maximum Idle Time Specify the time in minutes that elapses before the LTE3301 automatically disconnects from the service provider. Enter the MTU (Maximum Transmission Unit) of each data packet, in bytes, that can move through the WAN connection. LTE3301 Series User’s Guide...
It can reduce multicast traffic significantly. 6.5 Network Scan Use this screen to set how you want the LTE3301 to connect to an available mobile network. Click Network > WAN > Network Scan from the Configuration menu. LTE3301 Series User’s Guide...
Page 57
Click Select to have the LTE3301 establish a connection to the selected mobile network. Apply Click Apply to save your changes back to the LTE3301. Cancel Click Cancel to reload the previous configuration for this screen. Refresh Click Refresh to update this screen. LTE3301 Series User’s Guide...
LTE3301's interface(s). The gateway helps forward packets to their destinations. Primary DNS Address Enter the first IPv6 DNS server address assigned by the ISP. Secondary DNS Enter the second IPv6 DNS server address assigned by the ISP. Address LTE3301 Series User’s Guide...
Page 59
If you select Stateful (DHCPv6), specify the range of IPv6 addresses from which Range(Start) the DHCPv6 server assigns to the clients. Enter the smallest value of the last block of the IPv6 addresses which are to be allocated. LTE3301 Series User’s Guide...
Page 60
DHCPv6 server assigns to the clients. Enter the largest value of the last block of the IPv6 addresses which are to be allocated. IPv6 Address Lifetime If you select Stateful (DHCPv6), specify how long (in minutes) the IPv6 addresses remain valid. LTE3301 Series User’s Guide...
The wireless network is the part in the blue circle. In this wireless network, devices A and B are called wireless clients. The wireless clients use the access point (AP) to interact with other devices (such as the printer) or with the Internet. Your LTE3301 is the AP. LTE3301 Series User’s Guide...
SSID to something that is difficult to guess. This type of security is fairly weak, however, because there are ways for unauthorized devices to get the SSID. In addition, unauthorized devices can still see the information that is sent in the wireless network. LTE3301 Series User’s Guide...
Page 63
Some wireless devices, such as scanners, can detect wireless networks but cannot use wireless networks. These kinds of wireless devices might not have MAC addresses. Hexadecimal characters are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F. LTE3301 Series User’s Guide...
Number) in the devices. Then, they connect and set up a secure network by themselves. See how to set up a secure wireless network using WPS in the Section 4.2 on page 7.2 General Wireless LAN Screen Use this screen to configure the SSID and wireless security of the wireless LAN. LTE3301 Series User’s Guide...
Page 65
Select this check box for the LTE3301 to automatically choose the channel with the least Selection interference. Deselect this check box if you wish to manually select the channel using the Channel Selection field. Operating This displays the channel the LTE3301 is currently using. Channel LTE3301 Series User’s Guide...
7.3 Wireless Security The screen varies depending on what you select in the Security Mode field. 7.3.1 No Security Select No Security to allow wireless clients to communicate with the access points without any data encryption. LTE3301 Series User’s Guide...
Both the wireless stations and the access points must use the same WEP key. Your LTE3301 allows you to configure up to four 64-bit or 128-bit WEP keys but only one key can be enabled at any one time. Select Static WEP from the Security Mode list. LTE3301 Series User’s Guide...
Page 68
Select this option in order to enter ASCII characters as WEP key. Select this option in order to enter hexadecimal characters as a WEP key. The preceding "0x", that identifies a hexadecimal key, is entered automatically. LTE3301 Series User’s Guide...
Select WPA-PSK or WPA2-PSK to enable data encryption. WPA-PSK This field appears when you choose WPA2-PSK as the Security Mode. Compatible Check this field to allow wireless devices using WPA-PSK security mode to connect to your LTE3301. LTE3301 Series User’s Guide...
Select WPA or WPA2 from the Security Mode list. Note: WPA or WPA2 is not available if you enable WPS before you configure WPA or WPA2 in the Wireless LAN > General screen. Figure 38 Network > Wireless LAN > General: WPA/WPA2 LTE3301 Series User’s Guide...
This allows you to use one access point to provide several BSSs simultaneously. You can then assign varying security types to different SSIDs. Wireless clients can use different SSIDs to associate with the same access point. Click Network > Wireless LAN > More AP. The following screen displays. LTE3301 Series User’s Guide...
7.4.1 More AP Edit Use this screen to edit an SSID profile. Click the Edit icon next to an SSID in the More AP screen. The following screen displays. Figure 40 Network > Wireless LAN > More AP: Edit LTE3301 Series User’s Guide...
00:A0:C5:00:00:02. You need to know the MAC address of the devices to configure this screen. To change your LTE3301’s MAC filter settings, click Network > Wireless LAN > MAC Filter. The screen appears as shown. LTE3301 Series User’s Guide...
Page 74
Enter the MAC address of the wireless station that are allowed or denied access to the LTE3301. Apply Click Apply to save your changes back to the LTE3301. Cancel Click Cancel to reload the previous configuration for this screen. LTE3301 Series User’s Guide...
This specifies the time period before the device sends the beacon again. The interval tells receiving devices on the network how long they can wait in low-power mode before waking up to handle the beacon. A high value helps save current consumption of the access point. LTE3301 Series User’s Guide...
Use this screen to enable/disable WPS, view or generate a new PIN number and check current WPS status. To open this screen, click Network > Wireless LAN > WPS. Note: With WPS, wireless clients can only connect to the wireless network using the first SSID on the LTE3301. LTE3301 Series User’s Guide...
Page 77
This is the name of the wireless network (the LTE3301’s first SSID). Security This is the type of wireless security employed by the network. Apply Click Apply to save your changes back to the LTE3301. Cancel Click Cancel to reload the previous configuration for this screen. LTE3301 Series User’s Guide...
Use this screen to set the times your wireless LAN is turned on and off. Wireless LAN scheduling is disabled by default. The wireless LAN can be scheduled to turn on or off on certain days and at certain times. To open this screen, click Network > Wireless LAN > Scheduling tab. LTE3301 Series User’s Guide...
7.11 WDS Screen A Wireless Distribution System (WDS) is a wireless connection between two or more APs. Use this screen to configure the LTE3301’s WDS settings. To open this screen, click Network > Wireless LAN > WDS tab. LTE3301 Series User’s Guide...
Page 80
You must also set the peer device to use the same pre-shared key. Apply Click Apply to save your changes back to the LTE3301. Reset Click Reset to reload the previous configuration for this screen. LTE3301 Series User’s Guide...
8.3 What You Need To Know The actual physical connection determines whether the LTE3301 ports are LAN or WAN ports. There are two separate IP networks, one inside the LAN network and the other outside the WAN network as shown next. LTE3301 Series User’s Guide...
IP address that you assign. Unless you are implementing subnetting, use the subnet mask computed by the LTE3301. Apply Click Apply to save your changes back to the LTE3301. Cancel Click Cancel to begin configuring this screen afresh. LTE3301 Series User’s Guide...
9.2 DHCP Server General Screen The LTE3301 has built-in DHCP server capability that assigns IP addresses to systems that support DHCP client capability. Use this screen to enable the DHCP server. Click Network > DHCP Server. The following screen displays. LTE3301 Series User’s Guide...
This field specifies the first of the contiguous addresses in the IP address pool for LAN. Address Pool Size This field specifies the size, or count of the IP address pool for LAN. DHCP Relay Select this option to have the LTE3301 forward DHCP requests to the DHCP server. LTE3301 Series User’s Guide...
MAC addresses. You can also use this screen to configure the DNS server information that the LTE3301 sends to the DHCP clients. To change your LTE3301’s static DHCP settings, click Network > DHCP Server > Advanced. The following screen displays. LTE3301 Series User’s Guide...
Page 86
DNS server (configured in the WAN screen) and relays the response back to the computer. Apply Click Apply to save your changes back to the LTE3301. Cancel Click Cancel to begin configuring this screen afresh. LTE3301 Series User’s Guide...
Select this if you want to reserve the IP address for this specific MAC address. Apply Click Apply to save your changes back to the LTE3301. Cancel Click Cancel to reload the previous configuration for this screen. LTE3301 Series User’s Guide...
89). • Use the Port Forwarding screen to set a default server and change your LTE3301’s port forwarding settings to forward incoming service requests to the server(s) on your local network (Section 10.3 on page 89). LTE3301 Series User’s Guide...
80 and FTP on port 21. In some cases, such as for unknown services or where one server can support more than one service (for example both FTP and web service), it might be better to specify a range of port numbers. LTE3301 Series User’s Guide...
Page 90
You can decide whether you want to use the default server or specify a server manually. Select this to use the default server. Change to Server Select this and manually enter the server’s IP address. LTE3301 Series User’s Guide...
Click Cancel to begin configuring this screen afresh. 10.3.1 Port Forwarding Edit Screen This screen lets you edit a port forwarding rule. Click a rule’s Edit icon in the Port Forwarding screen to open the following screen. LTE3301 Series User’s Guide...
10.4 Port Trigger Screen To change your LTE3301’s trigger port settings, click Network > NAT > Port Trigger. The screen appears as shown. Note: Only one LAN computer can use a trigger port (range) at a time. LTE3301 Series User’s Guide...
When the LTE3301 registers with the SIP register server, the SIP ALG translates the LTE3301’s private IP address inside the SIP data stream to a public IP address. You do not need to use STUN or an outbound proxy if your LTE3301 is behind a SIP ALG LTE3301 Series User’s Guide...
(such as a Web or FTP server) from your location. Your ISP may periodically check for servers and may suspend your account if it discovers any active services at your location. If you are unsure, refer to your ISP. LTE3301 Series User’s Guide...
This way you do not need to configure a new IP address each time you want a different LAN computer to use the application. 10.6.4 Trigger Port Forwarding Example The following is an example of trigger port forwarding. LTE3301 Series User’s Guide...
Trigger events only happen on data that is coming from inside the LTE3301 and going to the outside. If an application needs a continuous data stream, that port (range) will be tied up so that another computer on the LAN can’t trigger it. LTE3301 Series User’s Guide...
Table 41 Dynamic DNS LABEL DESCRIPTION IPv4 Dynamic DNS Setup Dynamic DNS Select Enable to use dynamic DNS. Select Disable to turn this feature off. Service Provider Select the name of your Dynamic DNS service provider. LTE3301 Series User’s Guide...
Page 98
This is the token authentication provided by the hosting provider (i.e. FreeDDNS). When the host name is registered, the hosting server provides the token identifier. Apply Click Apply to save your changes back to the LTE3301. Cancel Click Cancel to begin configuring this screen afresh. LTE3301 Series User’s Guide...
R3 connected to the LAN. Figure 63 Example of Static Routing Topology 12.2 Static Route Screen Click Network > Routing > Static Route to open the Static Route screen. LTE3301 Series User’s Guide...
If you need to specify a route to a single host, use a subnet mask of 255.255.255.255 in the subnet mask field to force the network number to be identical to the host ID. LTE3301 Series User’s Guide...
Select the RIP version from RIPv1 and RIPv2. Otherwise, select Disable to turn if off. Apply Click Apply to save your changes back to the LTE3301. Cancel Click Cancel to begin configuring this screen afresh. LTE3301 Series User’s Guide...
This shows the descriptive name of the group. LAN Interface This shows the interface group. This shows the VLAN ID number (from 0 to 4094) of the interface group. Modify Click the Delete icon to remove the user-defined group. LTE3301 Series User’s Guide...
Select the interfaces that you want and click the left arrow button to add them to this group. Back Click Back to quit and return to the previous screen. Apply Click Apply to save your changes back to the LTE3301. Cancel Click Cancel to exit this screen without saving. LTE3301 Series User’s Guide...
• Use the Services screen enable service blocking, enter/delete/modify the services you want to block and the date/time you want to block them (Section 14.3 on page 106). 14.1.2 What You Need To Know The following terms and concepts may help as you read through this chapter. LTE3301 Series User’s Guide...
Protect against IP spoofing by making sure the firewall is active. Keep the firewall in a secured (locked) room. 14.2 General Screen Use this screen to enable or disable the LTE3301’s firewall, and set up firewall logs. Click Security > Firewall to open the General screen. LTE3301 Series User’s Guide...
You can also use this screen to enable service blocking, enter/delete/modify the services you want to block and the date/time you want to block them. Click Security > Firewall > Services. The screen appears as shown next. LTE3301 Series User’s Guide...
Page 107
Click Apply to save the settings. Add Firewall Rule Service Name Enter a name that identifies or describes the firewall rule. MAC Address Enter the MAC address of the computer for which the firewall rule applies. LTE3301 Series User’s Guide...
Page 108
DROP - Traffic matching the conditions of the firewall rule are stopped. Delete Click Delete to remove the firewall rule. Cancel Click Cancel to start configuring this screen again. Appendix C on page 174 for commonly used services and port numbers. LTE3301 Series User’s Guide...
Use this screen to restrict web features, and designate a trusted computer. You can also use this screen to configure URL filtering settings to block the users on your network from accessing certain web sites. Click Security > Content Filter to open the Content Filter screen. LTE3301 Series User’s Guide...
Page 110
Type a keyword in this field. You may use any character (up to 64 characters). Wildcards are not allowed. You can also enter a numerical IP address. Keyword List This list displays the keywords already added. LTE3301 Series User’s Guide...
Page 111
Apply. Clear All Click this button to remove all of the listed keywords. Apply Click Apply to save your changes. Reset Click Reset to begin configuring this screen afresh LTE3301 Series User’s Guide...
Click Apply to save the settings. Add Firewall Rule Service Name Enter a name that identifies or describes the firewall rule. MAC Address Enter the MAC address of the computer for which the firewall rule applies. LTE3301 Series User’s Guide...
Page 113
TCP port 80 defines web traffic. Action DROP - Traffic matching the conditions of the firewall rule is stopped. Delete Click Delete to remove the firewall rule. Cancel Click Cancel to restore your previously saved settings. LTE3301 Series User’s Guide...
• Use the General screen to enable bandwidth management and assign bandwidth values (Section 17.4 on page 115). • Use the Advanced screen to configure bandwidth managements rule for the services and applications (Section 17.5 on page 116). LTE3301 Series User’s Guide...
Select Enable to use up to 100% of the configured bandwidth. If you select Disable, Management you can only use up to 33% of the configured bandwidth. Apply Click Apply to save your customized settings. Cancel Click Cancel to begin configuring this screen afresh. LTE3301 Series User’s Guide...
Click this button to remove all bandwidth management rules. 17.5.1 Add Bandwidth management Rule If you want to create a new bandwidth management rule for a service or application, click the Add New Rule icon in the Advanced screen. The following screen displays. LTE3301 Series User’s Guide...
Page 117
Bandwidth. Select Grouping to Select Single to Apply Click Apply to save your customized settings. Cancel Click Cancel to exit this screen without saving. Appendix C on page 174 for commonly used services and port numbers. LTE3301 Series User’s Guide...
When a UPnP device joins a network, it announces its presence with a multicast message. For security reasons, the LTE3301 allows multicast messages on the LAN only. LTE3301 Series User’s Guide...
Make sure the computer is connected to a LAN port of the LTE3301. Turn on your computer and the LTE3301. 18.4.1.1 Auto-discover Your UPnP-enabled Network Device Click start and Control Panel. Double-click Network Connections. An icon displays under Internet Gateway. Right-click the icon and select Properties. LTE3301 Series User’s Guide...
Page 120
In the Internet Connection Properties window, click Settings to see the port mappings there were automatically created. Figure 80 Internet Connection Properties You may edit or delete the port mappings or click Add to manually add port mappings. Figure 81 Internet Connection Properties: Advanced Settings LTE3301 Series User’s Guide...
LTE3301 first. This comes helpful if you do not know the IP address of the LTE3301. Follow the steps below to access the web configurator. Click Start and then Control Panel. Double-click Network Connections. LTE3301 Series User’s Guide...
Page 122
Right-click on the icon for your LTE3301 and select Invoke. The web configurator login screen displays. Figure 86 Network Connections: My Network Places Right-click on the icon for your LTE3301 and select Properties. A properties window displays with basic information about the LTE3301. LTE3301 Series User’s Guide...
Page 123
Chapter 18 Universal Plug-and-Play (UPnP) Figure 87 Network Connections: My Network Places: Properties: Example LTE3301 Series User’s Guide...
ACS and specify the ACS IP address or domain name and username and password. Click Management > TR-069 to open the following screen. Use this screen to configure your LTE3301 to be managed by an ACS. Figure 88 Management > TR-069 LTE3301 Series User’s Guide...
Page 125
When the ACS makes a connection request to the LTE3301, this password is used to authenticate the ACS. Interface Select a WAN interface through which the TR-069 traffic passes. Apply Click Apply to save your changes. Cancel Click Cancel to exit this screen without saving. LTE3301 Series User’s Guide...
• Use the Restart screen to reboot the LTE3301 without turning the power off (Section 20.8 on page 133). 20.3 General Screen Use this screen to set the management session timeout period. Click Maintenance > General. The following screen displays. Figure 89 Maintenance > General LTE3301 Series User’s Guide...
Click the Edit icon to edit this user account. 20.4.1 Edit a User Account Use this screen to edit a users account. Click the Edit icon next to the user account you want to configure. The screen shown next appears. LTE3301 Series User’s Guide...
Click Cancel to begin configuring this screen afresh. 20.5 Time Setting Screen Use this screen to configure the LTE3301’s time based on your local time zone. To change your LTE3301’s time and date, click Maintenance > Time. The screen appears as shown. LTE3301 Series User’s Guide...
Page 129
When you select Manual, enter the new date in this field and then click Apply. Get from Time Select this radio button to have the LTE3301 get the time and date from the time server Server you specified below. LTE3301 Series User’s Guide...
“*.bin” extension, e.g., “V1.00(AAYE.0).bin”. The upload process uses HTTP (Hypertext Transfer Protocol) and may take up to two minutes. After a successful upload, the system will reboot. Click Maintenance > Firmware Upgrade. Follow the instructions in this screen to upload firmware to your LTE3301. LTE3301 Series User’s Guide...
The backup configuration file will be useful in case you need to return to your previous settings. Restore configuration allows you to upload a new or previously saved configuration file from your computer to your LTE3301. LTE3301 Series User’s Guide...
Page 132
LTE3301 IP address (192.168.1.1). See Appendix B on page 148 for details on how to set up your computer’s IP address. LTE3301 Series User’s Guide...
System restart allows you to reboot the LTE3301 without turning the power off. Click Maintenance > Restart to open the following screen. Figure 96 Maintenance > Restart Click Restart to have the LTE3301 reboot. This does not affect the LTE3301's configuration. LTE3301 Series User’s Guide...
Check the hardware connections. See the Quick Start Guide. Inspect your cables for damage. Contact the vendor to replace any damaged cables. Disconnect and re-connect the power adaptor to the LTE3301. If the problem continues, contact the vendor. LTE3301 Series User’s Guide...
• If there is a DHCP server on your network, make sure your computer is using a dynamic IP address. See Section 8.4 on page • If there is no DHCP server on your network, make sure your computer’s IP address is in the same subnet as the LTE3301. See Section 8.4 on page LTE3301 Series User’s Guide...
WAN screen. These fields are case-sensitive, so make sure [Caps Lock] is not on. Make sure your SIM card’s account is valid and has an active data plan. Check your service contract or contact your service provider directly. If the problem continues, contact your ISP. LTE3301 Series User’s Guide...
Make sure the wireless adapter installed on your computer is IEEE 802.11 compatible and supports the same wireless standard as the LTE3301. Make sure your computer (with a wireless adapter installed) is within the transmission range of the LTE3301. LTE3301 Series User’s Guide...
If the AP is placed at a high position, point the antennas downwards. Try pointing the antennas in different directions and check which provides the strongest signal to the wireless clients. 21.6 Getting More Troubleshooting Help Search for support information for your model at www.zyxel.com for more troubleshooting suggestions. LTE3301 Series User’s Guide...
You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the Privacy tab. In Internet Explorer, select Tools, Internet Options, Privacy. Clear the Block pop-ups check box in the Pop-up Blocker section of the screen. This disables any web pop-up blockers you may have enabled. LTE3301 Series User’s Guide...
Page 140
Alternatively, if you only want to allow pop-up windows from your device, see the following steps. In Internet Explorer, select Tools, Internet Options and then the Privacy tab. Select Settings…to open the Pop-up Blocker Settings screen. LTE3301 Series User’s Guide...
Page 141
Type the IP address of your device (the web page that you do not want to have blocked) with the prefix “http://”. For example, http://192.168.167.1. Click Add to move the IP address to the list of Allowed sites. Figure 100 Pop-up Blocker Settings LTE3301 Series User’s Guide...
Page 142
Click the Custom Level... button. Scroll down to Scripting. Under Active scripting make sure that Enable is selected (the default). Under Scripting of Java applets make sure that Enable is selected (the default). Click OK to close the window. LTE3301 Series User’s Guide...
Page 143
From Internet Explorer, click Tools, Internet Options and then the Security tab. Click the Custom Level... button. Scroll down to Microsoft VM. Under Java permissions make sure that a safety level is selected. Click OK to close the window. LTE3301 Series User’s Guide...
Page 144
JAVA (Sun) From Internet Explorer, click Tools, Internet Options and then the Advanced tab. Make sure that Use Java 2 for <applet> under Java (Sun) is selected. Click OK to close the window. Figure 104 Java (Sun) LTE3301 Series User’s Guide...
Page 145
You can enable Java, Javascript and pop-ups in one screen. Click Tools, then click Options in the screen that appears. Figure 105 Mozilla Firefox: TOOLS > Options Click Content to show the screen below. Select the check boxes as shown in the following screen. Figure 106 Mozilla Firefox Content Security LTE3301 Series User’s Guide...
Page 146
Open all pop-ups. Figure 107 Opera: Allowing Pop-Ups Enabling Java From Opera, click Tools, then Preferences. In the Advanced tab, select Content from the left- side menu. Select the check boxes as shown in the following screen. LTE3301 Series User’s Guide...
Page 147
Appendix A Pop-up Windows, JavaScript and Java Permissions Figure 108 Opera: Enabling Java To customize JavaScript behavior in the Opera browser, click JavaScript Options. Figure 109 Opera: JavaScript Options Select the items you want Opera’s JavaScript to apply. LTE3301 Series User’s Guide...
164 • Linux: openSUSE 10.3 (KDE) page 168 Windows XP/NT/2000 The following example uses the default Windows XP display theme but can also apply to Windows 2000 and Windows NT. Click Start > Control Panel. LTE3301 Series User’s Guide...
Page 149
Appendix B Setting Up Your Computer’s IP Address In the Control Panel, click the Network Connections icon. Right-click Local Area Connection and then select Properties. On the General tab, select Internet Protocol (TCP/IP) and then click Properties. LTE3301 Series User’s Guide...
Page 150
Appendix B Setting Up Your Computer’s IP Address The Internet Protocol TCP/IP Properties window opens. LTE3301 Series User’s Guide...
Page 151
Status and then click the Support tab to view your IP address and connection information. Windows Vista This section shows screens from Windows Vista Professional. Click Start > Control Panel. In the Control Panel, click the Network and Internet icon. LTE3301 Series User’s Guide...
Page 152
Right-click Local Area Connection and then select Properties. Note: During this procedure, click Continue whenever Windows displays a screen saying that it needs your permission to continue. Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties. LTE3301 Series User’s Guide...
Page 153
Appendix B Setting Up Your Computer’s IP Address The Internet Protocol Version 4 (TCP/IPv4) Properties window opens. LTE3301 Series User’s Guide...
Page 154
Status and then click the Support tab to view your IP address and connection information. Windows 7 This section shows screens from Windows 7 Enterprise. Click Start > Control Panel. In the Control Panel, click View network status and tasks under the Network and Internet category. LTE3301 Series User’s Guide...
Page 155
Appendix B Setting Up Your Computer’s IP Address Click Change adapter settings. Double click Local Area Connection and then select Properties. LTE3301 Series User’s Guide...
Page 156
Note: During this procedure, click Continue whenever Windows displays a screen saying that it needs your permission to continue. Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties. The Internet Protocol Version 4 (TCP/IPv4) Properties window opens. LTE3301 Series User’s Guide...
Page 157
Click OK to close the Local Area Connection Properties window. Verifying Settings Click Start > All Programs > Accessories > Command Prompt. In the Command Prompt window, type "ipconfig" and then press [ENTER]. The IP settings are displayed as follows. LTE3301 Series User’s Guide...
Page 158
Mac OS X: 10.3 and 10.4 The screens in this section are from Mac OS X 10.4 but can also apply to 10.3. Click Apple > System Preferences. In the System Preferences window, click the Network icon. LTE3301 Series User’s Guide...
Page 159
Appendix B Setting Up Your Computer’s IP Address When the Network preferences pane opens, select Built-in Ethernet from the network connection type list, and then click Configure. For dynamically assigned settings, select Using DHCP from the Configure IPv4 list in the TCP/IP tab. LTE3301 Series User’s Guide...
Page 160
• In the Router field, type the IP address of your device. Click Apply Now and close the window. Verifying Settings Check your TCP/IP properties by clicking Applications > Utilities > Network Utilities, and then selecting the appropriate Network Interface from the Info tab. LTE3301 Series User’s Guide...
Page 161
Figure 110 Mac OS X 10.4: Network Utility Mac OS X: 10.5 and 10.6 The screens in this section are from Mac OS X 10.5 but can also apply to 10.6. Click Apple > System Preferences. In System Preferences, click the Network icon. LTE3301 Series User’s Guide...
Page 162
Appendix B Setting Up Your Computer’s IP Address When the Network preferences pane opens, select Ethernet from the list of available connection types. From the Configure list, select Using DHCP for dynamically assigned settings. LTE3301 Series User’s Guide...
Page 163
• In the Router field, enter the IP address of your LTE3301. Click Apply and close the window. Verifying Settings Check your TCP/IP properties by clicking Applications > Utilities > Network Utilities, and then selecting the appropriate Network interface from the Info tab. LTE3301 Series User’s Guide...
Page 164
When the Network Settings window opens, click Unlock to open the Authenticate window. (By default, the Unlock button is greyed out until clicked.) You cannot make changes to your configuration unless you first enter your admin password. LTE3301 Series User’s Guide...
Page 165
Appendix B Setting Up Your Computer’s IP Address In the Authenticate window, enter your admin account name and password then click the Authenticate button. In the Network Settings window, select the connection that you want to configure, then click Properties. LTE3301 Series User’s Guide...
Page 166
Click OK to save the changes and close the Properties dialog box and return to the Network Settings screen. If you know your DNS server IP address(es), click the DNS tab in the Network Settings window and then enter the DNS server information in the fields provided. LTE3301 Series User’s Guide...
Page 167
Verifying Settings Check your TCP/IP properties by clicking System > Administration > Network Tools, and then selecting the appropriate Network device from the Devices tab. The Interface Statistics column shows data if your connection is working properly. LTE3301 Series User’s Guide...
Page 168
The following screens use the default openSUSE 10.3 installation. Note: Make sure you are logged in as the root administrator. Follow the steps below to configure your computer IP address in the KDE: Click K Menu > Computer > Administrator Settings (YaST). LTE3301 Series User’s Guide...
Page 169
Appendix B Setting Up Your Computer’s IP Address When the Run as Root - KDE su dialog opens, enter the admin password and click OK. When the YaST Control Center window opens, select Network Devices and then click the Network Card icon. LTE3301 Series User’s Guide...
Page 170
Appendix B Setting Up Your Computer’s IP Address When the Network Settings window opens, click the Overview tab, select the appropriate connection Name from the list, and then click the Configure button. When the Network Card Setup window opens, click the Address tab LTE3301 Series User’s Guide...
Page 171
Click Next to save the changes and close the Network Card Setup window. If you know your DNS server IP address(es), click the Hostname/DNS tab in Network Settings and then enter the DNS server information in the fields provided. LTE3301 Series User’s Guide...
Page 172
Click the KNetwork Manager icon on the Task bar to check your TCP/IP properties. From the Options sub-menu, select Show Connection Information. Figure 114 openSUSE 10.3: KNetwork Manager When the Connection Status - KNetwork Manager window opens, click the Statistics tab to see if your connection is working properly. LTE3301 Series User’s Guide...
Page 173
Appendix B Setting Up Your Computer’s IP Address Figure 115 openSUSE: Connection Status - KNetwork Manager LTE3301 Series User’s Guide...
File Transfer Program, a program to enable fast transfer of files, including large files that may not be possible by e-mail. H.323 1720 NetMeeting uses this protocol. HTTP Hyper Text Transfer Protocol - a client/server protocol for the world wide web. LTE3301 Series User’s Guide...
Page 175
Simple Mail Transfer Protocol is the message- exchange standard for the Internet. SMTP enables you to move messages from one e-mail server to another. SNMP TCP/UDP Simple Network Management Program. SNMP-TRAPS TCP/UDP Traps for use with the SNMP (RFC:1215). LTE3301 Series User’s Guide...
Page 176
TFTP Trivial File Transfer Protocol is an Internet file transfer protocol similar to FTP, but uses the UDP (User Datagram Protocol) rather than TCP (Transmission Control Protocol). VDOLIVE 7000 Another videoconferencing solution. LTE3301 Series User’s Guide...
The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved.
ZyXEL ovime izjavljuje da je radijska oprema tipa u skladu s Direktivom 1999/5/EC. (Croatian) Íslenska Hér með lýsir, ZyXEL því yfir að þessi búnaður er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipunar (Icelandic) 1999/5/EC. LTE3301 Series User’s Guide...
Page 179
Italia. Se non viene installato all 'interno del proprio fondo, l'utilizzo di prodotti Wireless LAN richiede una “Autorizzazione Generale”. Consultare http://www.sviluppoeconomico.gov.it/ per maggiori dettagli. Latvia The outdoor usage of the 2.4 GHz band requires an authorization from the Electronic Communications Office. Please check http:// www.esd.lv for more details. LTE3301 Series User’s Guide...
FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES) Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all Wi-Fi product marketed in US must fixed to US operation channels only. LTE3301 Series User’s Guide...
Page 181
Lo smaltimento abusivo del prodotto da parte del detentore comporta l’applicazione delle sanzioni amministrative previste dalla normativa vigente." LTE3301 Series User’s Guide...
Page 182
Appendix D Legal Information Environmental Product Declaration LTE3301 Series User’s Guide...
You can download the latest firmware at www.zyxel.com. If you cannot find it there, contact your vendor or ZyXEL Technical Support at support@zyxel.com.tw. To obtain the source code covered under those Licenses, please contact your vendor or ZyXEL Technical Support at support@zyxel.com.tw. LTE3301 Series User’s Guide...
• Brief description of the problem and the steps you took to solve it. Corporate Headquarters (Worldwide) Taiwan • ZyXEL Communications Corporation • http://www.zyxel.com Asia China • ZyXEL Communications (Shanghai) Corp. ZyXEL Communications (Beijing) Corp. ZyXEL Communications (Tianjin) Corp. • http://www.zyxel.cn India • ZyXEL Technology India Pvt Ltd • http://www.zyxel.in Kazakhstan •...
Page 186
• ZyXEL BY • http://www.zyxel.by Belgium • ZyXEL Communications B.V. • http://www.zyxel.com/be/nl/ Bulgaria • ZyXEL България • http://www.zyxel.com/bg/bg/ Czech • ZyXEL Communications Czech s.r.o • http://www.zyxel.cz Denmark • ZyXEL Communications A/S • http://www.zyxel.dk Estonia • ZyXEL Estonia • http://www.zyxel.com/ee/et/ Finland •...
Page 187
• ZyXEL Communications Poland • http://www.zyxel.pl Romania • ZyXEL Romania • http://www.zyxel.com/ro/ro Russia • ZyXEL Russia • http://www.zyxel.ru Slovakia • ZyXEL Communications Czech s.r.o. organizacna zlozka • http://www.zyxel.sk Spain • ZyXEL Spain • http://www.zyxel.es Sweden • ZyXEL Communications • http://www.zyxel.se Switzerland •...
Page 188
Ecuador • ZyXEL Communication Corporation • http://www.zyxel.com/ec/es/ Middle East Egypt • ZyXEL Communication Corporation • http://www.zyxel.com/homepage.shtml Middle East • ZyXEL Communication Corporation • http://www.zyxel.com/homepage.shtml North America • ZyXEL Communications, Inc. - North America Headquarters • http://www.us.zyxel.com/ LTE3301 Series User’s Guide...
Page 189
Appendix E Customer Support Oceania Australia • ZyXEL Communications Corporation • http://www.zyxel.com/au/en/ Africa South Africa • Nology (Pty) Ltd. • http://www.zyxel.co.za LTE3301 Series User’s Guide...
(in URL) Cookies copyright FCC interference statement CPU usage Firewall customer support guidelines ICMP packets firewall stateful inspection Firmware upload Daylight saving file extension DDNS using HTTP see also Dynamic DNS firmware version LTE3301 Series User’s Guide...
Page 191
LAN overview LAN setup Language Link type Pool Size local (user) database and encryption Port forwarding 90, 94 default server Local Area Network 90, 94 example logout local server Web Configurator port numbers services port speed LTE3301 Series User’s Guide...
Page 192
WAN (Wide Area Network) 23, 62, 65, 73 stateful inspection firewall warranty note Static DHCP Web Configurator Static Route how to access static route Overview configuration web configurator Status Web Proxy Subnet Mask WEP Encryption 68, 69 LTE3301 Series User’s Guide...
Page 193
Wireless association list wireless channel wireless LAN wireless LAN scheduling Wireless network basic guidelines channel encryption example MAC address filter overview security SSID Wireless security overview type wireless security Wireless tutorial Wizard setup WLAN button WPA compatible LTE3301 Series User’s Guide...
