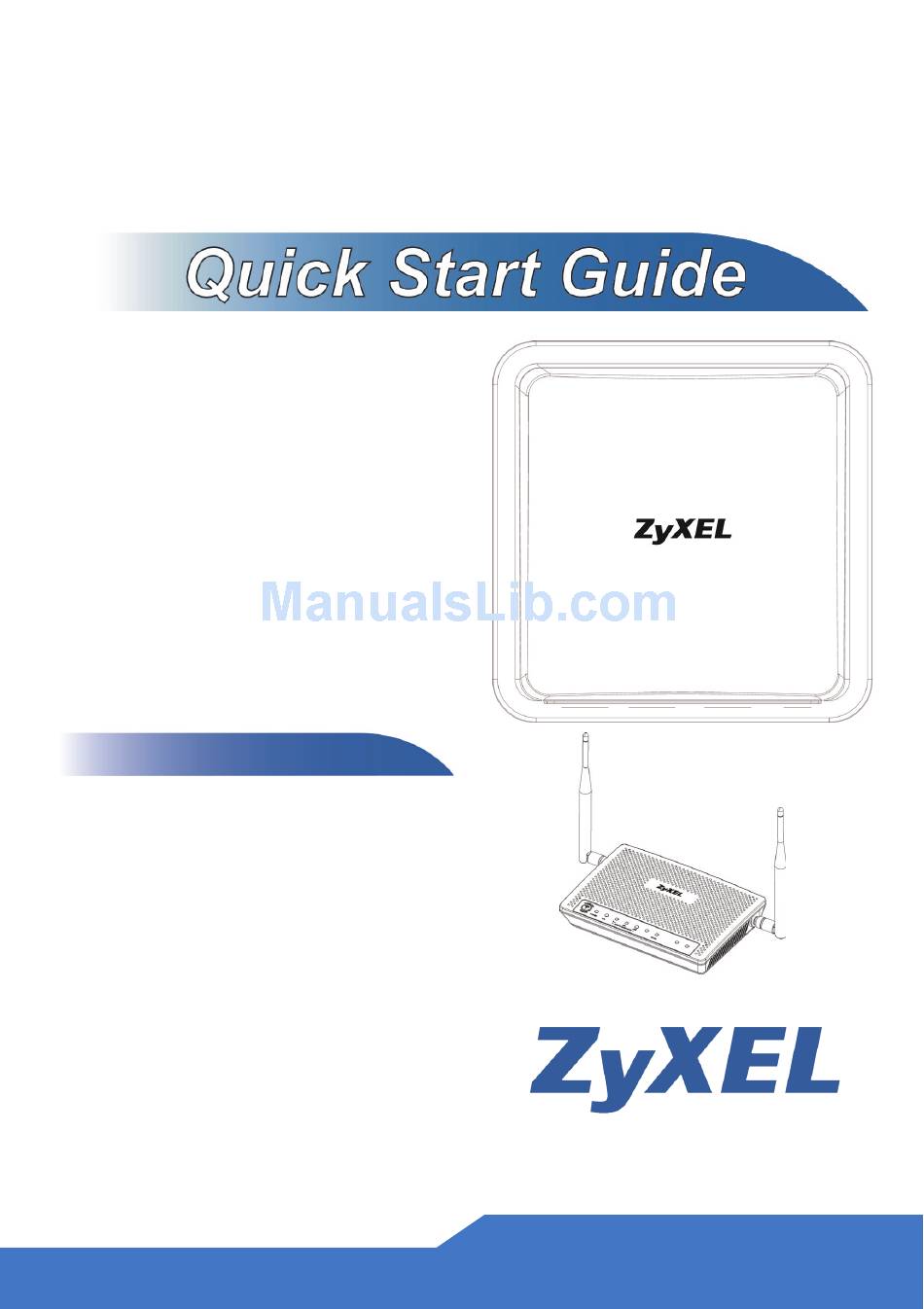

LTE6101
LTE Outdoor Gateway
Software v3.00
Edition 1, 12/2012
DEFAULT LOGIN DETAILS
IP Address:
Admin's User
Name and
Password:
Guest's User
Name and
Password:
www.zyxel.com
http://192.168.1.1
admin / 1234
user / 1234
Copyright 2012
ZyXEL Communications Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTE6101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZyXEL Communications LTE6101

Summary of Contents for ZyXEL Communications LTE6101

  • Page 1 LTE6101 LTE Outdoor Gateway Software v3.00 Edition 1, 12/2012 DEFAULT LOGIN DETAILS IP Address: http://192.168.1.1 Admin’s User Name and admin / 1234 Password: Guest’s User Name and user / 1234 Password: Copyright 2012 ZyXEL Communications Corporation www.zyxel.com...
  • Page 2 IDU and ODU WIRELESS ON/OFF POWER LINK SIGNAL 1~3 WLAN BUTTON LEDS ETHERNET POWER RESET POWER PORTS OUTPUT BUTTON SIM CARD SLOT SIGNAL POE POWER STRENGTH INPUT LEDS...

  • Page 3: How It Works

    ENGLISH Introduction Welcome to the LTE6101! This is a LTE subscriber station system comprised of an outdoor unit (ODU) and an indoor unit (IDU). The ODU has such features as a high gain antenna and advanced IP networking while the IDU provides power to it.

  • Page 4: Package Content

    This Quick Start Guide shows you how to set up your outdoor and indoor units in order to access the Internet. Package Content Ensure that you have everything required to properly set up your device. The LTE ODU The LTE IDU The Quick Start The Warranty Card (including 2...

  • Page 5: Installing The Outdoor Unit

    ENGLISH Requirements Make sure you have the following things before you start: • INTERNET ACCESS: You need a SIM card from an LTE ISP (Internet Service Provider). You may also need a PIN code to use the SIM card. • WEB BROWSER: Internet Explorer 6.0 and later versions, with JavaScript enabled, or Mozilla Firefox 3 and later versions, or Safari 2.0 and later versions.
  • Page 6 nearest base station. If you are not sure where this is, consult your service provider. • You do not need to be able to see the base station from the ODU’s position; there may be objects such as trees and buildings in the way without signal loss.

  • Page 7: Connecting The Odu To The Idu

    ENGLISH 3. Align and twist the cover in clockwise direction to tighten it into the ODU. Make sure the ODU is turned off before you insert your SIM card. It is recommended to NOT connect the PoE cable before you do this step. Otherwise, the SIM card may be damaged. Connecting the ODU to the IDU Lay a CAT5 Ethernet cable (not included) from your intended IDU location to your intended ODU location.
  • Page 8 To connect the CAT5 Ethernet cable: 1. Separate the Body, Claw and Nut pieces into their individual components. 2. Feed one end of the CAT5 Ethernet cable through the nut. 3. Open the claw then buckle it tightly to the cable.
  • Page 9 ENGLISH 4. Slip the body over the cable then connect the end of the cable to the ODU. 5. Gently twist the body into the ODU behind the attached cable connector.
  • Page 10 6. Tightly secure the CAT5 Ethernet cable connector and the body and claw with the nut. Mount the ODU See the installation instructions that came with your bracket mount for information on mounting the ODU correctly. To avoid the danger of rainwater entering the device, install the ODU vertically (with a 90 degree angle to the ground).
  • Page 11 ENGLISH 7. For +15 and 0 angle installations, position the bracket with the +15 mark on the top. • Use the two holes (marked as A) for +15 angle installation. • Use the two holes (marked as B) for 0 angle installation.
  • Page 12 9. Align the four edge holes on the mounting bracket with the screws on the rear of the LTE Modem. Then use a wrench to tighten the four nuts with the screws. Grounding 1. Use the M3 screw to secure the ground cable and the ground hole on the LTE Modem’s rear panel as shown.
  • Page 13 ENGLISH 2. Attach the other end of the ground cable to a wall or the ground.
  • Page 14 Setting Up Your LTE Device This section shows you how to set up your LTE Device. You will need a valid LTE account to connect to the Internet. For more information, contact your service provider. Make sure you have inserted your SIM card into the ODU as described previously on page 6.

  • Page 15: Connecting To The Internet

    ENGLISH Do not connect a computer or a switch directly to the IDU’s PoE port due to the high PoE power (48V). 2. Connect a CAT5 Ethernet cable (not included) to the IDU’s RJ-45 PoE port. The other end should already be connected to the ODU, as described in the previous section.
  • Page 16  If the login screen does not open, make sure you allow web browser pop-up windows, JavaScript and Java permissions. Your computer should also be set to get an IP address automatically from a DHCP server. See your User’s Guide for more information.
  • Page 17 ENGLISH 4. Change the APN, IP address and DNS server settings if necessary. Click Apply. The LTE settings should be provided by your Internet service provider. 5. If a PIN code is required, click Network Setting > Broadband > SIM. Enter it and then click Apply.
  • Page 18 Turn the Wireless On or Off 1. Make sure the POWER LED is on (not blinking). 2. Press the WIRELESS ON/OFF button for one second and release it. The WLAN LED should change from on to off or vice versa. Alternatively, you can go to Network Setting >...

  • Page 19: Activate Wps

    ENGLISH Activate WPS You can set up a wireless network with WPS (WiFi Protected Setup) or manually add a client to your wireless network. Activating WPS helps you quickly set up a wireless network with strong security. Using the physical WPS button: 1.

  • Page 20: Troubleshooting

    2. Click the WPS button in the Method 1 PBC section and click Apply. 3. Press the WPS button on your WPS-enabled wireless client nearby within 2 minutes. 4. The WLAN LED should flash while the LTE Device sets up a WPS connection with the wireless device.
  • Page 21 ENGLISH I cannot access the IDU from my LAN: • Check the cable connection between the LTE Modem and your computer or switch and ensure that both ends are secure. • Make sure your computer has gotten an IP address (default is 192.168.1.x) in the same network as the LTE Modem’s LAN.
  • Page 22 • Adjust the ODU’s direction that it faces to if necessary in order to get better signal quality. • If the received signal strength is still low, make sure the ODU’s location is within your Internet service provider’s service coverage. If the WLAN/WPS LED is off, please check: •...
