Nady Systems Encore Duet Owner's Manual page 4

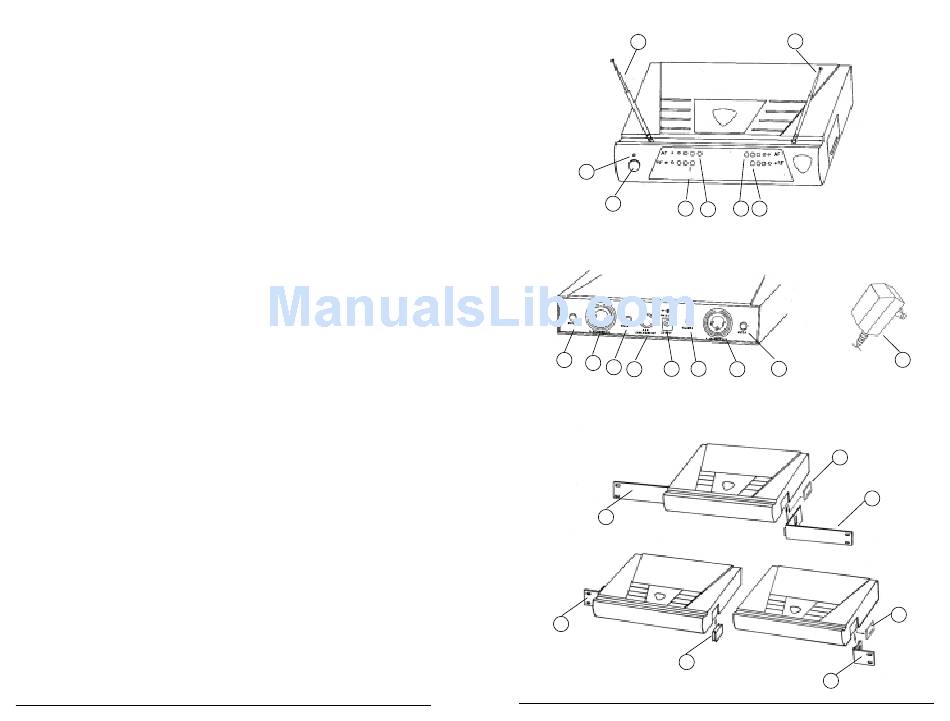

5. Connecting the Audio Output
The Encore DUET receiver provides both a fixed mic level BALANCED AUDIO
OUTPUT XLR (14) for each channel and an adjustable line level A + B UNBALANCED
AUDIO OUTPUT 1/4" JACK (13) which provides a mixed (summed) Ch A plus Ch B
output signal. The mixed level from the A + B UNBALANCED OUTPUT is controlled
by the rear panel VOLUME CONTROLS (6) for each channel. (Note: As when
making any connection, make sure the amplifier or mixing board volume is at the
minimum level before plugging in the receiver to avoid possible sound system
damage. Also make sure that the phantom power on the input of the mixer is turned
OFF before making connection to the receiver.)
a. Instrument Connection (using the WGT-15 instrument transmitter)
Insert an audio cord with a 1/4" mono phone plug in the A + B
UNBALANCED OUTPUT JACK (13) on the rear panel of the receiver. Plug the
other end of the cord into an amplifier, effects, or mixing board. Adjust the
appropriate VOLUME CONTROL (6) for the channel being used on the Encore
DUET receiver clockwise to about 3/4 rotation, until the mixed volume level is
comfortable for your application. This setting is roughly equivalent to a direct
instrument cord connection. Turning the volume up to maximum will provide
4dB gain over a cord. (Note: Since this a mixed output of Ch A & Ch B, both
channels with be processed simultaneously by the amplifier and/or effects
connected to, which may not be appropriate for your application.
b. Microphone Connection (using the WLT-15 transmitter with either a
headset or lavalier microphone or the WHT-15 handheld microphone
transmitter)
For microphone use, either the BALANCED MIC AUDIO OUTPUT XLRs (14) or
the 1/4" line level A + B UNBALANCED OUTPUT (13) can be used. The XLR
output is set at a non-adjustable microphone level, similar to hardwired mic
levels. Plug an XLR connector into either or both of the XLR OUTPUT JACKS on
the rear of the unit and plug the other end into your amplifier or mixing board.
(Note: Make sure the phantom power on your mixing board is turned off and
the volume is turned down when making connections.)
For your convenience, the XLR output levels are preset at the factory and are not
adjustable with the receiver volume controls. To use the 1/4" A + B
UNBALANCED OUTPUT JACK (13), follow the instructions for the
Instrument Connection(above), except start with the receiver volume at 1/2
MAX and adjust the volume control for each channel until the mixed Ch A &
Ch B volume level is optimal. If the volume controls are set too high, you may
overload your mixer or amp.
6
16
7
8
4
5
2
14
6
11 6
13 14
9
12
10
16
5 4
15
2
1
9
1
12
7
