User Manual

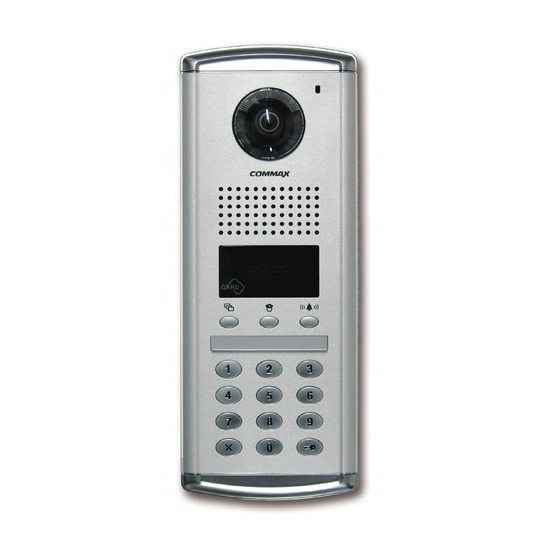

Lobby camera phone DRC-GAC/GAB
Thank you for purchasing COMMAX products.
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
- Feature -
● Covers all building with UPT cable.
● RF/ID (function optional)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRC-GAC and is the answer not in the manual?

Questions and answers

Related Manuals for Commax DRC-GAC

Summary of Contents for Commax DRC-GAC

  • Page 1: User Manual

    ● Covers all building with UPT cable. ● RF/ID (function optional) Thank you for purchasing COMMAX products. Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow...

  • Page 2: Table Of Contents

    ......... .36 1. Greetings  Thank you for purchasing a Commax product.  This product is a high tech Main Entrance interphone that supports electronic and remote (Optional) keys features.

  • Page 3: Warning For Safety

    2. Warning for safety Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or without an exception injury if violated.
  • Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of of the product, please plug out arbitrarily (please contact the into the ventilation hole.

  • Page 5: Overview

    3. Overview 3-1. Part name ① ② ⑫ ③ ④ ⑬ ⑤ ⑭ ⑦ ⑧ ⑥ ⑨ ⑩ ⑪ C-MIC INPUT BUTTON CAMERA ELETRONIC KEY BUTTON SPEAKER CANCEL BUTTON FND DISPLAY CAMERA ANGLE RF-ID AJUSTMENT BUTTON PROGRAM BUTTON TALK VOLUME CONTROLLER GUARD BUTTON RESET SWITCH - 4 -...
  • Page 6 3-2 Essentials ✽ RF/ID Receiver ⑤ (Optional) To open the door using a Remote Cardkey, place the key here. The word ‘oPEn’will display and the door will be released. Please the Card Here OPEN DOOR ✽ Call Button ⑧ (E: Enter) This button is used to page households.
  • Page 7 ✽ Change the message on FND To change the message on FND, press the Program button (P) for 5 seconds. 1) Displaying system version ⇨ 0101-9901 SLI DRC-GAC Ver.01 2) Displaying general message ⇨ hELLo hAPPy dAy - 6 -...
  • Page 8 Configured features are displayed on the Display Window when the Main Entrance interphone is not in use. 0 1 0 1 - 9 9 0 S - L I DRC-GAC V e r 0 1 O p e n D o o r s t a t u s Version No.

  • Page 9: Pin Types

    4. PIN Types 4-1. Management PIN - This PIN is for use by the person in charge of the Management Office. - By default, this PIN is set as 4321. - Management PIN shall be stated as “Management PIN” here below 4-2.

  • Page 10: Setting Pin

    5. Setting PIN 5-1. Management PIN Setup ✽ P - Old Management PIN - E - 0 - E - New PIN -E ✽ Management PIN must be 4-digits long. ✽ 0000 will not be recognized as a valid PIN. Press the Press the Program button (P).
  • Page 11 5-2. Building PIN Setup ✽ P - Old Management PIN - E - 1 - E - New PIN - E ✽ Building PIN must be 4-digits long. ✽ 0000 will not be recognized as a valid PIN. Press the Press the Program button (P).
  • Page 12 5-3. Household PIN Setup ✽ K - Program Number - E - Household Number - E - Old Household PIN - E - New PIN - P ✽ Household PIN must be 4-digits long. ✽ 0000 will not be recognized as a valid PIN. ✽...

  • Page 13: Household Pin Confirmation

    6.Household PIN Confirmation 6-1. Household PIN Confirmation ✽ P - Management PIN - E - Program Number - E - Household Number - E Press the Press the Program button (P). Enter the Management PIN. Call button (E). Press the Press the Household Number.

  • Page 14: Configuring Serial Numbers In The Main Entrance Interphone

    7.Configuring Serial Numbers in the Main Entrance Interphone P - Management PIN - E - 3 - E - Serial Number - E ✽ Press the Press the Program button (P). Enter the Management PIN. Call button (E). Press the Call button (E).

  • Page 15: Using Remote Cardkeys

    8. Using Remote Cardkeys (RF/ID) - Optional 8-1. Testing Remote Cardkeys ✽ P - Management PIN - E - 9 - E - Card Test - X (Cancel) ✽ This feature is used to test Remote Cardkeys. Press the Press the Program button (P). Enter the Management PIN.
  • Page 16 8-2. Remote Cardkey Registration ✽ P - Management PIN - E - 10 - E - Card Registration - X (Cancel) 4 3 2 1 Press the Enter the Management PIN. Press the Program button (P). Call button (E). Press the Card Here Press the Press the Call button (E).
  • Page 17 8-3. Individual Deletion of Remote Cardkeys ✽ P - Management PIN - E - 12 - E - Card Deletion - X (Cancel) 4 3 2 1 Press the Enter Management PIN. Press the Program button (P). Call button (E). Press the Card Here 1.
  • Page 18 8-4. Confirming Remote Cardkey Registration ✽ P - Management PIN - E - 13 - E - Card Confirmation - X (Cancel) 4 3 2 1 Press the Enter the Management PIN. Press the Program button (P). Call button (E). Press the Press the Card Here Program Number (13).
  • Page 19 8-5. All Remote Cardkey deletion ✽ P - Management PIN - E - 11 - E - E ✽ Refrain from deleting all Remote Cardkeys, except for during installation. <Note> In order to delete all registered RF cards, Move to "Program 23" ⇒ "Mode 1" and execute "Delete all registered RF cards"...

  • Page 20: Electronic Key Setting

    9. Electronic key setting ✽ P - Management PIN - E - 8 - E - 0 – E : Deactivate usage of electronic keys ( Available PIN number access) ✽ P - Management PIN - E - 8 - E - E - : Deactivate usage of electronic keys Door ( Not available PIN access) ✽...

  • Page 21: Door Release Time Setup

    10. Door Release Time Setup ✽ P - Management PIN - E - 4 - E - Door Release Time - E ✽ This feature adjusts the door release time. 4 3 2 1 Enter the Management PIN. Press the Press the Program button (P).

  • Page 22: Line Call Setup

    11. Line Call Setup ✽ P - Management PIN - E - 21 - E - 0 - E : All calls ✽ P - Management PIN - E - 21 - E – 0103 - E : Line call ex) This function is for calling to specified line like from 1 st house line to 3 rd house line.

  • Page 23: Page Signal Selection

    12. Page Signal Selection ✽ P - Management PIN - E - 5 - E - 0 - E: Melody Tone ✽ P - Management PIN - E - 5 - E - 1 - E: Bell (Ringer) ✽ This feature sets the Recall tone heard when Households or the Guardhouse is paged from the Main Entrance.

  • Page 24: The Number Of Emitting Chime Setup

    13. The number of emitting chime setup ✽ P - Management PIN - E - 7 - E - 0 - E: Constant call ✽ P - Management PIN - E - 7 - E - 1 - E: Call once ✽...

  • Page 25: Video Out Impedance Adjustment

    14. Video Out Impedance Adjustment ✽ P - Building (Management) PIN - E - 6 - E - 0 - E: Short Distance ✽ P - Building (Management) PIN - E - 6 - E - 1 - E: Long Distance ✽...

  • Page 26: Input Household Number

    15. Input Household number ✽ P - Management PIN - E - 15 - E - Household Number - E-Multi Sub number - E ✽ This function is for inputting household number with lobby phone in case of a guard station unit is not installed 4 3 2 1 Press the...
  • Page 27 <Multi sub number> ✽ What is Multi sub number? In case that one household have more than one unit, assigned number to identify every unit for proper communication. ✽ Master assigned as “O” ✽ Sub Serial Numbers are from 1 to 9. ✽...

  • Page 28: Paging The Household

    16. Paging the Household Enter theHousehold Number. Press the page button. A paging tone will sound. ex) unit 101 Press the Call button (E). Wait for a reply 17. Paging the Guardhouse Press the Guard button. Press the Page button. A paging tone will sound.

  • Page 29: Door Release Using The Household Pin

    18. Door Release Using the Household PIN ✽ Household Number - K - Household PIN - E Enter the Household Number. Press the Electronic key button. ex) To open the door of unit 101 Enter the Household PIN. Press the Page button. Press the Call button (E).

  • Page 30: Appendix (Various Program Summaries)

    20. Appendix (Various Program Summaries) ✽ Various PIN Programs 1. P - Old Management PIN - E - 0 - E - New PIN- E: Management PIN Change 2. P- Old Management PIN -E -1 - E - New PIN - E: Building PIN Change 3.

  • Page 31: How To Use Lobby Phone

    21. How to use lobby phone. ✽ Calling to household from lobby phone ✽ Household number – E Press the household number Press the Call button. ex)In case of household 101 Emit call sounds ✽ Opening door with household PIN ✽...

  • Page 32: Wiring Method

    22. Wiring Method 1) Lobby camera phone(DRC-GAC/GAB) - 31-...
  • Page 33 2) System Schematic - 32-...
  • Page 34 3) Terminal Board Wiring Diagram - 33-...
  • Page 35 3) DRC-GAC Expansion - 34-...

  • Page 36: Specifications

    After checking the entire check list, please contact customer service center. We will do our best to make you satisfy with our services. 24. Specifications Installation Method Flush mounted type Model Name DRC-GAC / DRC-GAB Transmission System Household (8 wires), Guard (4 wires) Power source DC 12V/0.5A Power consumption...
  • Page 37 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2010.09.103...
