User Manual

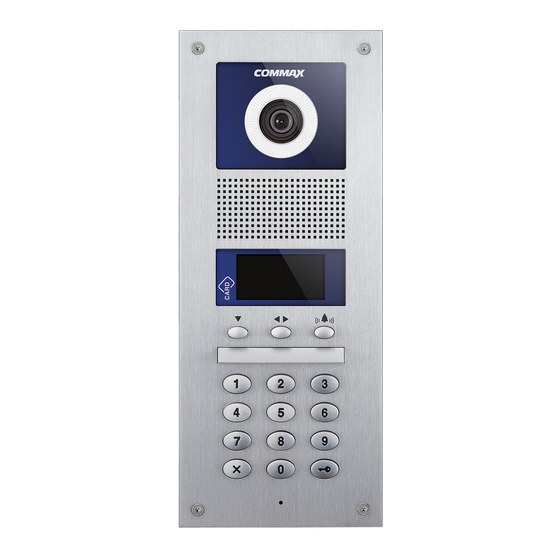

Lobby Camera Phone DRC-GUM/RF1
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
62

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRC-GUM/RF1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax DRC-GUM/RF1

Summary of Contents for Commax DRC-GUM/RF1

  • Page 1 User Manual Lobby Camera Phone DRC-GUM/RF1 • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    35. Part list ...........................58 36. Specifications and Features ....................58 37. RF-ID Model (Optional) ......................59 1. Greeting * Thank you for purchasing a COMMAX product * This product is a high tech Main Entrance interphone that supports electronic Please read this manual carefully.

  • Page 3: Safety Warning & Caution

    2. Safety Warning & Caution Please follow the things described below in order to prevent any danger or property damage. Warning Prohibition. It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or without an exception...
  • Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated smell or smoke is coming out repair or rebuild this product metallic or burnable materials batteries for the products of of the product, please plug out arbitrarily (please contact the into the ventilation hole.

  • Page 5: Parts

    3. Parts 3-1. The name of parts Description Description Camera Number button Night Lamp Cancel Button Speaker C-MIC OLED Display Electric Key Button RFID card receiver Extension Port Name Searching button / Camera angle Menu Page Button Wire Connection Port Program Button Reset Button Call Button...
  • Page 6 3-2. Important function ✽ Starting OLED display (Power ON OLED display) ✽ RF/ID Receiver ③(Optional) When open door by wireless card key, please tag it to this points.(See bellow photo). "Open door" message and Icon will be displayed in OLED. ✽...
  • Page 7 ✽ Name searching button ⑥(S : Search) Tenants name searching button. ✽ Electric key button ⑫(K : Key) Open door by Password Number. (Deactivate Password LOCK function only.) ✽ Cancel button ⑩(X : Cancel) When user wants to cancel function, press it. ✽...
  • Page 8 ✽ Call security 1. Press, name search button and call security which is top of the name list. 2. Press "9999" and press call button. ✽ Must know before use. 1) If you hear "beep beep beep..."during any program modes, please restart from the beginning.

  • Page 9: Password Type

    4. Password type 4-1. Password for the Management Office ("Management Password") A password for the Manager Factory default for the Manager Password is 4321. 4-2. Password for any buildings ("Building Password") A common password for a corresponding building. Factory default for the Building Password is 1234. 4-3.

  • Page 10: How To Input Password

    5. How to input Password 5-1. Press management Password • P - old Password - E - New Password - E • Password must be 4 digits. • "0000", "1234", "4321" can't be used as Password ① Press program button (P). ②...
  • Page 11 5-2. Press building Password • P - old Password - E - 1 - E - New Password - E • Password must be 4 digits. • "0000°", "1234", "4321" can't be used as Password ① Press program button (P). ②...
  • Page 12 5-3. Press house (Unit) Password • K - 20 - E- house Number - E- old Password - E - New Password - E • Password must be 4 digits. • "0000", "1234", "4321" can't be used as Password • Unit Password no. may not be changed because of Interphone types. (Some model of Interphone can change Password in house.

  • Page 13: Check House Password

    6. Check house Password 6-1. Check house Password • P - management Password - E - 16 - E - Household Unit Number E ① Press program button (P). ② Press management Password. ③ Press call button (E). ④ Press "16" (Set ID Number function key) ⑤...

  • Page 14: Set Building Number And Id To Lobby Panel

    7. Set building Number and ID to Lobby panel • This setting is mandatory because building Number and ID automatically are set up when lobby panel call house and security guard. • Max. 99 lobby panel can be installed for one building. 7-1.
  • Page 15 7-2. Set ID no. in Lobby Panel • P - Management Password - E - 3 - E - ID - E ① Press program button (P). ② Press management Password. ③ Press call button (E). ④ Press "3" (Set ID Number function key) ⑤...

  • Page 16: Rf Card Key Appliances

    8. RF card key appliances 8-1 RF card key test way • P- Management Password - E - 9 - E - Card Test - X(Cancel) • This function is only for the test of wireless card key ① Press down the (P) button ②...
  • Page 17 8-2. RF card key input way • P- Management Password - E- 10 - E - Place card close to the RF/ID receiver - X(cancel) <References> Up to 2048 cards can be registered(if not to connect with SecuMAX)
  • Page 18 8-3-1. RF card key separate deletion way • P - Management Password - E - 12 - E - Delete cards - X(Cancel) ① Press Program Button "P" ② Press Management Password ③ Press Call Button "E" ④ Press number "12"(separate delete number) ⑤...
  • Page 19 8-3-2. RF card key separate deletion way • P - Management Password - E- 12 - E - Identification number - E - X(Cancel ① Press Program Button "P" ② Press Management Password ③ Press Call Button "E" ④ Press number "12"(separate delete number) ⑤...
  • Page 20 8-4. RF card key registration check way • P- Management password - E - 13 - E - Check the cards - X(Cancel) ① Press Program Button "P" ② Press Management Password ③ Press Call Button "E" ④ Press number "13"(registration check) ⑤...
  • Page 21 8-5. RF card key all delete way • P - Management password - E - 11 - E - E • All deletion way is only useful when initially set up, unless all registered cards are to be deleted. ① Press down "P" button ②...
  • Page 22 8-6. RF card key capacity change way • P- Management password - E - 19 - E - 0 - E : Up to 2048 RF Cards can be registered • P- Management password - E - 19 - E - 1 - E : Unlimited RF Cards can be registered ①...
  • Page 23 8-7. RF card key data transmission • P - Management Passwords - E - 32 - E - Press destination lobby phone number - E ① Press Program Button "P" ② Press Management password ③ Press Call Button "E" ④ Press number "32" for data transmission ⑤...
  • Page 24 8-8. RF card key data reception • P- Management Passwords - E - 33 - E - Press source lobby phone number - E ① Press Program Button "P" ② Press Management password ③ Press Call Button "E" ④ Press number "33" for data reception ⑤...

  • Page 25: How To Set The Direct Call Number

    9. How to set the direct Call number • P - Management Password - E - 4 - E - Household number - E • This function is to set the direct call number ① Press Program Button "P" ② Press Management Passwords ③...

  • Page 26: Door Release By Internal Information Forwarding To Secumax Way

    10. Door release by internal information forwarding to SecuMAX way • P - Management password - E - 22 - E - 0 - E : Forwarding to SecuMAX disabled • P - Management password - E - 22 - E - 1 - E : Forwarding to SecuMAX enabled •...

  • Page 27: Door Opening Hours Setting

    11. Door opening hours setting • P - Management Passwords - E - 5 - E - Opening hours - E • This function is to control the common entrance door opening hours ① Press Program Button "P" ② Press Management Passwords ③...

  • Page 28: Line-By-Line Call Function Setting

    12. Line-by-line call function Setting • P - Management password - E - 21 - E - 0 - E: available for entire house call • P - Management password - E - 21 - E - Line number - E : call only specified line ex) In case 1 line ~ 2 line, input "0102"...

  • Page 29: Call Tones Selection

    13. Call Tones selection • P - Management password - E - 7 - E - 0 - E : Melody sound • P - Management password - E - 7 - E - 1 - E : Bell(Ringer sound) •...

  • Page 30: Setting The Number Of Call Ring Repetitions

    14. Setting the Number of Call Ring Repetitions • P - Management Password - E - 25 - E - 0 - E : Continuous call ring enabled. • P - Management Password - E - 25 - E - 1 - E : 1 time Call ring enabled. •...

  • Page 31: Door Release By External Information Forwarding To Secumax Way

    15. Door release by external information forwarding to SecuMAX way • P - Management password - E - 18 - E - 0 - E : Forwarding to SecuMAX disabled • P - Management password - E - 18 - E - 1 - E : Forwarding to SecuMAX enabled •...

  • Page 32: Set To Be Forced Opening The Main Entrance Door By Secumax

    16. Set to be forced opening the Main Entrance door by SecuMAX • P - Management password - E - 29 - E - 0 - E : Forced opening by SecuMAX disabled • P - Management password - E - 29 - E - 1 - E : Forced opening by SecuMAX disabled •...

  • Page 33: Selecting The Wiring Method

    17. Selecting the Wiring Method • P - Management Password - E -6 - E - 4 - E : common 4 wire method • P - Management Password - E - 6 - E - 6 - E : common 6 wire method •...

  • Page 34: Video Out Impedance Adjustment Setting

    18. Video Out Impedance Adjustment Setting • P - Management Password - E - 8 - E - 0 - E : Short distance transmission. • P - Management Password - E - 8 - E - 1 - E : Long distance transmission. •...

  • Page 35: Registration Of Household Unit Number

    19. Registration of Household Unit Number • P - Management Password - E - 15 - E - Call Security from the monitor.- number of household - E - serial number - E • This method applies to the case that there is no security station installed. Calling security from the monitor will direct the call to the lobby phone.
  • Page 36 ① Press Program Button "P". ② Press Management password. ③ Press Call Button "E". ④ Press "15" (number fifteen). ⑤ Press Call Button "E". ⑥ From a household unit, call security. The factory default household unit number appears on the OLED display of the lobby phone. Please Press the actual unit number. ⑦...

  • Page 37: Checking Videophone Status Of Household Units

    20. Checking Videophone Status of Household Units • P - Management password - E - 14 - Unit Number - E - serial number - E • This function is to check the status of videophones installed in each household unit.
  • Page 38 ① Press Program Button "P". ② Press Management Password. ③ Press Call Button "E". ④ Press "14" (number fourteen). ⑤ Press Call Button "E". ⑥ Press the Unit Number and press Call Button "E". ⑦ Press "0" (number zero as Master lobby phone or Press a corresponding lobby phone number) and press Call Button "E".

  • Page 39: Setting The Keypad Led Option

    21. Setting the Keypad LED Option • P – Management Password – E – 20 – 0 – E : Keypad LED OFF • P – Management Password – E – 20 – 1 – E : Keypad LED ON •...

  • Page 40: Activation Of Electronic Key (Password) Function

    22. Activation of Electronic Key (Password) Function • P - Management Password - E - 31 - 1 - E : Electronic Key (Password) enabled. • P - Management Password - E - 31 - 0 - E : Electronic Key (Password) disabled. •...

  • Page 41: Setting The Volume Of Voice And Beep Sound

    23. Setting the Volume of Voice and Beep Sound • P - Management Password - E - 30 - E - Beep Volume (1~2) - Voice Volume (1~7) - E • This function enables the adjustment of Beep & Voice volume. ①...

  • Page 42: Method Of Name Data Sending

    24. Method of name data sending • P - Management Password - E - 34 - E - Press destination lobby phone number - E ① Press Program Button "P". ② Press Management Password. ③ Press Call Button "E". ④ Press number "34" (setting number of caller name) ⑤...

  • Page 43: How To Receive The Name Of The Data

    25. How to receive the name of the data • P - Management Password - E - 35 - E - Press source lobby phone number - E ① Press Program Button "P". ② Press Management Password. ③ Press Call Button "E". ④...

  • Page 44: How To Set The Video Floor Distributor(Or Cdv Converter) Data

    26. How to set the Video Floor Distributor (or CDV Converter) data • P - Management Password - E - 36 - E - Module ID - E - Setting the data - P • This function is to set household data of the video floor distributor or CDV converter when it is installed.
  • Page 45 ① Press Program Button "P". ② Press Management Password. ③ Press Call Button "E". ④ Press number "36" (Program Number). ⑤ Press Call Button "E". ⑥ Enter the Module ID. ⑦ Enter the household number, password and Monitoring Lobby ID. - If you want to move cursor, Press the Searching Button(S).

  • Page 46: How To Set The Audio Floor Distributor Data

    27. How to set the Audio Floor Distributor data • P - Management Password - E - 36 - E - Module ID - E - Setting the data - P • This function is to set household data of the audio floor distributor when it is installed. •...
  • Page 47 ① Press Program Button "P". ② Press Management password. ③ Press Call Button "E". ④ Press "36" (Program Number). ⑤ Press Call Button "E". ⑥ Enter the Module ID. ⑦ Enter the household number, password and DTMF setting value. - If you want to move cursor, Press the Searching Button(S). ⑧...

  • Page 48: Setting The Door Release By Building Password

    28. Setting the door release by building password 28-1. Setting the Door Release by Building Password • P – Management Password – E – 28 – 1 – E : Door release by Building Password enabled. • P – Management Password – E – 28 – 0 – E : Door release by Building Password disabled.
  • Page 49 28-2. Using a door release by Building Password function.

  • Page 50: When You Want To Call A Household

    29. When you want to call a household 1) called to a household 2) Call by Extension panel button...
  • Page 51 3) call by searching name...

  • Page 52: When You Want To Call A Guard Station

    30. When you want to call a Guard Station 31. Door Release by Unit Password...

  • Page 53: Supplement (Summary Of Various Programs)

    32. Supplement (summary of various programs) Setting Passwords 1. P–Previous Management Password–E–0–E– New Management Password–E: Management Password Registration. 2. P-Previous Building Password-E-1-E-New Building Password-E : Building Password Registration 3. K-20-E-Household Unit Number-E-Previous Unit Password-E-New Unit Password-E : Unit Password Registration 4.
  • Page 54 SecuMAX Management 1. P-Management Password-E-18-E : Set to Door release by external information forwarding to SecuMAX. 2. P-Management Password-E-22-E : Set to Door release by internal information forwarding to SecuMAX. 3. P-Management Password-E-29-E : Set to be forced opening the Main Entrance door by SecuMAX.

  • Page 55: Wiring Information

    33. Wiring Information 1) Guard interphone GateView GuardStation 481 GuardStation...
  • Page 56 2) Sensor connection method 3) Extension Panel <Caution> • You can use DRC-nUX(n is the number of button) for extending. (MAX. 5 units)
  • Page 57 4) Entrance interphone (DRC-GUM) <Caution> • If installed outdoor, it requires extra molding for water-proof and rainshield. • Recommanded height is pertinent from 1450mm ~ 1500mm...
