User Manual
Color Door Camera DRC-4Y
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax DRC-4Y
Summary of Contents for Commax DRC-4Y
- Page 1 User Manual Color Door Camera DRC-4Y • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
-
Page 2: Table Of Contents
Contents 1. Introduction........... 2 2. Cautions ............3 3. Overview............4 4. Installation............. 5 5. Package contents ......... 6 6. Specification ..........7... -
Page 3: Introduction
1. Introduction The model number is located on the bottom. Please record the serial number in the space provided below. Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. Serial No. To prevent fire or shock hazard, do not expose the unit to rain or moisture. -
Page 4: Cautions
2. Cautions Do not install it to extremely Do not install it under humid Do not install it to the Do not install it to the place ▲ ▲ ▲ ▲ environment. where it will be exposed to oil hot or cold places. flickering place. -
Page 5: Overview

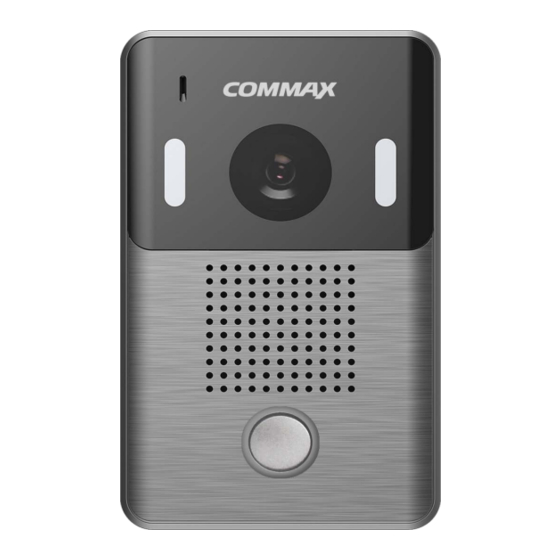

3. Overview Microphone : It delivers voice from a visitor ① Camera Lens : Transferring image ② ※It should be kept clean LED & Illumination Sensor : Offer clear image at night ③ ④ Speaker : It delivers voice to a visitor ⑤... -
Page 6: Installation
4. Installation Monitor Cable Power Source SCREW GH1T 4*18(2EA) Door Release Door Release Cable SCREW BHM M3*6(1EA) [FIG-1] [FIG-2] 1. Fix a bracket on a wall with screws 2. Connect wire #1, 2, 3, 4 on the back side of a door camera with a monitor as shown in [FIG-2] (#1 : VOICE, #2 : GND, #3 : DC12V, #4 : VIDEO) 3. -
Page 7: Package Contents
5. Package contents User Mamual CAMERA(DRC-4Y) BRACKET SCREW BHM M3x6(1EA) SCREW GH1T 4x18(2EA) -
Page 8: Specification
6. Specification DRC-4Y Model No. (Supplied from monitor) Rated Voltage Wiring 4 wires (polarity) to a monitor Wiring 2 wires (non-polarity) to a electric door lock Video Transmission Standard NTSC or PAL STANDARD. Sensor Type C-MOS(COLOR / 0.52 megapixel) Transmission... - Page 9 Memo...
- Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2019.04.105...
