User Manual

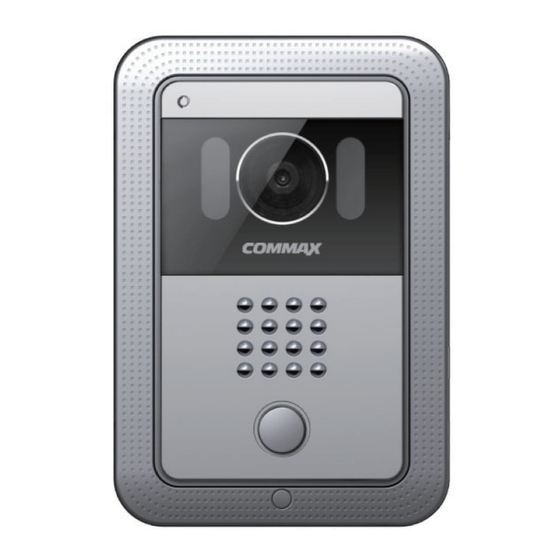

Door Camera DRC-4FC/4FB
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Commax DRC-4FC
Summary of Contents for Commax DRC-4FC
-
Page 1: User Manual
User Manual Door Camera DRC-4FC/4FB • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introduction .............2 2. Important Safeguard ........3 3. Features............5 4. Wiring & Installation ........7 5. PARTS............9 6. Specifications..........10... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguard
2. Important Safeguard ▲ Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service personnel under the following conditions: ⓐ when the power is damaged. ⓑ if liquid has been spiled or objects have hallen into the unit ⓒ... - Page 5 ▲ Power Line -The commax door aamera system should not be located near overhead power lines or other electric light or power circuits, or where it can fall into power lines or circuits. When installing a door camera system, avoid dangerous contact with power lines or circuits.
-
Page 6: Features
3. FEATURES... - Page 7 No. FEATURES No FEATURES FRONT PANEL LEVER FOR ANGLE ADJUSTMENT MICRO PHONE TERMINAL 10 DOOR RELEASE CABLE LENSE WINDOW 11 VOLUME ADJUSTMENT SPEAKER CALL BUTTON SCREW HOLE...
-
Page 8: Wiring & Installation
4. Wiring & Installation ❶ Secure it to the wall hole and wall mounted hole to install. [FIG-1] ❷ Wire the household monitor cables with matched polarity as shown below. [FIG-2] (#1:Voice, #2:GND, #3:DC12V, #4:Video) ❸ In the wall-hanging, check the screen of monitor inserted from the groove and check if the screen is working well as you want. -
Page 10: Parts
5. PARTS... -
Page 11: Specifications
6. Specifications MODEL NO. DRC-4FC Raged Viltage (From Monitor) Wiring 4 Wire In Polarity (House/Door Release) 2 Wire In Non-polarity Pickup Device CMOS IMAGE SENSOR Conversation Method Synchronous TV System NTSC or PAL Min. Illumination 0.1 LUX (300mm From Camera) - Page 12 MODEL NO. DRC-4FB Raged Viltage (From Monitor) Wiring 4 Wire In Polarity (House/Door Release) 2 Wire In Non-polarity Pickup Device CMOS IMAGE SENSOR Conversation Method Synchronous TV System EIA or CCIR Min. Illumination 0.1 LUX (300mm From Camera) Illumination INFRARED LED(5pie) 3EA Image Adjustment Horizontal 75°, Vertical 55°...
- Page 13 Memo...
- Page 14 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2013.11.105...
