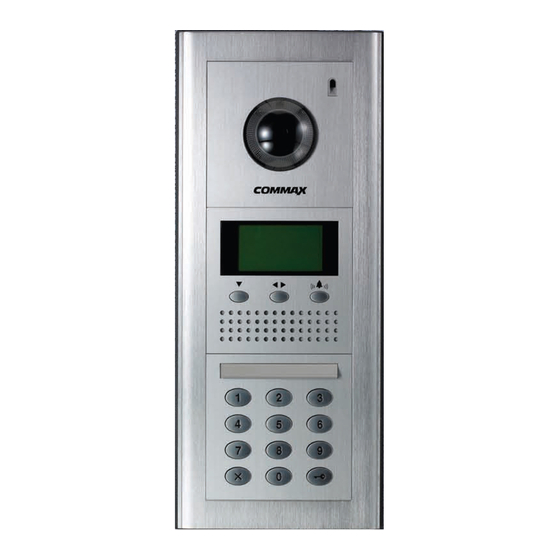

MULTI
ENTRY UNIT
Printed In Korea/ 2007.12
Model No. DRC- MSC / MSB
• Thank you for purchasing our COMMAX product.
• Please carefully read this User's Guide (in particular, precautions for safety)
before using the product and follow the instructions to use your productexactly.
• The company is not responsible for any safety accidents caused in abnormal oper-
ation of the product.
