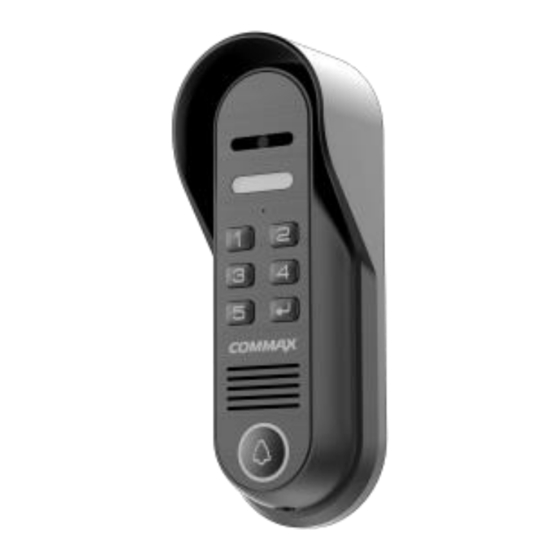

Door Camera DRC-4CPNK
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax DRC-4CPNK
Summary of Contents for Commax DRC-4CPNK
-
Page 1: User Manual
User Manual Door Camera DRC-4CPNK • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: The Names Of Each Part
1. The names of Each Part 2. Package Front side Back side ⑥ Call Button ① Camera ⑦ Mounting Holes ② LED Lamp ⑧ Monitor cable ③ Microphone ⑨ DC power cable ④ Key buttons ⑩ Door release cable ⑤ Speaker ⑪... -
Page 3: Wiring And Installation
3. Wiring & Installation 1. Align holes on the wall where the unit is to be installed with mounting brackets hole and secure. FIG-1 : Install the camera at a 30 ˚angle to the left (install the bracket in reverse to angle 30 ˚to the right) FIG-2 : Install the camera at a perpendicular angle to the front... - Page 4 [FIG-1] [FIG-2]...
- Page 5 ● Please refer to the below images regarding ● You can adjust speaker volume using driver as shown below. [FIG-4] the installation position of the product. 55˚ 60cm [FIG-4]...
-
Page 6: Specification
4. Specification Model DRC-4CPNK specification Image Sensor CMOS 1/3" Sensor Resolution 0.52 megapixel 12V (supplied from the Monitor) Power source 0.5A (Adaptor) Standby : 1W , Max : 4.2W Power consumption Wiring(household) Monitor 4Wires(polarity), Adaptor 2Wires(Polarity) Call mode Duplex Horizontal angle 48.6°... - Page 7 5. How to open the door using keypad button * Note: If you press 'Call button' during operation, you can cancel the current operation. 1. How to set the door open password 2. How to open door using password 2-1. Lock 1 open : ‘1’ + 'M' + Password + ‘M’ 1-1 If you know the current password ☞...
- Page 8 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2016.04.105...
