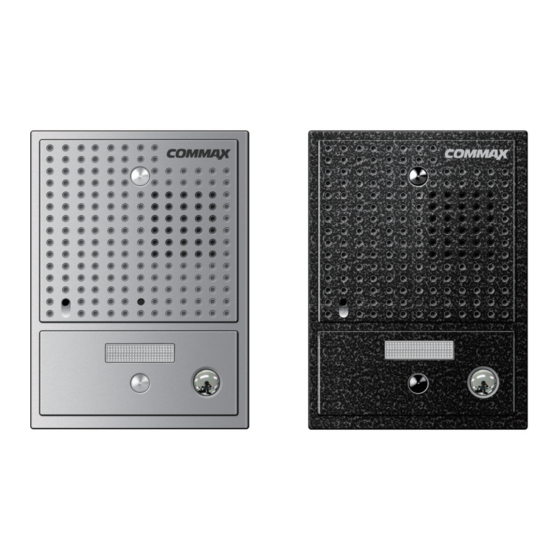

Commax DRC-4CGN2 User Manual
  1. Manuals
  2. Brands
  3. Commax Manuals
  4. Intercom System
  5. DRC-4CGN2
  6. User manual

Commax DRC-4CGN2 User Manual

Hide thumbs

Advertisement

Quick Links

User Manual

DOOR CAMERA DRC-4CGN2
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
www.safemag.ru
www.safemag.ru

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRC-4CGN2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax DRC-4CGN2

Summary of Contents for Commax DRC-4CGN2

  • Page 1: User Manual

    User Manual DOOR CAMERA DRC-4CGN2 • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.

  • Page 2: Table Of Contents

    www.safemag.ru Table of Contents 1. Introduction .............2 2. Important Safeguards ........3 3. Overview............4 4. Wiring and Installation ........6 5. Package............9 6. Specification ..........10 www.safemag.ru...
  • Page 3 6. Specification DRC-4CGN2 Model Image Sensor CMOS 1/4" specification Power source (supplied from the Monitor) Wiring(household) Polar 4 wires Call mode Duplex Camera angle horizontal angle 47°, vertical angle 34° Angle adjustment Fixed Format NTSC or PAL STANDARD Lamp...

  • Page 4: Introduction

    The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No.

  • Page 5: Important Safeguards

    www.safemag.ru 2. Important Safeguards ▲ Damage Requiring Service : This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions ⓐ when the power is damaged. ⓑ if liquid has been spoiled or objects have hallen into the unit ⓒ...

  • Page 6: Overview

    www.safemag.ru 3 Name of each part and function www.safemag.ru...
  • Page 7 www.safemag.ru ① Front panel ② Mounting Holes ③ Speaker : Transmits sounds from the household ④ Camera Lens : keep cleaning up from dust or foreign substances. ⑤ LED Lamp : The LED lamp is turned on for clear view during night. ⑥...

  • Page 8: Wiring And Installation

    www.safemag.ru 4. Wiring and Installation 1. Cout out the MOUNTING TEMPLATE included in the manual and use it to drill mounting holes( 6.5) on the wall. insert Concrete anchors in the holes. Ø 2. Wire the household monitor cables as shown below with matched polarity as picture below. [FIG-2] (#1:RED/VOICE, #2:BLUE/GND, #3:YELLOW/DC12V, #4:BLACK/VIDEO) 3.
  • Page 9 www.safemag.ru www.safemag.ru...
  • Page 10 www.safemag.ru ● Please refer to the below images regarding the installation position of the product. 60cm www.safemag.ru...

  • Page 11: Package

    www.safemag.ru 5. Package Screw wrench M4X30 Anchor Bolt Anchor Bolt www.safemag.ru...

  • Page 12: Specification

    513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com PM104CGN2000 Printed In Korea / 2013.10.105 www.safemag.ru...
