User Manual

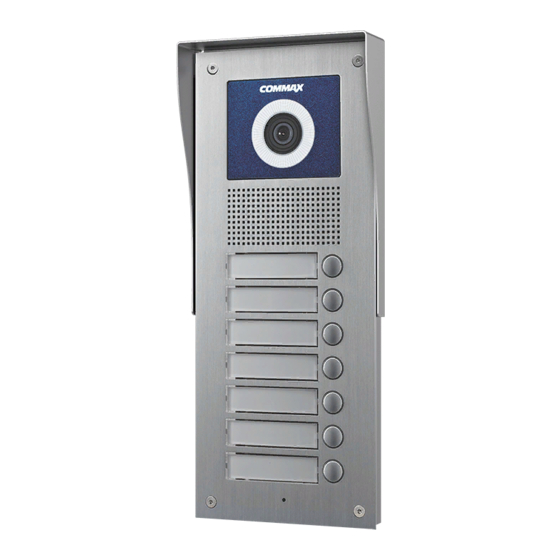

DOOR STATION DRC-nUC
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax DRC-nUC
Summary of Contents for Commax DRC-nUC
-
Page 1: User Manual
User Manual DOOR STATION DRC-nUC Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introduction.................2 2. Important Safeguard............3 3. Overview................4 4. How to use .................6 5. Wiring .................7 6. Part List ................13 7. Installation ...............14 8. Specification ..............15... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguard
2. Important Safeguard Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions: when the power is damaged. if liquid has been spilled or objects have fallen into the unit if the equipment has been exposed to rain or water. -
Page 5: Overview
3. Overview FUNCTIONS FUNCTIONS CAMERA LIGHTNING SENSOR SPEAKER LIGHT(WHITE LED) NAME CARD CALL BUTTON... - Page 6 Notice 1. DRC-nUC is a Master unit which has functions to call or communicate with a house unit. 2. “ n “ stands for the No. of house that DRC-nUC can call. ✽ DRC-nUC : DRC-2UC / 3UC / 4UC / 5UC / 6UC / 7UC are available.
-
Page 7: How To Use
4. How to use FEATURES AND CAUTIONS 1. The power supply of this product is DC12V( Including LED lamp of name label etc.) 2. If user answer the household phone when you call from the door camera(entrance), you can talk. 3. -
Page 8: Wiring
5. Wiring (1) DRC-2UC... - Page 9 (2) DRC-3UC...
- Page 10 (3) DRC-4UC...
- Page 11 (4) DRC-5UC...
- Page 12 (5) DRC-6UC...
- Page 13 (6) DRC-7UC...
-
Page 14: Part List
6. Part List... -
Page 15: Installation
7. Installation 1) Fix the back box onto the wall (BOTTOM CASE). [FIG-1] 2) Fix the top case onto the back box (BOTTOM CASE)with screws [FIG-1] 3) Please refer to the below images regarding the installation position of the product [FIG-2] [FIG-1] [FIG-2]... -
Page 16: Specification
8. Specification Model DRC-nUC Voltage Power Consumption 500mA ( MAX ) Wiring 4WIRES (POLARITY) Communication DUPLEX Min. Lux. 0.1Lux(UP TO 300mm FROM THE CAMERA) Light WHITE LED(3pie) 2EA BUILT-IN Camera Angle HORIZONTAL 85°, VERTICAL 63° Angle UP 13° , DOWN 13°... - Page 17 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2012.09.105...
- Page 18 MEMO...
