User Manual

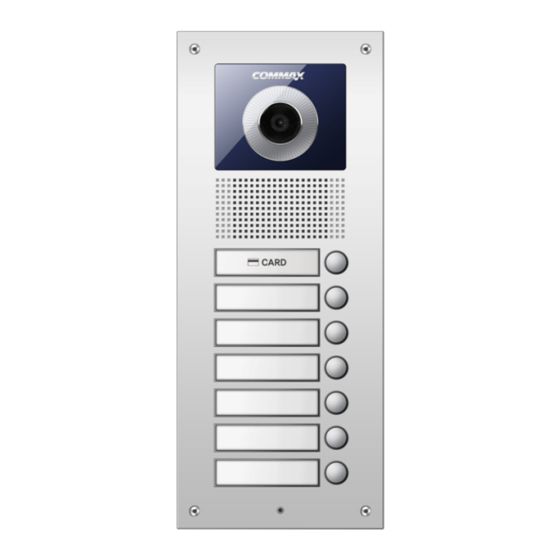

DOOR STATION DRC-nUC/RF1
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Commax DRC-UC/RF1 Series
Summary of Contents for Commax DRC-UC/RF1 Series
- Page 1 User Manual DOOR STATION DRC-nUC/RF1 • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
-
Page 2: Table Of Contents
Contents 1.Overview ·································································································· 2. How to use ····························································································· 3. Method of using RF card key ······································································· 4. Wiring····································································································· 5. Installation ··································································································7 6. Part List ····································································································7 7. Specification ·······························································································8 8. RF-ID Model ·······························································································9... -
Page 3: Overview
1. Overview 2. How to use FEATURES AND CAUTIONS 1. The power supply of this product is DC12V ( Including LED lamp of name label etc.) 2. If user answer the household phone when you call from the door camera(entrance), you can talk. 3. -
Page 4: Method Of Using Rf Card Key
3. Method of using RF card key - Caution : You can use only mini type RF card by COMMAX * Type of button Button 1 : Master card registration button (For registration purpose) -> rear REGISTRATION button Button 2 : Master Card registration button (For card deletion purpose) -> rear DELETE button Button 3 : Deletion button / Front (Outer) Option button 1. - Page 5 2. Door release card registration/deletion 1) Card registration (1) On tagging the master card for registration, LED slowly flickers with beep sound. (Entering registration mode). (2) Beep sound comes out when door release card is tagged. (3) In case more than 1 cards have to be registered, repeat above (2) procedure. (4) Press button 3.
-
Page 6: Wiring
4. Wiring (1) DRC-1UC/RF1 (2) DRC-2UC/RF1 (3) DRC-3UC/RF1... - Page 7 (5) DRC-5UC/RF1 (4) DRC-4UC/RF1 (6) DRC-6UC/RF1...
-
Page 8: Installation
5. Installation 6. Part List Please refer to the below images regarding the installation position of the product... -
Page 9: Specification
7. Specification Model DRC-nUC/RF1 Power source DC12V,1A Wiring 4 Wires(Polarity) Communication Hands-free(Duplex) Min. Lux. 0.1Lux(UP TO 300mm From the Camera) Light White LED(3pie) 2EA Built-In Camera Angle HORIZONTAL : 82°, VERTICAL : 66.5° Angle UP 13°, DOWN 13° Camera Module C-MOS Temperature -20℃(tested up to -40℃) ~ +50℃, 95%... -
Page 10: Rf-Id Model
8. RF-ID Model Model Name DRC-nUC/RF1 (‘n’ is the number of households what can be called) Frequency 13.56MHz Antenna power range Under 47.5mV/m within 10 meter radius Power DC 5V Emission Type Number of Channel 1 Channel Modulation method Communication method Simplex Operation Method Temperature -20℃(tested up to -40℃) ~ +50℃, 95%... - Page 11 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2016.10.105 PM10NUC00010...
