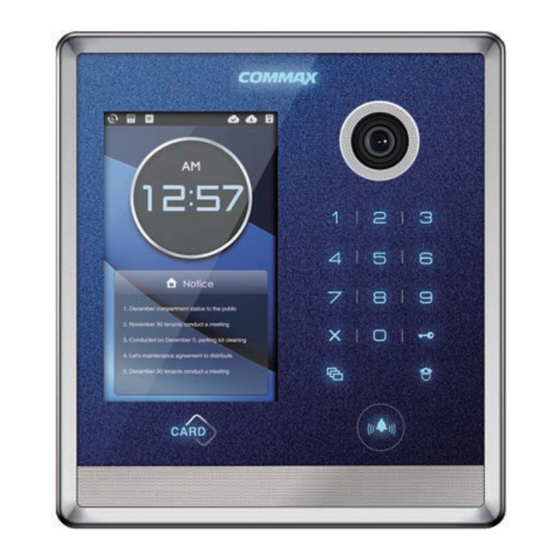

User Manual COMMAX LOBBY PHONE DRC-703S • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. -
Page 2: Table Of Contents
Greetings ● Thank you for choosing COMMAX. ● Please read this manual carefully before you use the product. Table of contents Greetings ........................1 Contents table ......................1 1. Warnings and caution ...................2 2. Part names......................4 3. Main Screen Setting....................5 4. Security Call ......................6 5. -
Page 3: Warnings And Caution
1. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Warning Prohibition. It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or without an exception injury if violated. - Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.
-
Page 5: Part Names
2. Part names ① ⑪ Camera Program Button ② ⑫ Cancel Button ③ ⑬ RF CARD Receiver Speaker ④ ⑭ Mike Reset ⑤ ⑮ Camera Adjustment Part ⑥ ⑯ Number Key Button DC 14V ⑦ ⑰ Electric Key Button(in case of input the password) RS-485/Zigbee ⑧... -
Page 6: Main Screen Setting
3. Main Screen Setting Main Screen ● Status ● Icon Description Icon Description Lan Connection Registered server status Display out post lobby phone Not Registered server status Display building lobby phone Local Server connection status Display Video Codec(MPEG-4) Display Video Codec(H.264) RF Card Data save status... -
Page 7: Security Call
4. Security Call ① Push (Security Guard Post) Button ② Push (Call) button ③ Call sound is ringing and call Security Guard Post. ④ Call Security Guard Post when guard answer call. (Time: 1 min.) ⑤ Press "X" button when terminate call. ⑥... -
Page 8: Call House
5. Call house Communication call between residence ● When building number is set in advance : When building No. already registered to Call Prefix Picture2. Screen for registering house No. ① Input unit No. to key board. Ex) Unit 101 input ‘101’ ②... - Page 9 When building number is NOT set in advance : When building number hasn't been registered Call Prefix yet. Picture3. Building house No. register screen ① Input Building No. to key board. Ex) Building 101 input ‘101’ ② Input unit No. to key board. Ex) Unit 101 ...
-
Page 10: Access Authorization
6. Access authorization Opening the entrance with RF card. ● ● ① Tag RF card to 'Card tagging window’. ② The common entrance get be opened with a vocal message, "Door opens” when the access is successful. ③ The entrance does not be opened when the access fails with sound. Picture4. - Page 11 Picture5. Input password (PIN) Use password for accessing when system is OFF-Line ● ● (No connection with Local server) ① Push (Key) button. ② Input PIN number. ③ Push (call) button. Please, should delete OFF-LINE PIN number when On-Line mode is activated Use password for accessing when system is ON-Line ●...
-
Page 12: Set Up
7. Set up Set up ● 1 2 3 1. Push button. 2. Input PIN number. 4 5 6 3. Push (call) button. 홈버튼 외출/방범 버튼/LED 7 8 9 We recommend user change initial password (0000) then use products for security. 홈버튼... - Page 13 1 : Max Call Line (Input call Max. line) Attention : If Min Call Line is bigger than Max Call Line, you can’t call it. 외출/방범 버튼/LED 5: Position (Set DRC-703S location) 홈버튼 외출/방범 버튼/LED button is for upper ground, button is for underground.
- Page 14 1 : Brightness (Control Video Brightness ) 2 : Contrast (Control Video Contrast) 3 : Saturation (Control Video Saturation) 4 : Hue (Control Video Hue) 5 : Initialization (Initialize Video) Initialize all setting value from Video menu. 4 : Extra Config+ 0 : Language (Select language) 1 : Skin Theme 0 : Auto...
- Page 15 Initial Off-Line password is “123456”. 6 : Reboot: (System rebooting) 7 : System Reset (Initialize all setting and back to factory setting) Do not initialize IP after changing IP address. 5 : Database+ 0 : Password Down. (Download house password) 1 : RF-Card Down.
-
Page 16: Wiring Diagram
8. Wiring Diagram Pay attention to check polarity when install lobby panel. - Page 17 Memo...
- Page 18 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2014.10.104...
