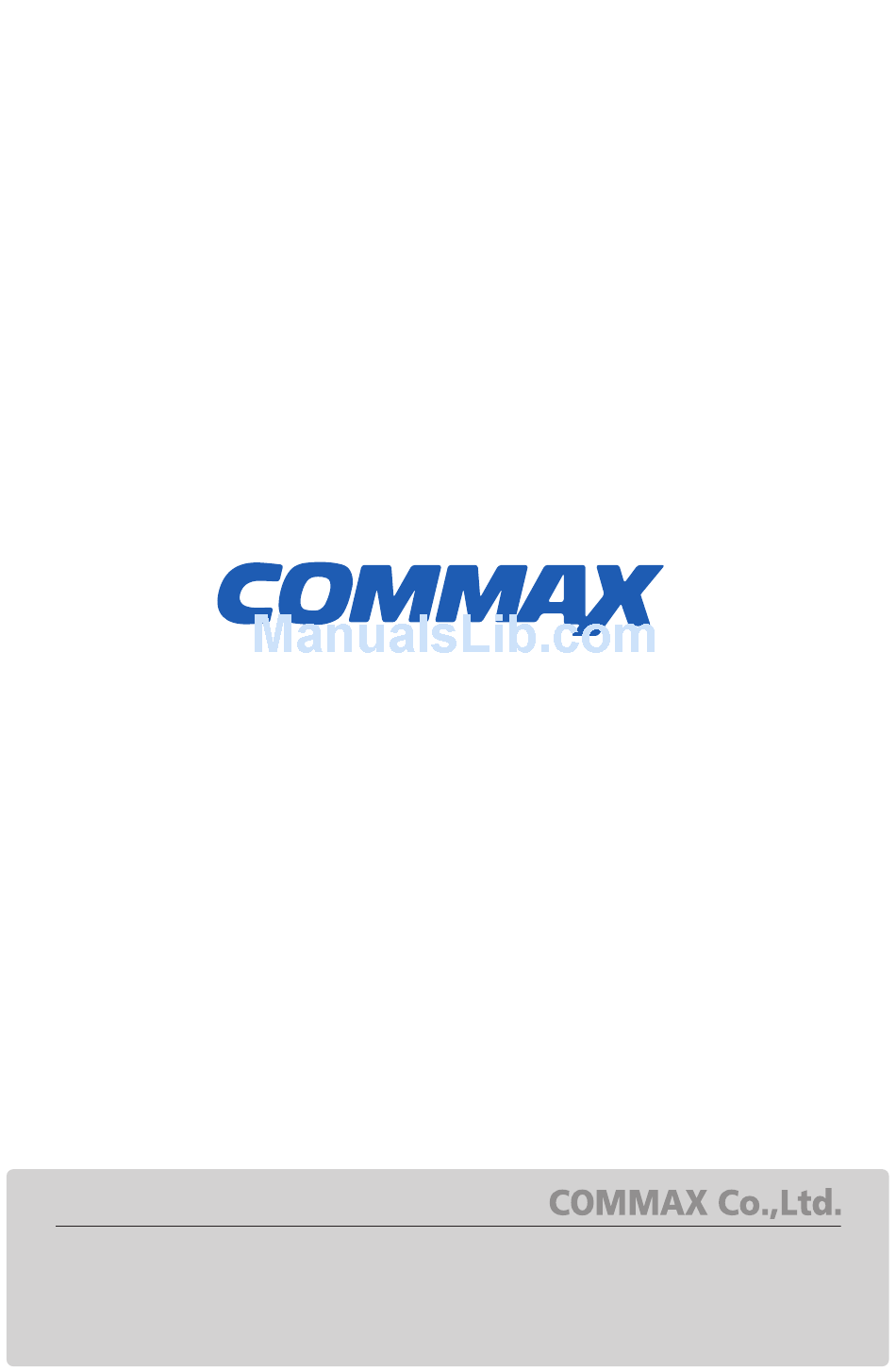

- Page 1 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2011.01.103...
-
Page 2: User Manual
User Manual DOOR STATION DR-2GN / 2GRN • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. - Page 3 1. Greeting ..............2 2. Overview ..............3 3. Wiring and Installation..........4 4. Specification ............... 7 1. Greetings * Thank you for purchasing a COMMAX product. * Please read this manual before use and properly follow its instructions. - 2 -...

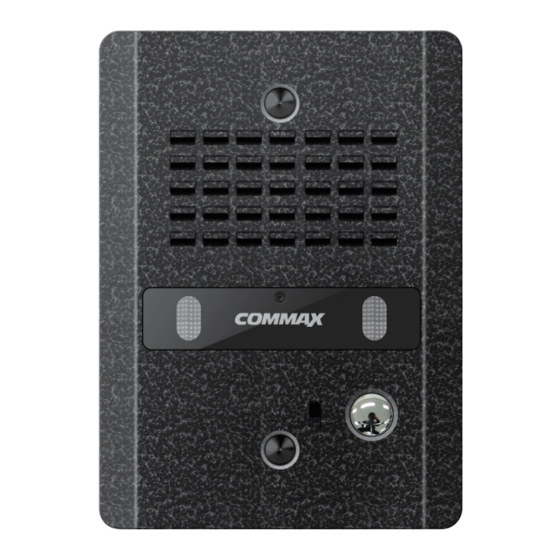

- Page 4 2.Overview Contents Name 1 Front case 2 Stationary hole 3 Speaker trasmits visitor’ s voice (outdoor->indoor) 4 Operation Status LED 5 Microphone transmits householder’ s voice(indoor-outdoor) 6 Call button 7 Door Release CABLE 12V Voltage output 8 CABLE (White, Black -> Room station) - 3 -...
- Page 5 3. Wiring & Installation 1. Connect Room station cables as appeared in the figure.(polarity with care) 2. Connect Door Release cable as appeared in the figure. (applied only for DR-2GR) 3. Check to see whether the system functions. - 4 -...
- Page 6 4. If there is no hole on the wall, you can allocate the wire on the groove around the case as appeared in the figure. - 5 -...
- Page 7 5. Place the system on the wall and mount with screws supplied. - 6 -...
- Page 8 4. Specification Model DR-2GN/2GRN specification Wiring System (household) DOOR PHONE 2-wire system Communication method Synchronous Call System Rated voltage (Supplied from the DOOR PHONE) Operating Temperature -10℃ ~ +40℃ Dimensions 93.5(W) × 126(H) × 18(D) Weight (g) Communication distance 50m /ø0.8...
