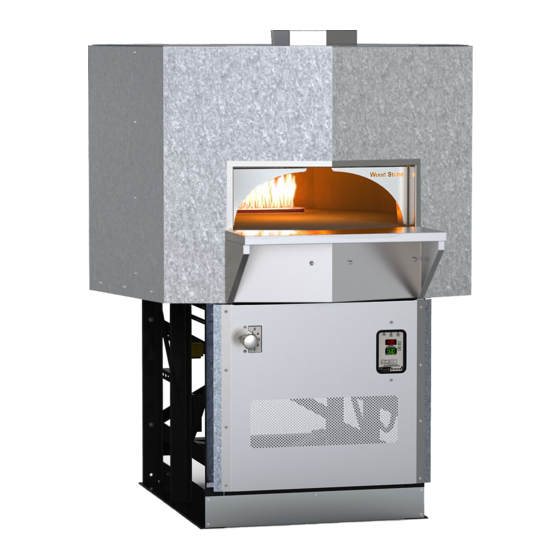

Summary of Contents for Wood Stone WS-MS-4-RFG-NG
-
Page 1: Installation And Operation Manual
STONE-FIRED COOKING EQUIPMENT Gas-Fired Oven RFG Models Installation and Operation Manual Additional Copies Available Upon Request 1801 W. Bakerview Rd. Bellingham WA 98226 USA Toll-Free 800-988-8103 Tel. 360-650-1111 Fx. 360-650-1166 www.woodstone-corp.com Revised October 2005... -
Page 2: For Your Safety
Wood Stone WS-MS-(4,5,6,7)-RFG Gas Oven Installation and Operating Instructions DO NOT THROW THIS MANUAL AWAY RETAIN THIS MANUAL FOR FUTURE REFERENCE. Additional copies of this manual and prompt responses to service/maintenance questions are available from Wood Stone @ 800-988-8103. IMPORTANT: Consult your local gas supplier for a statement outlining a procedure to be followed in the event you smell gas. -
Page 3: Unloading And Moving
RFG Oven Installation and Operation Manual UNLOADING AND MOVING LIFTING THE OVEN 1. USING A CRANE The oven arrives with four lifting eyes attached. When craning a Wood Stone oven, use a spreader bar with a two-legged sling rigged on each end. The spreader bar should be of a sufficient length to keep the sling from contacting the oven. -
Page 4: Installation Clearances
RFG Oven Installation and Operation Manual INSTALLATION CLEARANCES IF THIS OVEN IS NOT PROPERLY INSTALLED A FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THESE INSTALLATION INSTRUCTIONS. A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. - Page 5 RFG Oven Installation and Operation Manual INSTALLATION CLEARANCES The following clearance information applies to all Wood Stone Mountain Series(non-stucco) Ovens Any facade materials above and 6" to either side of the doorway of the oven, must be NON-COMBUSTIBLE. 14 " Top clearance to combustible building materials.
-
Page 6: Facade Details
1 2 3 4 5 6 7 8 9 0 1 1 2 3 4 5 6 7 8 9 0 1 1 2 3 4 5 6 7 8 9 0 1 Go to www.woodstone-corp.com for detailed instructions for constructing a facade around a Wood Stone Oven. -
Page 7: Gas Specifications
Note: The gas valve is shipped in the 'on' position. Factory specified individual burner manifold pressures for RFG models equipped to burn Natural Gas. MODEL SV-2 WS-MS-4-RFG-NG 5" WS-MS-5-RFG-NG 4.75" WS-MS-6-RFG-NG 4.75"... - Page 8 RFG Oven Installation and Operation Manual GAS SPECIFICATIONS Hourly Natural Gas BTU input rates for Wood Stone RFG gas ovens Model Hourly BTU Input Rate WS-MS-4-RFG-NG 68,000 WS-MS-5-RFG-NG 105,000 WS-MS-6-RFG-NG 105,000 WS-MS-7-RFG-NG 123,000 Hourly Propane BTU input rates for Wood Stone RFG gas ovens...
-
Page 9: Electrical Specifications
RFG Oven Installation and Operation Manual ELECTRICAL SPECIFICATIONS ELECTRICAL Have a licensed electrician wire the transformer terminal strip with a 120V, 15 amp lead. Electrical diagrams are located directly to the right, behind the removable service/intake panel of the appliance as well as inside the control box and also on page 23 of this manual. -
Page 10: Oven Venting
RFG Oven Installation and Operation Manual OVEN VENTING OVEN VENTING The following are the manufacturer’s recommendations for venting the Wood Stone MS (Mountain Series) RFG ovens. It is never appropriate to use “B vent” in any part of an exhaust system connected to a Wood Stone oven. - Page 11 RFG Oven Installation and Operation Manual OVEN VENTING (continued) 8" Allow 8"min. opening between any facade and the inside edge of the front of the hood to allow for filter removal. Views of installation of a Wood Stone hood. Note that the notch of the hood is even with the front edge of the oven.
- Page 12 RFG Oven Installation and Operation Manual ASSEMBLY ASSEMBLY 1. Mount the oven mantle (if provided) using the hardware provided. on page 13). 2. Mount the stainless steel toe kick to the front of the oven stand, near the floor using the hardware provided (See figure on page 14). If your oven was shipped with a lower facade extension there is no toe kick required.
-
Page 13: Mantle Mounting
RFG Oven Installation and Operation Manual MANTLE MOUNTING Whether mounting a stainless mantle or a bracket for a granite mantle, the initial steps are the same. 1. Begin by installing the threaded studs into the clip nuts below the oven doorway (3 or 4 turns is sufficient). - Page 14 RFG Oven Installation and Operation Manual ASSEMBLY Standard Front Panel and Toe Kick Throttle Knob View of Throttle Assembly Throttle Bracket The throttle knob position can be adjusted inward or outward by Clamp loosening the clamp and sliding the throttle knob assembly to the desired Throttle Rod Extension position.
-
Page 15: Assembly Diagram
RFG Oven Installation and Operation Manual ASSEMBLY DIAGRAM October Questions? Call Wood Stone at 800-988-8103 2005... -
Page 16: Stucco Application
RFG Oven Installation and Operation Manual STUCCO APPLICATION MINIMUM STUCCO APPLICATION IS 1" TRADITIONAL STUCCO MIX 1 part masonry cement 1 part regular cement 5 parts sand STUCCO PREMIX IS PROBABLY AVAILABLE AT YOUR LOCAL LUMBER YARD OR BUILDING SUPPLY 1 part premix 2 parts sand This figure depicts the application of stucco on a Wood Stone oven. -
Page 17: Initial Oven Startup
RFG Oven Installation and Operation Manual OVEN STARTUP INITIAL OVEN STARTUP FIRST DAY 1. Make sure main gas supply is on (valve parallel with gas line). 2. Make sure the switch on the Honeywell control gas valve is in the ON position. 3. -
Page 18: Daily Oven Operation
RFG Oven Installation and Operation Manual DAILY OVEN OPERATION OVEN OPERATION IMPORTANT: If at any time you feel that the burner is not operating properly, TURN THE OVEN OFF and call for service. Before servicing, disconnect the electrical supply at the breaker and turn off the gas supply at the appliance’s individual gas shutoff valve. -
Page 19: Controller Diagram
Fahrenheit and Celcius. ON/OFF button- press to turn oven on and off 1-360-650-1111 www.woodstone-corp.com HearthTemperature- The hear th temperature will be displayed here, any time the oven is turned on. Display will read 'LO' when the temperature is below 100 F. - Page 20 Presser le bouton ON/OFF pour arreter le bruleur WAIT 5 MINUTES BEFORE RELIGHTING ATTENDRE 5 MINUTES AVANT DE RÉALLUMER 1-800-988-8103 www.woodstone-corp.com This figure shows the face of the RFG gas oven controller used on ovens shipped before August 2005. October Questions? Call Wood Stone at 800-988-8103...
-
Page 21: Daily Maintenance
RFG Oven Installation and Operation Manual DAILY MAINTENANCE DAILY MAINTENANCE: Oven Interior Wood Stone recommends the use of a long-handled, stiff-bristled brush for sweeping aside excess food particles that will accumulate on the floor of the oven during use. The oven floor can be cleaned with a damp rag. DO NOT USE ICE OR EXCESSIVE WATER ON THE FLOOR. -
Page 22: Periodic Thermal Cleaning
RFG Oven Installation and Operation Manual PERIODIC THERMAL CLEANING ESTABLISHING A THERMAL CLEANING SCHEDULE Wood Stone ovens are typically operated at temperatures which preclude the need for cleaning of the interior walls and ceiling (the dome) of the oven. If however, you routinely operate the oven at floor temperatures lower than 450 degrees Fahrenheit, you may notice a buildup of soot on the interior walls and/or ceiling of the oven. -
Page 23: Troubleshooting
RFG Oven Installation and Operation Manual TROUBLESHOOTING Quick Troubleshooting Guide Problem Solution Controller will not turn on. 1.Incoming power to oven turned off. Check circuit breaker for circuit supplying the oven. Check that any wall switches external to the oven that control oven power are turned on. Check that any interlocks external to the oven are turned on. -
Page 24: Electrical Schematic
RFG Oven Installation and Operation Manual ELECTRICAL SCHEMATIC October Questions? Call Wood Stone at 800-988-8103 2005... - Page 25 RFG Oven Installation and Operation Manual ELECTRICAL SCHEMATIC October Questions? Call Wood Stone at 800-988-8103 2005...
- Page 26 RFG Oven Installation and Operation Manual INTERLOCK Interlock of Oven Control to an Exhaust Fan This connection is intended to interrupt power to the oven until the fan is turned on. S1 is a double pole - single throw switch (provided by others) that interrupts incoming power to both the oven and the fan.
-
Page 27: Operation Sequence
RFG Oven Installation and Operation Manual Operation Sequence Burner Operation Sequence RFG Oven - All Controllers Power On SV2 valve powers igniter and opens pilot valve Pilot does not light, SV2 times out, Pilot Lights Touchpad style controllers will flash ‘chec’* SV2 senses pilot flame, turns igniter off, SV2 opens, burner... -
Page 28: Limited Warranty
RFG Oven Installation and Operation Manual LIMITED WARRANTY Wood Stone warrants its equipment to the original purchaser against defects in material or manufacture for a period of one year from the original date of purchase, subject to the following exclusions and limitations. EXCLUSIONS The warranties provided by Wood Stone do not apply in the following instances: 1.
