Wood Stone FIRE DECK 9660 Installation And Operation Manual

Wood Stone FIRE DECK 9660 Installation And Operation Manual

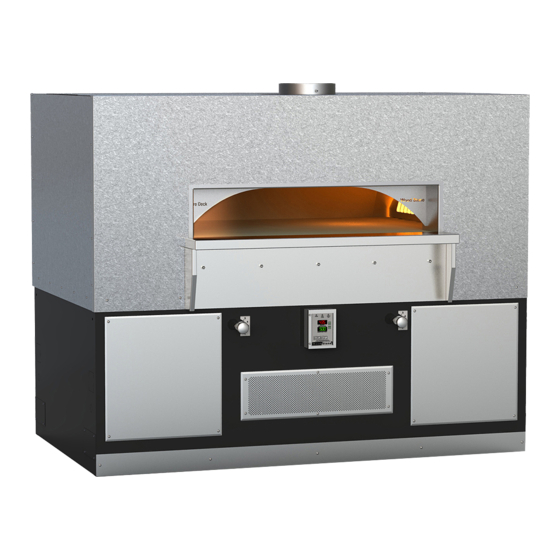

Fire deck series stone hearth oven gas-fired, gas/wood combination models
Hide thumbs Also See for FIRE DECK 9660:

Advertisement

Installation and
Operation Manual
FIRE DECK SERIES
Stone Hearth Oven
Gas-Fired, Gas/Wood Combination Models
FIRE DECK 9660 WS-FD-9660
FIRE DECK 11260 WS-FD-11260
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Toll Free 800.988.8103
Tel 360.650.1111
Fax 360.650.1166
DOC NO M0040.12
REVISED FEBRUARY 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIRE DECK 9660 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wood Stone FIRE DECK 9660

  • Page 1 Installation and Operation Manual FIRE DECK SERIES Stone Hearth Oven Gas-Fired, Gas/Wood Combination Models FIRE DECK 9660 WS-FD-9660 FIRE DECK 11260 WS-FD-11260 WOOD STONE CORPORATION Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com...
  • Page 2: Table Of Contents

    � � � � � � � � � � � � � Troubleshooting Guide � � � � � � � � � � � � � � � � Limited Warranty M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W.
  • Page 3: Fire Deck Fd-9660 & Fd-11260

    FIRE DECK FD-9660 & FD-11260 Fire Deck FD-9660 & FD-11260 Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE FIRE DECK STONE HEARTH COOKING EQUIPMENT WS-FD-9660-RFG-(LR, L OR R)-(IR)-W-(NG, OR LP) WS-FD-9660-W-IR-(NG OR LP) WS-FD-11260-RFG-(LR, L OR R)-(IR)-W-(NG, OR LP)
  • Page 4: Cautions & Warnings

    CAUTIONS & WARNINGS Fire Deck FD-9660 & FD-11260 Installation and Operation Manual WOOD STONE WS-FD-9660 AND WS-FD-11260 FIRE DECK INSTALLATION AND OPERATING INSTRUCTIONS RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com� For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�...
  • Page 5 This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachusetts� SAVE THE INSTRUCTIONS Wood Stone’s gas and gas-wood ovens were tested and approved by Intertek Testing Services and ETL Listed to ANSI Z83�11:2016 Ed� 4, CSA 1�8:2016 Ed� 4, UL 737, ULC-S627-00, UL Subject 2162 and to NSF/ANSI 4:2016�...
  • Page 6: Fd-9660 Specifications

    PART #: SHEET: SHEET: DIMENSIONS ARE IN INCHES 1 inch FNPT gas inlet 120 VAC, 2 A, 50/60 Hz The Fire Deck 9660 can be direct connected to a power-ventilated, grease-rated TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2° DATE: 5/10/2018 DATE: 5/10/2018...
  • Page 7: Fd-11260 Specifications

    11260 Fire Deck DIMENSIONS ARE IN INCHES DIMENSIONS ARE IN INCHES DIMENSIONS ARE IN INCHES DIMENSIONS ARE IN INCHES M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE LERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2° RANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°...
  • Page 8: Unloading & Moving The Oven

    USING A FORKLIFT. The Wood Stone Fire Deck 9660 weighs approximately 6,000 lbs�, and the Fire Deck 11260 weighs approximately 6,800 lbs� Both are top heavy� Use a forklift with adequate fork lengths and lifting capacity� When using a forklift, always use the forklift pockets� Lifting the oven any other way with a forklift may result in damage�...
  • Page 9: Optional Temp Caster Install

    INSTRUCTIONS FOR INSTALLING AND REMOVING OPTIONAL OVEN CASTERS The Fire Deck 9660 weighs approximately 6,000 lbs. and the Fire Deck 11260 about 6,800 lbs. Do not attempt to move the oven over any type of grade or sloped surface when using the Casters or Pallet Jack.
  • Page 10: Placing & Installation

    PLACING & INSTALLATION Fire Deck 9660 & FD-11260 Installation and Operation Manual PLACING THE OVEN The oven must be installed on a flat level surface� The weight of the oven is carried by the full perimeter of the oven stand� If it is necessary to shim the oven for leveling purposes, it is critical that the shim material be metal, and that the shims are installed in such a way that the full perimeter of the stand is solidly supported�...
  • Page 11: Installation Clearances

    1. The Wood Stone Fire Deck 9660 and Fire Deck 11260 ovens must have a minimum 1-inch clearance to combustibles from all sides, and 14-inch clearance to combustibles from the top (see figures below)� Any construction 6 inches to either side of the doorway and above must be non-combustible�...
  • Page 12: Facade Requirements

    It is always advisable to consult with the appropriate authority having jurisdiction before proceeding as there may be regulations regarding the suitability of various materials� Temperatures above the oven doorway can reach over 200 °F� Select materials and adhesives suitable for that temperature� M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W.
  • Page 13: Venting

    350 °F (450 °F for units burning solid fuel)� Use a stack or curb mounted fan� Wood Stone does not recommend the use of an in-line fan�...
  • Page 14 Type 1 hood constructed and installed in accordance with NFPA 96� The fusible link in the hood must be rated at 450 °F minimum� Wood Stone offers UL Listed Exhaust Hoods for our ovens that are pre-piped for ANSUL R-102 fire suppression�...
  • Page 15: Hood Specifications

    HOOD SPECIFICATIONS Fire Deck FD-9660 & FD-11260 Installation and Operation Manual 9660 / 11260 HOOD - PLAN VIEW Wood Stone Hoods by Gaylord Specifications Required CFM: 1050 CFM Static Pressure: 0.80" W.C. Duct Collar: 9" x 9" I.D. M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103...
  • Page 16 HOOD SPECIFICATIONS Fire Deck FD-9660 & FD-11260 Installation and Operation Manual 9660 / 11260 HOOD - SIDE VIEW Wood Stone Hoods by Gaylord Specifications Required CFM: 1050 CFM Static Pressure: 0.80" W.C. Duct Collar: 9" x 9" I.D. M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103...
  • Page 17: Gas Specifications

    NOTE: The gas valves are shipped in the ON position� M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W.
  • Page 18 GAS CONNECTION The Fire Deck 9660 and the Fire Deck 11260 are equipped with a 1-inch FNPT gas connection (see SPECIFICATIONS section for exact location)� Have a licensed gas installer provide the hook-up and test all fittings and pipe connections for leaks� Use approved gas leak detectors (soap solutions or equivalent) over and around the fittings and pipe connections�...
  • Page 19: Electrical Specifications

    National Electrical code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22�2 as applicable� Conduit entry for electrical supply Recessed Junction box 1-inch FNPT gas connection M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com...
  • Page 20: Controller

    WAIT 5 MINUTES BEFORE RELIGHTING and Celsius temperature ATTENDRE 5 MINUTES AVANT DE RÉALLUMER scales in display screens 1-800-988-8103 www.woodstone-corp.com M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com...
  • Page 21: Initial Start-Up

    Installation and Operation Manual INITIAL OVEN START-UP PROCEDURE Wood Stone recommends completing this start-up procedure before burning any wood� Note: Models Listed for wood burning will have a “-W” in the model number� Your oven was cured at the factory� However, in the course of shipment, storage on-site, etc� the ceramic materials will have absorbed moisture�...
  • Page 22: Daily Oven Operation

    GENERAL DAILY OVEN OPERATION IMPORTANT: If at any time you feel that the burners are not operating properly, turn the oven off and call Wood Stone for service� Before servicing, disconnect the electrical supply at the breaker and turn off the gas supply at the appliance’s individual gas shutoff valve�...
  • Page 23: Flame Height Control

    Then relate height to the corresponding number on the Flame Height Index Scale� For more information regarding Flame Height Control, go to the Resource Center section of our web site at: www.woodstone-corp.com M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W.
  • Page 24: Use Of Wood In Oven

    Installation and Operation Manual Fire Deck 9660 and 11260 models Listed for wood burning will have a “-W” in the model number. When burning wood in a Wood Stone Fire Deck equipped with Radiant Flame Burners (“-RFG” in the model number), the fire should be located on side of the oven chamber opposite the radiant gas burner�...
  • Page 25: Managing The Oven Fire

    DO NOT POUR OR SPRAY LIQUIDS ONTO THE OVEN DECK OR INTO THE OVEN INTERIOR AS THIS CAN DAMAGE THE CERAMIC AND WILL VOID THE WARRANTY. M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W.
  • Page 26 The interior floor and dome of the oven do not require creosote or soot removal. The oven flue and exhaust system will require inspection and cleaning. The exhaust system should be inspected and cleaned per the manufacturer’s and or local code official’s recommendations. Wood Stone recommends cleaning and inspection at least monthly on any ventilation system serving solid fuel equipment.
  • Page 27: Fuelwood Facts

    Wet wood is the most common operational difficulty associated with wood-fired cooking equipment� Wood Stone’s optional Mini-Ligno E Wood Moisture Meter can save you from paying for water when you thought you were paying for wood (see the Tools &...
  • Page 28: Maintenance & Cleaning

    OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush, always brushing away from the Radiant Burner well� For deeper cleaning, use a brass bristled brush�...
  • Page 29: Troubleshooting Guide

    3. Wind blowing into the oven, or other venting issue� Please contact Wood Stone at 1-800-988-8103 should service be necessary, or if you have any questions about your oven. Our normal service hours are Mon�–Fri�, 8am–5pm Pacific time� If calling after hours, follow the recorded instructions for emergency service and a Wood Stone technician will get back to you promptly�...
  • Page 30: Electrical Diagrams

    Radiant Brown Orange DIAG #: WD079 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 3/27/2014 M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166...
  • Page 31 50-60Hz wired by others Brown DIAG #: WD064 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 3/28/2014 M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166...
  • Page 32 TB1-P 50-60Hz wired by others DIAG #: WD061 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 3/28/2014 M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166...
  • Page 33: Decorative Flame Burner

    Decorative Brown Brown DIAG #: WD103 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 3/27/2014 M0040.12 FEBRUARY 2018 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166...
  • Page 34: Interlock Diagram

    Any interruption of the power to the oven will cause the oven (including all burners and pilots) to shut off, and it will be necessary to restart the oven by pressing the start switch once power is restored� For additional interlock options, see the Wood Stone Interlock Options supplement in the Manuals section on the website, woodstone-corp.com, or contact Wood Stone for additional information�...
  • Page 35: Limited Warranty

    LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
  • Page 36 WOOD STONE CORPORATION Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com An ongoing program of product improvement may require us to change specifications without notice. M0040.12 FEBRUARY 2018...
