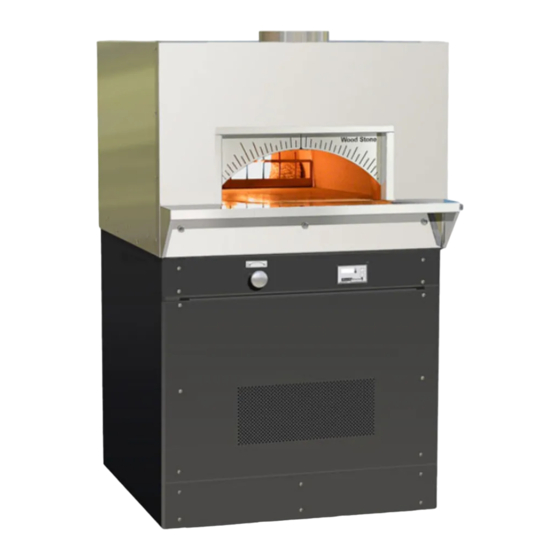

BiStro SerieS
Gas-Fired Stone Hearth Oven
Commercial Internal Transition Models
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Installation and
Operation Manual
BiStro 3030
WS-BL-3030-RFG
BiStro 4343
WS-BL-4343-RFG, WS-BL-4343-RFG-W
BiStro 4355
WS-BL-4355-RFG, WS-BL-4355-RFG-W
CS-reC-11
CS-REC-11-RFG
Toll Free (800) 988-8103
Tel (360) 650-1111
Fax (360) 650-1166
www.woodstone-corp.com
Revised April 2010
Advertisement
Table of Contents
Related Manuals for Wood Stone CS-REC-11
Summary of Contents for Wood Stone CS-REC-11
- Page 1 Gas-Fired Stone Hearth Oven WS-BL-4343-RFG, WS-BL-4343-RFG-W BiStro 4355 Commercial Internal Transition Models WS-BL-4355-RFG, WS-BL-4355-RFG-W CS-reC-11 CS-REC-11-RFG Wood Stone Corporation www.woodstone-corp.com Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Revised April 2010 Bellingham, WA 98226 USA Fax (360) 650-1166...
- Page 2 This page intentionally left blank >...
-
Page 3: Table Of Contents
-------------------------------------------------------------------------------- TROUBleSHOOTInG GUIde-------------------------------------------------------------------- 120 v elecTRIcAl dIAGRAM ----------------------------------------------------------------- 240 v elecTRIcAl dIAGRAM ----------------------------------------------------------------- InTeRlOck dIAGRAM------------------------------------------------------------------------- lIMITed WARRAnTy -------------------------------------------------------------------------- Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@woodstone-corp.com or visit www.woodstone-corp.com... -
Page 4: Bistro Line
THe Wood sTone bIsTRo nATURAl GAs oR PRoPAne FUeled sTone HeARTH oven WS-Bl-3030-RFg-(ng oR lp), WS-Bl-4343-RFg-(ng oR lp), WS-Bl-4355-RFg-(ng oR lp), cS-Rec-11-RFg-(ng oR lp), WS-Bl-4343-RFg-(ng oR lp)-W, WS-Bl-4355-RFg-(ng oR lp)-W, cS-Rec-11-RFg-(ng oR lp)-W CommeRCIAl InTeRnAl TRAnsITIon models ThiS AppliAnce iS FoR pRoFeSSionAl USe By qUAliFied peRSonnel. ThiS AppliAnce mUST Be inSTAlled By qUAliFied peRSonS in AccoRdAnce WiTh The RegUlATionS in FoRce. - Page 5 BiStro line Bistro Installation and Operation Manual Wood sTone bIsTRo GAs oven InsTAllATIon And oPeRATInG InsTRUCTIons do noT THRoW THIs mAnUAl AWAY ReTAIn THIs mAnUAl FoR FUTURe ReFeRenCe Additional copies of this manual and prompt responses to service/maintenance questions are available from Wood Stone @ 1-800-988-8103.
-
Page 6: Bistro 3030 Specifications
(provided) to route actual Weight: 850 lbs. gas and electrical supplies. Shipping Weight: 1100 lbs. Refer to data plate when installing. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA... -
Page 7: Bistro 4343 Specifications
(provided) to route gas and actual Weight: 1650 lbs. electrical supplies. Shipping Weight: 2100 lbs. Refer to data plate when installing. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA... -
Page 8: Bistro 4355 Specifications
ReMOvABle fOR seRvIce Top view Rear view KnOcKOuts pROvIded fOR gAs/electRIcAl Note: These specifications also apply to the WS-CS-REC-11 custom model oven UtilitieS SpeCifiCationS Electrical- Gas-3/4 inch gas inlet (female threaded) 120 vAc, 2 amp, 50/60 Hz 80,500 BTU natural Gas Supply OR... -
Page 9: Installation Clearances
CleARAnCes a. The Wood Stone Bistro oven must have a minimum 1-inch clearance to combustibles from all sides, 6-inch clearance to combustibles from the top, and 6-inch clearance from the flue collar. If building a facade that will contact the oven, use completely non-combustible materials. -
Page 10: Moving The Oven
CAUTIon: The 3030 model Bistro weighs approximately 850 lbs. The 4343 model Bistro weighs approximately 1700 lbs. The 4355 model Bistro (or cS-Rec-11) weighs approximately 2200 lbs. The ovens are very top-heavy. iF The oven TipS iT cAn cAUSe SeveRe inJURy oR deATh! neveR ATTempT To USe A hAnd TRUcK To move The oven! The oven should only be moved using a pallet Jack on a level FlooR. -
Page 11: Disassembly
Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111... - Page 12 It may be necessary to cut the silicone at the joint between the mantle and the oven. cap nut ConTInUed on THe nexT PAGe Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
- Page 13 Follow the assembly instructions on page 17 to reassemble the oven. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
-
Page 14: Lifting The Oven
If you need to move the disassembled oven through a narrow door or passageway, follow the instructions below... An optional lifting system is available from Wood Stone to facilitate tipping the oven body onto its back or side (as shown below). - Page 15 ConTInUe To THe exPloded dIAGRAm And Re-AssemblY InsTRUCTIons Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
-
Page 16: Exploded Parts View
All parts shown above and provided with the oven (except the shipping panel) mUST be installed to ensure the safety and proper operation of the oven. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. -
Page 17: Assembly
Make sure the pallet jack wheels do not contact the underside of the fork pocket when lifting to avoid damaging the stand. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. - Page 18 Sv-2 Gas valve. plug in igniter burner. wires from the burner here. Attach flexible pilot tube here. Tighten the fitting firmly. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@woodstone-corp.com or visit www.woodstone-corp.com...
- Page 19 If the oven has been supplied with a granite mantle, affix the granite slab to the mounting bracket using a generous amount of the adhesive provided. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
- Page 20 Install the cover plate using the screws provided (3 for Bl-3030 and 4 for Bl-4343/Bl-4355) Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
- Page 21 Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
-
Page 22: Assembly-Connections
AnSi/nFpA 70, or the canadian electrical code, cSA c22.2, as applicable. An electrical diagram is provided inside the bottom cover of the control box, and at the end of this manual. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. - Page 23 (ng) 4343 and 3030 models- 4.5" Wc propane (lp) 3030 models-7"Wc propane (lp) 4343 models-9" Wc natural gas (ng) 4355 and cS-Rec-11 models 4.5" Wc propane (lp) 4355 and cS-Rec-11 models-9" Wc This information can also be found on the data plate located beneath the oven.
- Page 24 Wood Stone recommends providing protection for the hood and duct plenum. The fusible link in the hood must be rated at 450 degrees F minimum. Wood Stone offers Ul listed exhaust Hoods for our ovens that are pre-piped for AnSUl R-102 fire suppression.
-
Page 25: Venting
Bistro Installation and Operation Manual flue collar Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@woodstone-corp.com or visit www.woodstone-corp.com... -
Page 26: Initial Oven Startup
F. This will take approximately 3-4 hours. night heat Retention door The night door should be removed whenever the oven is turned 'on'. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA... -
Page 27: Daily Oven Operation
Make sure the night door is removed. push I/O button and turn the radiant flame to its highest setting. The oven should reach the desired cooking temperature typically within 1-2 hours. Use the flame height control knob to control the amount of heat in the oven. See www.woodstone-corp.com for detailed information on cooking in your Wood Stone oven. CleAnInG THe oven 1. -
Page 28: Daily Maintenance
Bistro Installation and Operation Manual oven InTeRIoR Wood Stone recommends the use of a brass bristled brush for sweeping aside excess food particles that will accumulate on the floor of the oven during use. The oven floor can be cleaned with a damp rag. -
Page 29: Wood Burning Information
They should be retained in the closed container until all the cinders have thoroughly cooled. Ashes can then be disposed of safely. Wood Stone's stainless steel ash shovel and, double compartment ash disposal system is a safe and convenient way to dispose of ash. -
Page 30: Controller
'lO' when the temperature is below 100 F. ConTRolleR FlAme HeIGHT ConTRol knob: Use this knob to raise/lower the flame to control the oven temperature. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111... -
Page 31: Troubleshooting Guide
2. damaged thermocouple - call Wood Stone. please contact Wood Stone at 1-800-988-8103 should service be necessary, or if you have any questions about your oven. Our office hours are 8am to 4:30pm pacific Standard Time. Follow the recorded instructions for emergency Service if you require assistance during non-business hours. -
Page 32: 120 V Electrical Diagram
120 v electrical diagram 120 v eleCtriCal diagram Bistro Installation and Operation Manual bIsTRo models WITH HoT sURFACe IGnITIon modelS pRodUced AFTeR ApRil 2005 Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA... - Page 33 4343 And 3030 eleCTRICAl dIAGRAm modelS pRodUced BeFoRe ApRil 2005 120 vAC PoWeR sUPPlY OR AS SpecIFIed On eqUIpMenT dATA plATe Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
-
Page 34: 240 V Electrical Diagram
240 v electrical diagram 240 v eleCtriCal diagram Bistro Installation and Operation Manual bIsTRo models 4355, (Cs-ReC-11), 4343 And 3030 eleCTRICAl dIAGRAm 240 vAc modelS Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA... -
Page 35: Interlock Diagram
(including all burners and pilots) to shut off, and it will be necessary to restart the oven by pressing the start switch once power is restored. no other connection to the oven control system is condoned by Wood Stone and may affect the oven warranty and cause damage to the oven controls. -
Page 36: Limited Warranty
In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof. Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser.
