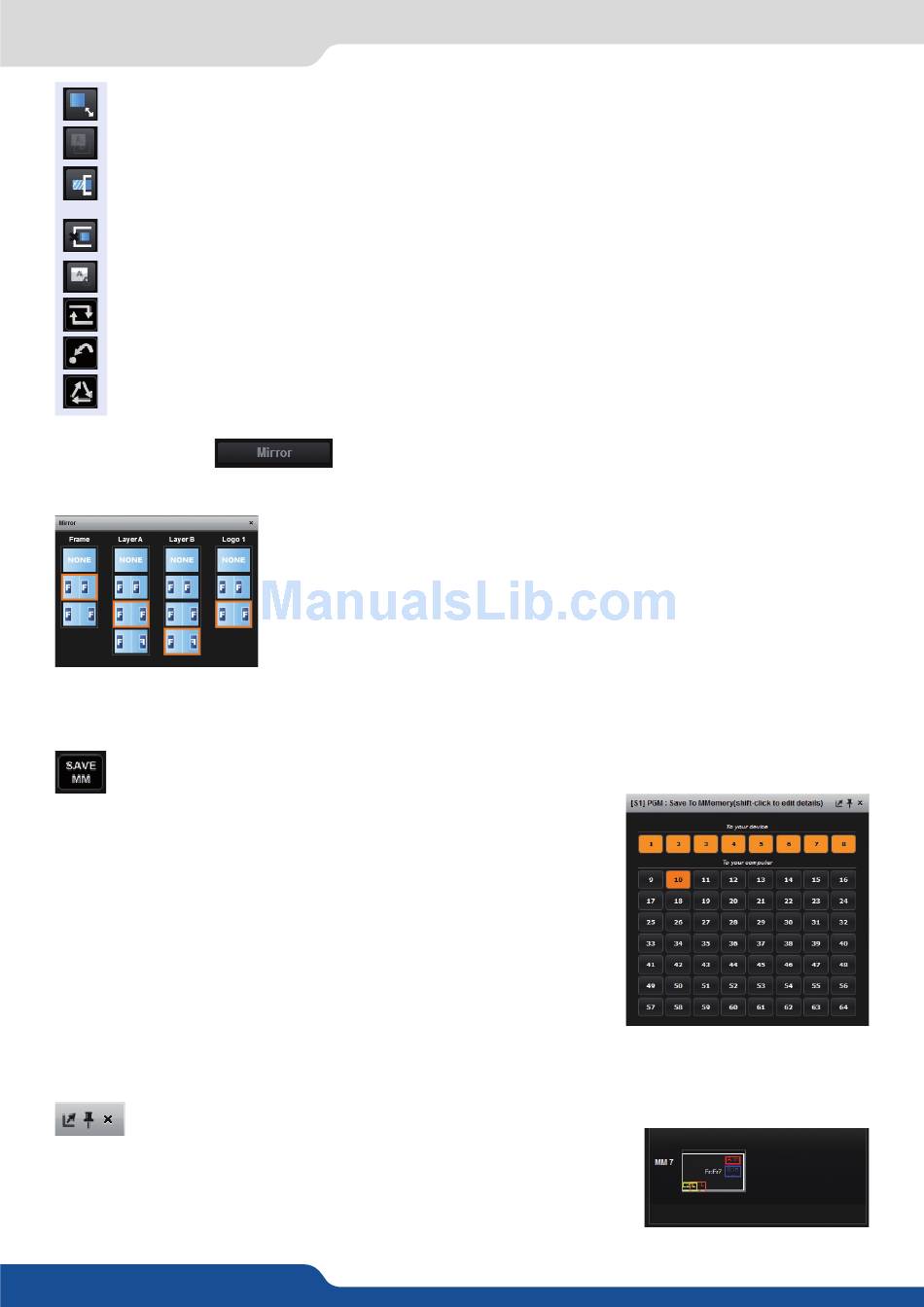

- KEEP ASPECT RATIO BUTTON:
- WIREFRAME MODE:
- SHOW LAYER OUT OF SCREEN:
into the RCS²,
- TRAP LAYERS ON SCREEN:
- HIDE UNUSED LAYERS:
- TOGGLE PRESET:
- RELOAD PROGRAM:
- STEP BACK: return to the configuration you had before the last TAKE,
- MIRROR BUTTON:
copied in the preset. You can choose to mirror the layer, flip the position, or flip the position and the data
from another screen. To access this feature, you first need to be in the Matrix mode.
7.3.5 Preset load and save management
Save a preset
Once your preset is set up, you can store it into one of the 64 preset slots. To do that, click on SAVE
MM and choose the number corresponding to the slot number.
WARNING: in the RCS², you cannot save a preset for only 1 screen when
you are in matrix mode, only MASTER MEMORIES can be saved into the
EDIT section.
In addition, in the EDIT section, as you work on screen by screen, the load
button loads only single memory. You will find the load MASTER MEMORIES
in LIVE MODE.
The first 8 presets are stored into the unit, all the other presets are stored
locally on your computer, and will only be available when using the RCS2
software.
If you want to have more details, you can SHIFT+CLICK on any preset to bring up a detailed status window. In
this window, you can rename each preset using the PRESET LABEL.
- The first icon displays a window with all preset detail,
- The second one allows you to let the windows open,
- The last one quits the window.
enabling this feature will keep the layer aspect ratio during resizing,
allows to enable/disable the layer thumbnails on your RCS²,
enable/disable the possibility to display a layer out of the screen
disable the ability to position the layer off of the screen,
empty layers will not be displayed in the RCS²,
enable/disable the TOGGLE PRESET (the Preview becomes the previous Program),
load the preset of the Program screen into the Preview screen,
the mirror button allows you to define for each layer the way it will be
7.3.5 Preset load and save management
