4.6 Input specifications

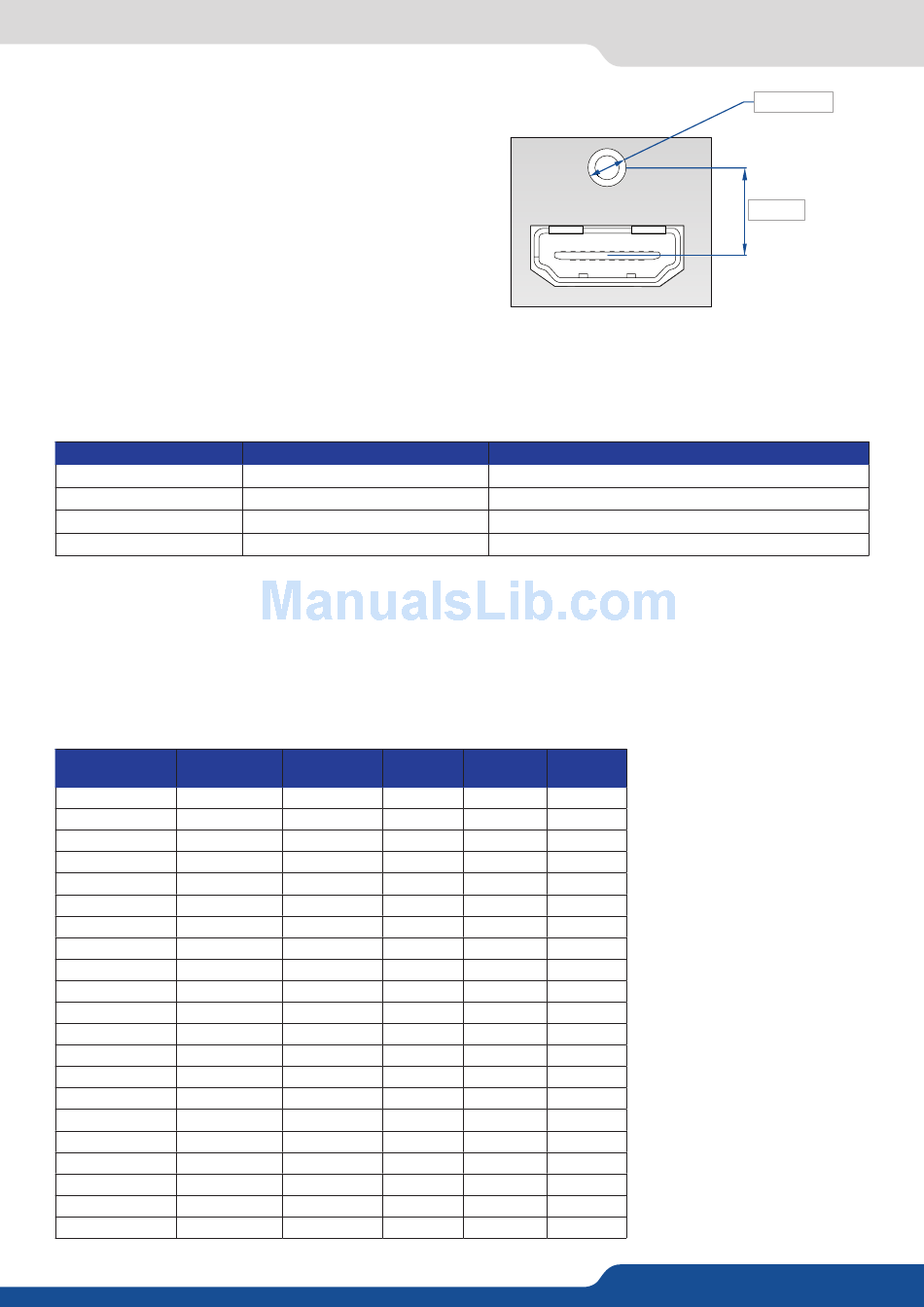

The SmartMatriX² uses an HDMI®plug with a standard
mounting screw above the connector. Please see the
diagram below.
This hole is occupied by a Torx10 screw when you receive
the unit. If desired, this screw can be removed and
replaced by a compatible aftermarket HDMI®plug locking
mechanism to ensure a secure HDMI®connection. This
threaded hole should not be left empty.
This hole is used by a TX10 screw when you receive the unit, if you wish to use an HDMI®cable with a security
fixing screw you can take this screw off and use your own in order to insure good fixing of your HDMI®plug.
Please take a look at the accepted formats regarding the input plug type:
Plug Type
Universal Analog Input
DVI-D Input
HDMI®Input
3G/HD/SD-SDI Input
WARNING: Only the video and audio signal is processed for the HDMI®, and 3G/HD/SD-SDI inputs; other
embedded auxiliary features are not supported or passed through. The embedded audio is processed. All
other HDMI® features such as: HDMI®Ethernet Channel, Audio Return Channel, 3D, 4K, Content Type, Deep
Color and x.v.Color are NOT supported.
Each input can display only one active plug at a time. It is instantly available on the device and can be dis-
played simultaneously on many layers or outputs, with different sizes and positions.
Standard Size
NTSC 525/480i
PAL 625/576i
SECAM 625/576i
EDTV 480p 525/480p
EDTV 576p 625/576p
HDTV 720p 1280x720
HDTV 1035i 1920x1035
HDTV 1080i 1920x1080
HDTV 1080p 1920x1080
HDTV 1080sF 1920x1080
HDTV 1080p 1920x1080
HDTV DCDM 2048x1080
VGA 640x480
800x480 800x480
WVGA 848x480
SVGA 800x600
1280x600 1280x600
720p RGB 1280x720
XGA 1024x768
WXGA 1280x768
SWXGA 1360x768
18
Formats
SDTV - EDTV - HDTV - Computer
SDTV - EDTV - HDTV - Computer
SDTV - EDTV - HDTV - Computer
SDTV - HDTV
HD-15 3G-SDI
Yes Yes
Yes Yes
Yes Yes
Yes No
Yes No
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
No Yes
Yes No
Yes No
Yes No
Yes No
Yes No
Yes No
Yes No
Yes No
Yes No
Signals
Analog SDTV - Analog EDTV - Analog HDTV - Analog Computer
Digital SDTV - Digital EDTV - Digital HDTV - Digital Computer
Digital SDTV - Digital EDTV - Digital HDTV - Digital Computer
Digital SDTV - Digital HDTV
Single-Link
HDMI
DVI-D
Yes No
Yes No
Yes No
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
No No
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
M3x0,5 mm
27 mm
