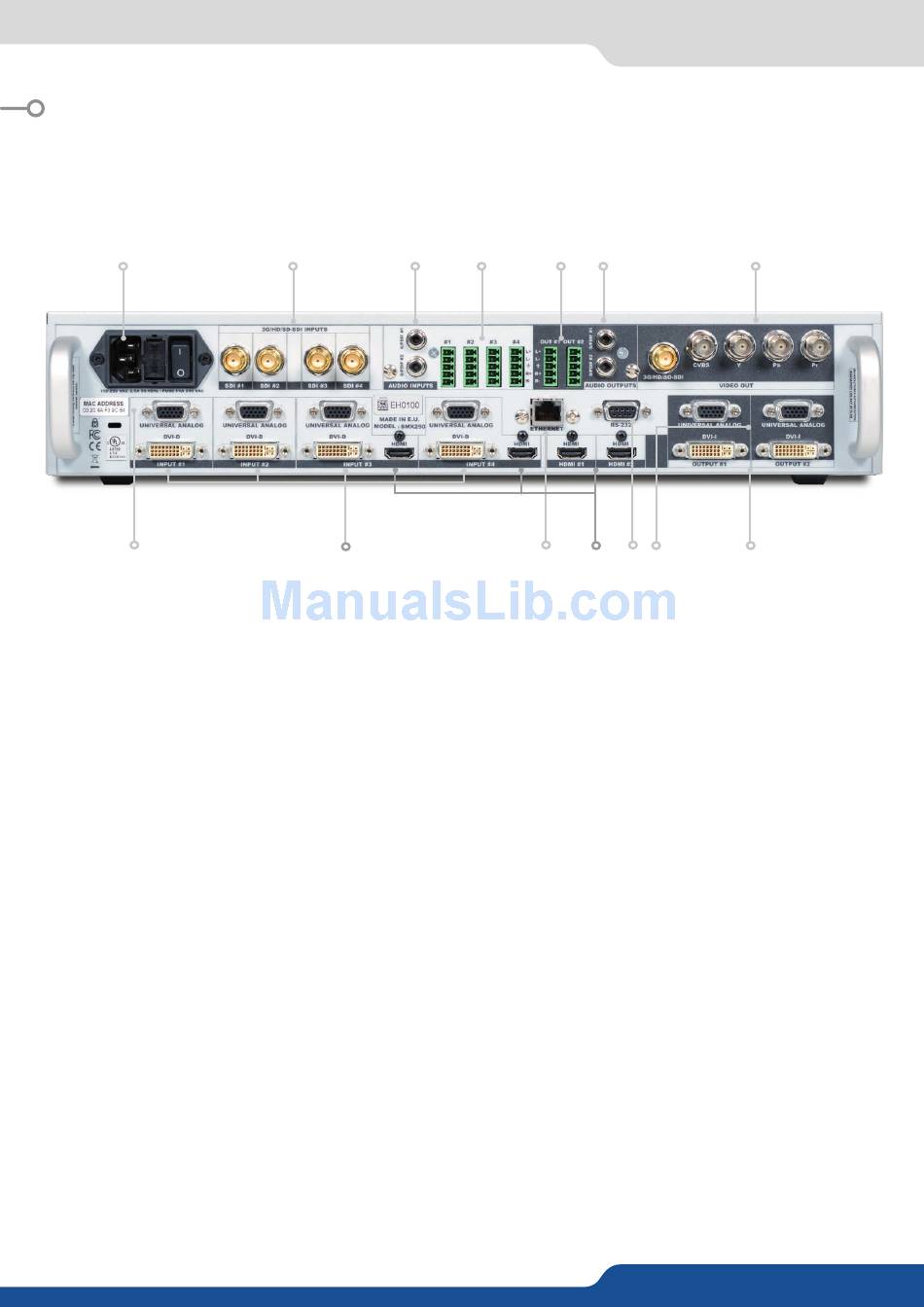

5.1.1 Rear panel
5. CONNECTING THE SMARTMATRIX²
5.1 Description
5.1.1 Rear panel
1
8
1. Power supply:
100-240 VAC 2.5A 50/60HZ / FUSE F4A 250 VAC; internal, autoswitchable; 110W
2. 3G/HD/SD-SDI:
inputs #1 to #4
3. S/PDIF:
audio inputs #1 to #2
4. MCO male connector:
5. MCO male connector:
6. S/PDIF:
audio outputs #1 to #2
7. Video out connectors:
8. Universal Analog Computer TV/HDTV:
9. DVI connectors:
DVI-D inputs #1 to #4. Capability to receive digital audio signal from HDMI®connector via
an adaptor (HDMI-compatible)
10. Ethernet plug
11. HDMI®connectors:
12. Communication port:
13. Universal Analog Computer TV/HDTV:
14. DVI connectors:
DVI-I outputs #1 to #2. Capability to transmit digital audio signal towards a HDMI®connector
via an adaptor (HDMI-compatible)
24
2
9
for audio inputs (balanced) #1 to #4
for audio outputs (balanced) #1 to #2
- 1 x BNC-F: 3G/HD/SD-SDI (with audio embedded)
- 3 x BNC-F: Y-Cb-Cr
- 1 x BNC-F: Composite video PAL/NTSC
inputs #1 to #4
HDMI®inputs #3 to #6. Digital audio compliant
communication port with DB9 female connector
HD15 outputs #1 to #2
3
4
5
10
6
7
11
13
14
12
