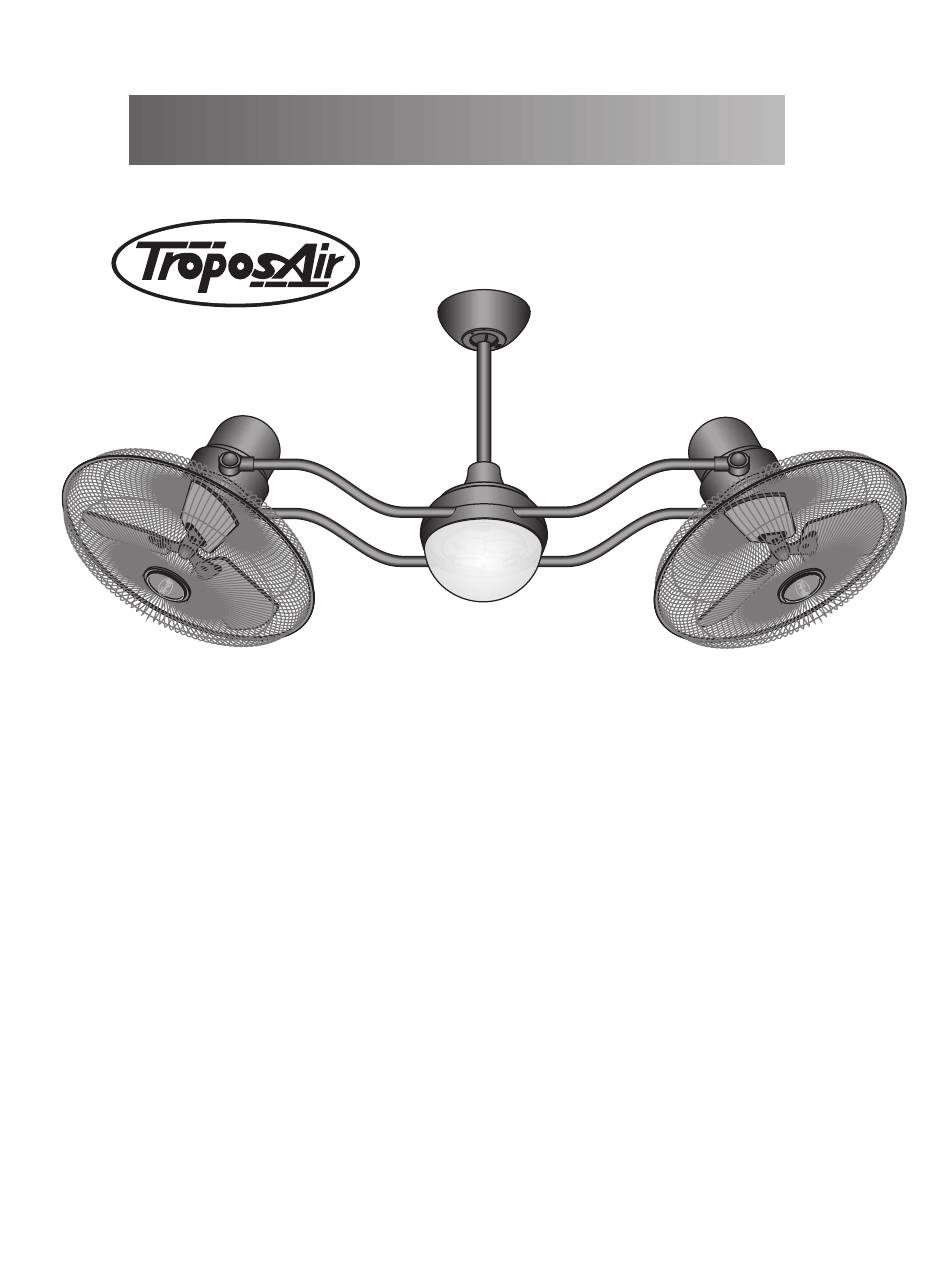

Owner's Manual
Duet
This instructions contains 5 pages:
Page 1: Foreword
Page 2: Unpack and inspect parts contained, and pre-installation notes
Page 3: Preliminary assembly
Page 4: Hanging system installation, and remote setting and placement
Page 5: Wire connection, canopy installation, and light cover installation
Toll Free 1-855-676-7247
WARNING: Read and follow these instructions carefully and be mindful of all warnings shown throughout.
Model No: 15NDB-L
Net Weight
6.26 KGS
13.8 LBS
Advertisement
Table of Contents
Related Manuals for TroposAir Duet
Summary of Contents for TroposAir Duet
- Page 1 Owner’s Manual Duet Model No: 15NDB-L This instructions contains 5 pages: Page 1: Foreword Page 2: Unpack and inspect parts contained, and pre-installation notes Page 3: Preliminary assembly Page 4: Hanging system installation, and remote setting and placement Page 5: Wire connection, canopy installation, and light cover installation Net Weight 6.26 KGS...
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING: To ensure success of installation, be sure read these instructions and review the diagrams thoroughly before beginning. To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Hardware Bag Mounting For Mounting Bracket: Bracket Flat Washer x2 Star Washer x2 Spring Washer x2 Machine Screw x2 Downrod Wood Screw x2 Assembly For Wire Connection Wire Nut x3 For Light Fixture Canopy Machine Screw w/Lock Washer x3...
- Page 4 1. PRELIMINARY ASSEMBLY Screws 1A. Installing Light Fixture With Lock Light Gently place Motor Assembly, cages-down, Washers Fixture onto empty top styrofoam. Plug 2 Light Fixture wires into 2 Light Wires Wires of Motor Assembly. Rotate fixture to coil up slack wire into recess. Motor Assy Attach Light Fixture to Motor Assembly with...
- Page 5 2. HANGING SYSTEM INSTALLATION 2A. Installing mounting bracket to ceiling outlet box Install mounting bracket to outlet box in ceiling by using screws included with the outlet box Outlet Box and washers from the hardware bag. Mounting Bracket 2B. Hanging the fan Rotate the ball so that the groove on the ball engages the ridge on the mounting bracket.
- Page 6 4. WIRING CONNECTION 4. Making electrical wire connection Follow diagram below and make sure that all exposed wires are secured inside wire nuts. Note: Wires from house may vary in color and may not include ground wire (green). After wiring is complete, collect wires neatly inside mounting bracket. From House From Remote From Fan...
