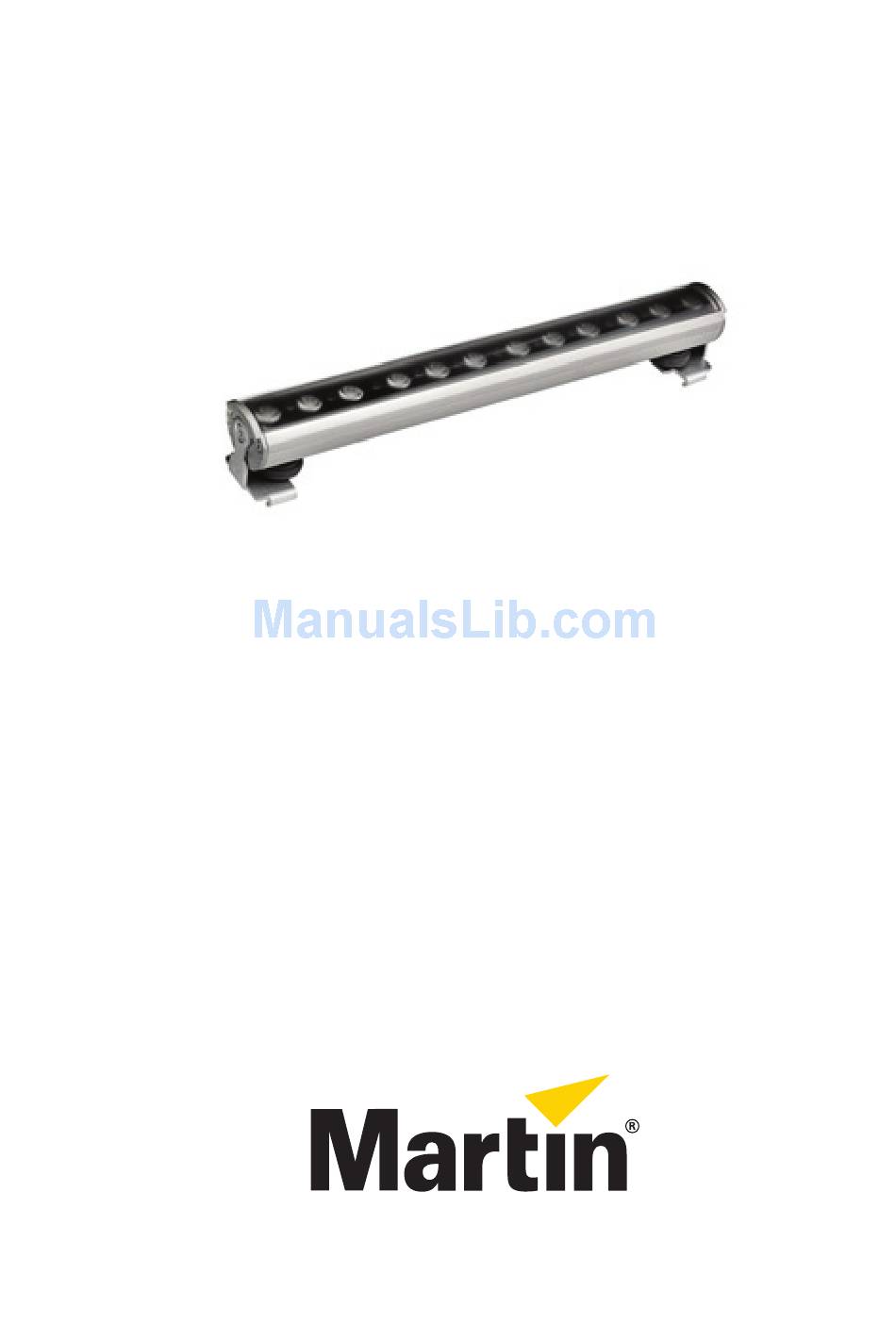

Easypix™
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Easypix and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Martin Easypix

Summary of Contents for Martin Easypix

  • Page 1 Easypix™ user manual...

  • Page 2: Dimensions

    The Martin logo, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries.

  • Page 3: Safety Information

    If you have questions about how to operate the luminaire safely, please contact your Martin dealer or call the Martin 24-hour service hotline at +45 70 200 201, or in the USA on 1-888-tech-180. PROTECTION FROM ELECTRIC SHOCK •...
  • Page 4 (earth-fault) protection. • Connect a maximum of 24 Easypix 300 luminaires or 6 Easypix 1200 luminaires or any mixture of Easypix 300 and 1200 luminaires that is maximum 7.2 m long to one Easypix Power device.
  • Page 5 DIN rail safely. Any nuts used must be self-locking. • If the Easypix Power or luminaires are to be installed in a location where injury or damage may be caused if a device falls, use a...

  • Page 7: Table Of Contents

    Contents Dimensions ....................... 2 Safety Information ..................... 3 Contents ......................7 Notes ........................ 8 Introduction ....................... 9 Unpacking ....................10 Using for the first time ................10 Physical installation ..................11 Location and orientation ................11 Mounting ....................12 Connections – general ..................16 System overview ..................

  • Page 8: Notes

    Notes Easypix user manual...

  • Page 9: Introduction

    • 8 W LED power and 100 lumens total output (at narrow beam angle) from Easypix 300 • The Easypix Power can drive up to twenty-four Easypix 300s, six Easypix 1200s, or any mixture of Easypix 300 and Easypix 1200 devices that does not exceed 7.2 meters (23 ft.

  • Page 10: Unpacking

    • Carefully review “Safety Information” on page 3 • Check that the local AC power voltage is within the range listed on the Easypix Power serial number label • Install the Easypix Power and Easypix luminaires as described in this manual Easypix user manual...

  • Page 11: Physical Installation

    • Do not bury the devices or locate them in an unventilated space • Allow 5 cm (2 in.) free space around both the Easypix Power and the Easypix luminaires Install the Easypix Power and the Easypix luminaires at least 20 cm (8 in.) away from any combustible materials (wood, paper, etc.) and well...

  • Page 12: Mounting

    Mounting DIN rail The Easypix luminaire is designed for mounting on standard 35 mm top-hat DIN rail. Figure 1: Martin DIN rail dimensions (in mm) Corrosion-resistant DIN rail can be ordered from Martin (see “Accessories” on page 41). Dimensions for the DIN rail supplied by Martin are given in Figure 1.
  • Page 13 Use a 2.5 mm Allen key to tighten the mounting clamp screw (see B). Figure 2: Mounting on DIN rail Mounting the Easypix luminaire vertically The mounting clamp screws will not hold the product securely on the DIN rail if luminaire is installed vertically. You must therefore insert...
  • Page 14 DIN rail. Adjusting tilt angle The Easypix luminaire can be tilted through 95°. Figure 4: Tilt angle To adjust the tilt angle: See Figure 5.
  • Page 15 Figure 5: Releasing and tighten the tilt locking lock Mounting the Easypix Power Fasten the Easypix Power securely to a flat surface in a location that is accessible for service. To mount it, use M5 screws in the four mounting holes.

  • Page 16: Connections - General

    Warning! Do not exceed the maximum permitted number of luminaires connected to one Easypix Power unit, i.e. 24 Easypix 300 luminaires or 6 Easypix 1200 luminaires or any mixture of Easypix 300 and Easypix 1200 luminaires that is maximum 7.2 meters in length.

  • Page 17: Ac Power

    Important! Do not connect the Easypix system to an electrical dimmer system. Doing so can damage the electronics. The Easypix lighting system is supplied with AC power via the Easypix Power. If you require help in planning or dimensioning the power distribution system, please contact your Martin supplier for assistance.

  • Page 18: Connecting To Power

    Connecting to power The Easypix Power is supplied with an IEC power cable ready for connection to a single-phase 3-wire (live, neutral, ground/earth) power distribution system at 100-120/200-240 VAC nominal, 50/60 Hz. Details of standard US and EU conductor identification systems are given in Table 1.

  • Page 19: Control Data Link

    Control data link The Easypix Power must be connected via a control data link for DMX controller or synchronized (master/slave) operation. The following considerations must be taken into account when planning the data link: • Use RS-485 data cable for the data link. RS-485 cable has low capacitance and a characteristic impedance of 85 to 150 Ohms.
  • Page 20 XLR 5-pin connection Many DMX lighting controllers have XLR 5-pin output connectors. To connect these to the RJ-45 connectors on the Easypix Power, use an XLR 5-pin to RJ-45 adapter, (available from Martin, P/N 11840111). If you need to rewire XLR connectors, pin numbers are normally marked on connectors.
  • Page 21 (see under ‘Accessories’ on page 41). The maximum permitted power/data cable length from the Easypix Power to the last Easypix luminaire on the custom cable link is 100 m (328 ft.). Important! The Easypix luminaire cable has identical connectors to the cable used in Martin Tripix™...

  • Page 22: System Setup

    Output II. Each output channel can be controlled as one pixel. The two output channels added together can drive up to twenty-four Easypix 300s or six Easypix 1200s or any mixture that does not exceed 7.2 meters in total. You can distribute the Easypix luminaires as you like between the two output channels.
  • Page 23 Enabling stand-alone operation See Table 2. DIPs DMX Modes DMX Mode DMX Mode HSI DMX Address 1-510 Standalone Modes Type Name Standalone ON + Master Standalone OFF + Slave Standalone Program 0-64 ALL OFF SIMPLE COLORS GREEN BLUE 4 Factory Default ALL ON CYAN...
  • Page 24 NATES I RED / PINK RED / AQUA GREEN / YELLOW GREEN / BLUE ALTER- GREEN / NATES II ORANGE BLUE / PURPLE BLUE / ORANGE BLUE / YELLOW FADES TO WHITE GREEN BLUE CYAN MAGENTA YELLOW Easypix user manual...
  • Page 25 DIPs DMX Modes DMX Mode DMX Mode HSI DMX Address 1-510 Standalone Modes Type Name Standalone ON + Master Standalone OFF + Slave Standalone Program 0-64 RED PULSE GREEN PULSE BLUE PULSE PULSES CYAN PULSE MAGENTA PULSE YELLOW PULSE WHITE PULSE RGB PULSE CMY PULSE FLASHES...

  • Page 26: Setting Synchronized Master/Slave Mode

    If the system is powered on when you select a stand-alone program on the DIP switch, allow several seconds for the selection to take effect. If a DMX signal is sent to the Easypix Power, it overrides any stand- alone program that is currently running.
  • Page 27 DMX controller to the 3 DMX channels (out of the 512 channels available in one DMX universe) the Easypix Power uses. The first of these 3 channels is the Easypix Power’s DMX address. You must set the Easypix Power’s DMX address as a binary number on the unit’s DIP switch with the lowest value on pin 1 and the highest value...
  • Page 28 Table 3: DMX address DIP switch settings Alternatively, use the Martin DIP Switch Calculator, available for use online and downloadable free of charge at http://www.martin.dk/service/dipswitchpopup.htm (see Figure 10). Easypix user manual...

  • Page 29: Setting Rgb Or Hsi Color Control Mode

    Figure 10: Martin™ DIP Switch Calculator Setting RGB or HSI color control mode To set the Easypix system to RGB mode, set DIP switch pin 10 to OFF. The three DMX channels will now control red, green and blue. To set the Easypix system to HSI mode, set DIP switch pin 10 to ON.

  • Page 30: Operation

    Ambient temperatures The Easypix system can be operated at ambient temperatures from 5° C (41° F) to 40° C (104° F). Status LEDs on the Easypix Power Colored LEDs on the Easypix Power indicate current system status.
  • Page 31 When the Easypix Power is receiving a valid DMX signal, the green DMX LED lights. Stand-alone operation When the Easypix Power is set up for stand-alone operation, Easypix luminaires begin displaying their stand-alone program as soon as power is applied to the Easypix Power.

  • Page 32: Service And Maintenance

    Martin Service organization or its authorized agents. It is Martin policy to use the best quality materials available to ensure optimum performance and the longest possible component lifetimes.

  • Page 33: Diffuser Filters

    LEDs. The Easypix luminaire is supplied with a narrow beam angle diffuser filter installed. The diffuser filter softens the output from the LEDs and alters the beam angle.
  • Page 34 Slide the front cover back into the aluminum profile housing. Replace the side plate and the screws. Drive all screws gradually to the bottom. Do not over-tighten, or you will damage the thread. Reapply power. Figure 10: Installing the diffuser filter Easypix user manual...

  • Page 35: Fuse Replacement

    Replace fuses with ones of the same type and rating only. Do not attempt to bypass a fuse. The Easypix Power is protected by a 5.0 amp slow-blow primary fuse. If the Easypix Power is completely dead, the primary fuse may have blown.
  • Page 36 • The Easypix main software update file, downloadable free of charge from the “After-Sales” area of the Martin website (this file can be downloaded automatically from within the Martin Uploader application) • A Martin Universal USB-DMX Interface or similar PC/luminaire hardware interface and a Windows PC.

  • Page 37: Dmx Protocols

    DMX protocols RGB Mode Start code = 0 Channel Value Percentage Function 0-255 0-100% Intensity 0-100% Green 0-255 0-100% Intensity 0-100% Blue 0-255 0-100% Intensity 0-100% HSI Mode Start code = 0 Channel Value Percentage Function Red → Orange → Amber → 0-255 0-100% Yellow →...

  • Page 38: Troubleshooting

    Inspect connections and cables. Correct poor connections. Fault on DMX link. Repair or replace damaged cables. Check Easypix Power is set to correct DMX mode. Incorrect DMX addressing. Check Easypix Power’s DMX address and channels assigned One or more Easypix to it at controller.

  • Page 39: Specifications

    Control options......DMX, stand-alone, synchronized (master/slave) DMX channels ............ 3 channels per output channel Stand-alone memory ..64 pre-programmed static/dynamic scenes/sequences DMX address setting ........ DIP-switch on Easypix Power device Protocol ................. USITT DMX512-A Receiver ....................RS-485 Firmware update ............Serial upload via DMX link Optics Light source .................
  • Page 40 Maximum connected number of luminaires per Easypix Power Easypix 300 luminaires ................... 24 Easypix 1200 luminaires ................... 6 Mixture of Easypix 300 and 1200 (max. length) ......... 7.2 meters Connections Easypix Power mains input ..........Male (C14) IEC socket Easypix Power data input and output ............RJ-45 Easypix luminaire connection ......

  • Page 41: Spare Parts

    Spare parts 5 AT main fuse................P/N 05020010 Accessories Set of 8 Easypix 300 Diffusers, Narrow ........P/N 91611343 Set of 8 Easypix 300 Diffusers, Medium ........P/N 91611344 Set of 8 Easypix 300 Diffusers, Wide ........... P/N 91611345 Set of 8 Easypix 1200 Diffusers, Narrow ........P/N 91611346...
  • Page 42 Easypix Power™ ................. P/N 90704410 All luminaires include a Narrow diffuser (installed). Medium and Wide diffusers are orderable separately. Custom colors are available by special order – please contact your Martin distributor for details. Specifications subject to change without notice. Please see www.martin.com for latest product information and specifications including photometric data.
  • Page 44 • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax +45 8740 0010...
