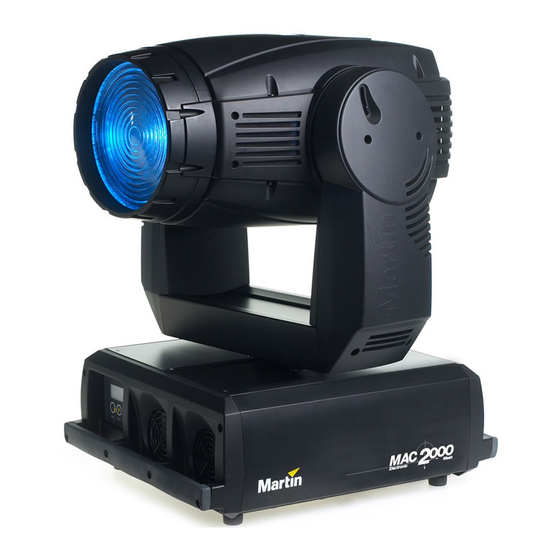

Summary of Contents for Martin MAC 2000

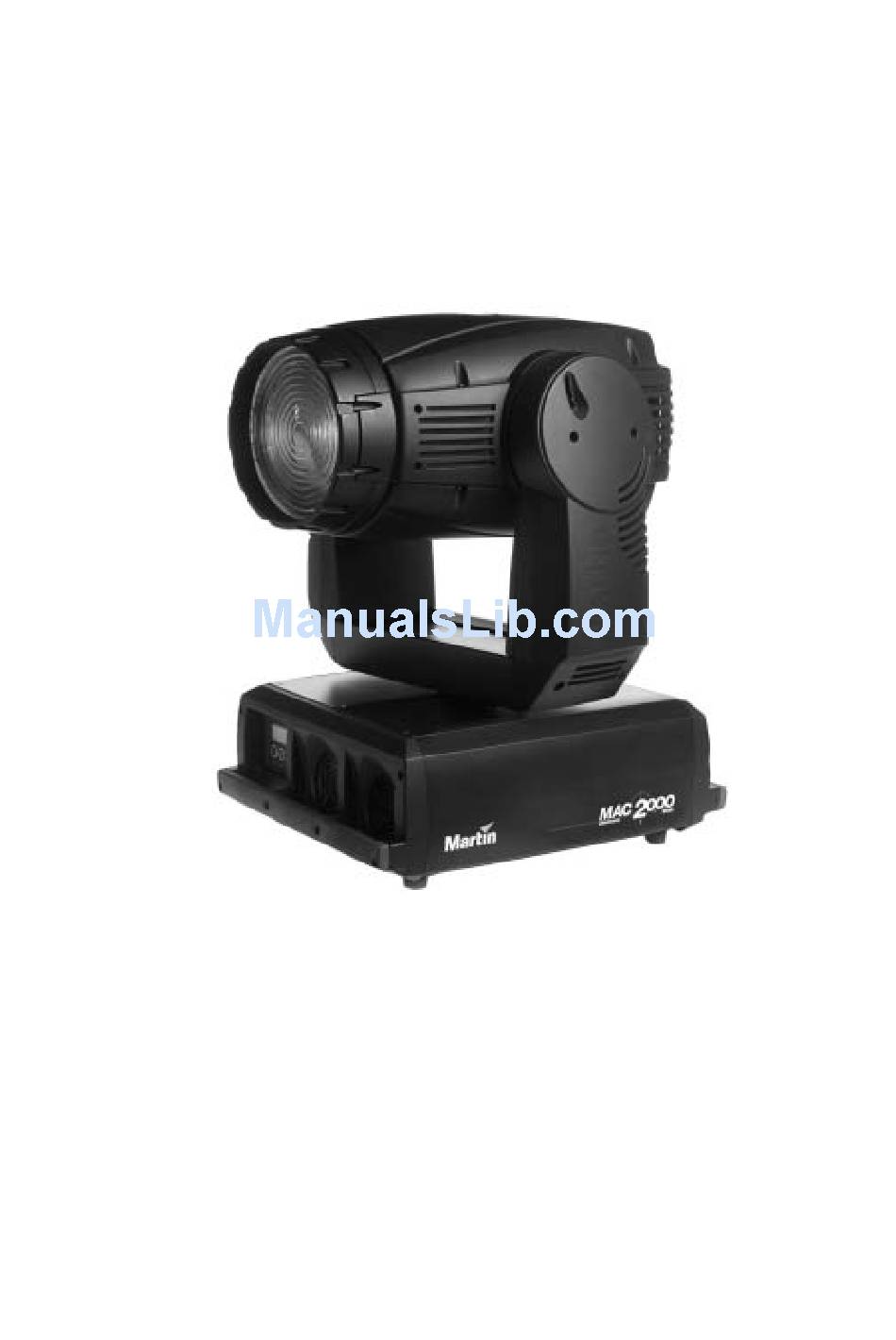

  • Page 1 MAC 2000 Wash preliminary user manual...
  • Page 2 270° 270° © 2001-2002 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Printed in Denmark. P/N 35000114 Rev. A...

  • Page 3: Table Of Contents

    MAC 2000 Wash safety information ........

  • Page 4: Introduction

    2000 Wash has a Fresnel lens fitted as standard, and is supplied with an additional PC lens, and a super-wide-angle lens is also available. The MAC 2000 Wash is fitted with a switch mode power supply allowing it to 'auto sense' and automatically adjust for the local electrical power.
  • Page 5 T O P R O T E C T Y O U R S E L F A N D O T H E R S F R O M I N J U R Y D U E T O F A L L S •...

  • Page 6: Transportation

    RANSPORTATION Important! Release the transport locks before operating the fixture. Included items The MAC 2000 Wash is shipped in a 1 or 2 unit flight case that contains the following items. • User manual • 2 x 20 A main fuses (for use with 100-130 V local power supply) •...

  • Page 7: Double Flight Case

    Double flight case T o un pack 1 Open the flight case and pull the drawer all the way out. 2 Release the head (tilt) transport lock. 3 Install rigging hardware as described on page 12. 4 With one person on each side, lift the fixture out of the flight case.

  • Page 8: Lamp

    About the HMI 1200 W/S lamp The MAC 2000 Wash comes with a double-ended OSRAM HMI 1200 W/S discharge lamp installed. This highly-efficient short-arc source provides an exceptionally stable 6000K color temperature, a color rendering index greater than 90, and an TO P average life of 750 hours.
  • Page 9 “Time” on page 14. To align the lamp 1 Switch on the MAC 2000 Wash and allow it to reset. Using either a controller or the control module, turn on the lamp and project an open white beam on a flat surface.

  • Page 10: Ac Power

    MAC 2000 Wash automatically adapts to the mains voltage and frequency. Fuses The MAC 2000 Wash uses two 20 A T (time delay) main fuses, which are located near the power switch. Power connection Important! Connect the MAC 2000 Wash directly to AC power. Do not connect it to a dimmer system;...

  • Page 11: Data

    Important! Never connect more than 1 data input and 1 data output. The MAC 2000 Wash has both 3-pin and 5-pin XLR sockets for DMX input and output. The pin-out on all sockets is pin 1 to shield, pin 2 to cold (-), and pin 3 to hot (+). There is no connection to pins 4 and 5.

  • Page 12: Rigging

    IGGING The MAC 2000 Wash can be placed on stage or clamped to a truss in any orientation. The Fast-Lock system enables quick and easy fastening of the clamp brackets in 4 positions as shown Figure 8. Figure 8: Clamp bracket positions Warning! Always use 2 clamps to rig the fixture.

  • Page 13: Control Panel

    Navigation The DMX address and any messages (see page 31) are displayed when the MAC 2000 Wash is turned on. To enter the menu, press [Menu]. Press [Up] and [Down] to move within the menu. To select a function or submenu, press [Enter].

  • Page 14: Readouts

    The firmware version is also displayed briefly at startup. D M X D MX L menu shows the DMX start code ( S T CO ) and DMX values received for each effect. MAC 2000 Wash...

  • Page 15: Service Messages

    Service messages The Service LED on the control panel lights under conditions that require fixture service, and there is a message describing the service required. To display the message, select S M S G in the main menu. This item is available only when the LED is lit.
  • Page 16 Press [Enter] to save the setting. S O F T W A R E U P L O A D The software update mode is normally engaged automatically by the upload device. MAC 2000 Wash...

  • Page 17: Effects

    FFECTS The MAC 2000 Wash is compatible with USITT DMX512 controllers. The fixture has two DMX operating modes, 8-bit and 16-bit.16-bit mode requires two more DMX channels than 8-bit mode but provides more precise pan/tilt positioning. All other functions are identical. See “DMX protocol” on page 22.

  • Page 18: Optics

    C H A N G I N G C O L O R F I L T E R S Additional color filters can be ordered from Martin. To ensure the best performance, lenses must be fitted with the coated surface away from the lamp.

  • Page 19: Changing The Front Lens

    Changing the front lens The MAC 2000 Wash has a Fresnel lens fitted as standard, and is also supplied with a PC lens. A super-wide-angle lens is also orderable separately. Warning The front lens is very heavy. Ensure that it is secured to the MAC 2000 Wash with the safety cable provided.

  • Page 20: Routine Maintenance

    OUTINE MAINTENANCE The MAC 2000 Wash requires routine cleaning. The schedule depends heavily on the operating environment; please consult a Martin service technician for recommendations. Refer all service not described here to a qualified Martin technician. Important! Excessive dust, smoke fluid, and particulate buildup degrades performance and causes overheating and damage to the fixture that is not covered by the warranty.

  • Page 21: Software Installation

    R E Q U I R E M E N T S The following are required in order to install software. • The MAC 2000 Wash update file, available for download from the User Support Area of the Martin web site (http://www.martin.dk).

  • Page 22: Dmx Protocol

    • “16-bit protocol” on page 23 • “8-bit protocol” on page 26 The 16-bit is the default protocol that is used. To modify this use the control menu. For more information see “Control menu” on page 29. MAC 2000 Wash...

  • Page 23: 16-Bit Protocol

    16-bit protocol DMX channel Value Percent Function Start code = 0 Shutter, Strobe, Reset, Lamp On/Off 0 - 19 0 - 7 Shutter Closed (lamp reduced to 700 W (E-ballast) after 10 sec.) 20 - 49 8 - 19 No function (Shutter Open) 50 - 72 20 - 28 Strobe on fast->slow...
  • Page 24 Fan speed (Regulation, min. noise level - Overriding the FAN menu setting) 246 – 248 96 - 97 249 – 251 Fan speed (Full speed, max. cooling - Overriding the FAN menu setting) 252 – 255 99 - 100 Blackout while moving Table 2: 16-bit DMX protocol MAC 2000 Wash...
  • Page 25 DMX channel Value Percent Function Start code = 0 Speed: Dimmer, Cyan, Magenta, Yellow, CTC, Zoom. 0 – 2 Tracking Speed Fast → Slow 3 – 239 1 - 93 240 – 242 94 - 95 Tracking (Studio mode disabled – Overriding the MOdE menu setting) 243 –...

  • Page 26: 8-Bit Protocol

    248 - 251 97 - 98 Random color medium,set min./ max. CMY limits on channels 2-4 252 - 255 Random color slow,set min./ max. CMY limits on channels 2-4 99 - 100 Table 3: 8-bit DMX protocol MAC 2000 Wash...
  • Page 27 DMX channel Value Percent Function Start code = 0 Color Wheel 2 (Multi Color, MCW) White White → Color 2, 1 1 - 31 1 - 12 Color 2, 1 Color 2, 1 → Color 2, 2 33 - 63 14 - 24 Color 2, 2 Color 2, 2 →...
  • Page 28 246 - 248 Tracking (Shortcuts disabled - Overriding the SCUT menu setting) Tracking (Shortcuts enabled - Overriding the SCUT menu setting) 249 - 251 252 - 255 99 - 100 Blackout while moving Table 3: 8-bit DMX protocol MAC 2000 Wash...

  • Page 29: Control Menu

    ONTROL MENU To be completed. Control menu...

  • Page 30: Adjustment Submenu

    DJUSTMENT SUBMENU This functions are used by Martin service technicians to adjust the fixture. This menu is located under U TI L /A dj To be completed. MAC 2000 Wash...

  • Page 31: Display Messages

    ISPLAY MESSAGES MERR................Memory LERR .

  • Page 32: Troubleshooting

    Fixture is too hot. Clean air filters. Reduce ambient room temperature. Lamp cuts out intermittently. The transformer settings do not match local Disconnect fixture. Check transformer settings and AC voltage and frequency. correct if necessary. Table 4: Troubleshooting MAC 2000 Wash...

  • Page 33: Circuit Board Connections

    IRCUIT BOARD CONNECTIONS TILT BROWN BLACK Door Switch Door Switch TILT Feedback ELEC. BALLAST ELEC. BALLAST PAN Feedback PAN Feedback E. Ballast Fan E. Ballast Fan Zoom Sensor Zoom Sensor PL 52 Head Left Fan Head Left Fan Color Wheel Sensor Color Wheel Sensor PL 53 Head Right Fan...

  • Page 34: Specifications

    250 V / 60 Hz: ..............1460 W @ 8.6 A MAC 2000 Wash...
  • Page 35 MAC 2000 Wash in 2-unit flight case: ........
