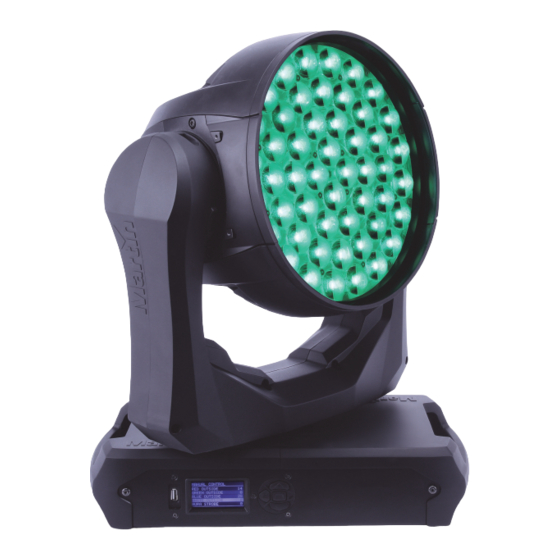

MAC Quantum Wash™
SAFETY AND INSTALLATION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Martin MAC Quantum Wash

Summary of Contents for Martin MAC Quantum Wash

  • Page 1 MAC Quantum Wash™ SAFETY AND INSTALLATION MANUAL...
  • Page 2 The Martin logo, the Martin name, the Harman name and all other trademarks in this document pertaining to services or products by Martin Professional or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional or its affiliates or subsidiaries.

  • Page 3: Table Of Contents

    Contents Safety Information ............4 Introduction .

  • Page 4: Safety Information

    The latest versions of this Safety and Installation Manual and the MAC Quantum Wash User Guide are available for download from the MAC Quantum Wash Product Support page on the Martin™ website at www.martin.com.
  • Page 5 • Use only a Neutrik PowerCon NAC3FCA cable connector to connect to the power input socket. • Do not expose the fixture to rain or moisture. • Refer any service operation not described in this manual or in the MAC Quantum Wash User Guide to Martin™ Service or an authorized Martin™ Service partner.

  • Page 6: Introduction

    Release the tilt lock and allow the fixture to cool before packing it in its flightcase. The anti-shock material in the MAC Quantum Wash flightcase is designed to protect the head without the tilt lock applied. Release the tilt lock when transporting the fixture in the flightcase. Leaving the tilt lock applied may cause damage that is not covered by the product warranty.

  • Page 7: Physical Installation

    Warning! The MAC Quantum Wash has a powerful pan motor. The torque reaction when the head is panned suddenly can cause the base to move if the fixture is standing unsecured on a surface. Do not apply power to the MAC Quantum Wash unless the base is securely fastened to a surface or to rigging hardware.
  • Page 8 8. Check that other lighting fixtures cannot project light at the MAC Quantum Wash from a distance of less than 3 m (10 ft.), as intense illumination can damage the MAC Quantum Wash’s display.

  • Page 9: Ac Power

    AC power at 120-240 V (nominal), 50/60 Hz. Power input Important! Connect the MAC Quantum Wash directly to AC power. Do not connect it to a dimmer system; doing so may damage the fixture. The MAC Quantum Wash requires a power input cable with a Neutrik PowerCon NAC3FCA cable connector for AC mains power input.
  • Page 10 A, otherwise you may cause arcing at connector Figure 7: Mains input socket and mains power on/off switch terminals that can damage them. MAC Quantum Wash Safety and Installation Manual...

  • Page 11: Dmx Data Link

    1. Connect the DMX data output from the controller to the MAC Quantum Wash’s data input (male XLR) socket. 2. Run the data link from the MAC Quantum Wash’s data output (female XLR) socket to the data input of the next fixture.

  • Page 12: Service And Maintenance

    The user will need to clean and replace the air filter in the head and clean the MAC Quantum Wash periodically. The user may also upload firmware (fixture software) to the fixture via the DMX data input port or USB port using firmware and instructions from Martin™.

  • Page 13: Cleaning

    Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the MAC Quantum Wash. Cooling fans suck in airborne dust and smoke particles, and in extreme cases fixtures may require cleaning after surprisingly few hours of operation.

  • Page 14: Lubrication

    4. Check that the fixture is dry before reapplying power. Lubrication The MAC Quantum Wash does not require lubrication under normal circumstances. Moving parts can be checked and a long-lasting teflon-based grease reapplied by a Martin service partner if necessary.

  • Page 15: Using The Fixture

    Using the fixture Before using the fixture, download and read the latest version of the MAC Quantum Wash User Guide from the MAC Quantum Wash Product Support page on the Martin website at www.martin.com. The User Guide contains details of: •...

  • Page 16: Troubleshooting

    Repair or replace damaged cables. Insert DMX termination plug in data output socket Data link not terminated. of the last MAC Quantum Wash on the data link. Fixtures reset correctly but respond erratically or not at all Incorrect addressing of fixtures.

  • Page 17: Specifications

    Transceiver..............RS-485 Fixture software update ..... . . Via DMX with Martin™ USB Duo DMX Interface Box Optics Light source .
  • Page 18 MAC Quantum Wash™ in 2-unit flightcase ........
  • Page 19 This product contains a lithium battery. Ensure that it is disposed of correctly and responsibly by an authorized recycling or waste disposal center at the end of its life. Where applicable, Martin participates in schemes whose aim is to ensure that local recycling and/or waste disposal centers accept batteries from Martin products.
