Lilliput 569-O/P User Manual

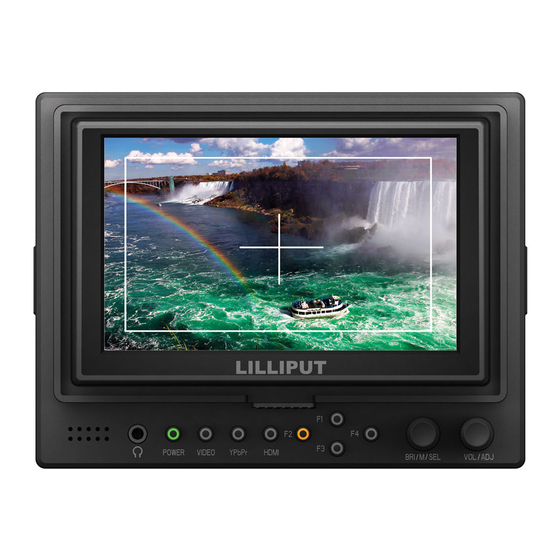

5" widescreen lcd field monitor with hdmi
Hide thumbs
Table of Contents

Advertisement

Quick Links

COLOUR TFT
LCD
MONITOR
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 569-O/P and is the answer not in the manual?

Questions and answers

Related Manuals for Lilliput 569-O/P

Summary of Contents for Lilliput 569-O/P

  • Page 1 COLOUR TFT MONITOR User Manual...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS: Please read manual before using this product. Please keep manual for future reference. Please read the cautions to prevent possible danger and loss of property Please enjoy the benefits of convenience, safety, and space-saving from this TFT LCD monitor in different ways. PRODUCTS: This product employs integrate circuits, lower power consumption, and lower radiation emission.

  • Page 3: Product Description

    PRODUCT DESCRIPTION 1. EAR: Earphone jack 2. POWER: ON/OFF (light turns red when standby, turns green when working) 3. VIDEO: Indicator lights up when signal switch to video state. 4. YPbPr: Indicator lights up when signal switch to YPbPr state. 5.
  • Page 4 9. Sun shade cover 10. Mounting socket (left side) 11. Video signal output 12. Video signal input 13. Audio signal input 14. Y signal input 15. Pb signal input 16. Pr signal input 17. HDMI (High Definition Multimedia Interface) signal output 18.

  • Page 5: Dv Battery Mount Plate

    DV BATTERY MOUNT PLATE: Standard mounts process： Following three types of battery plates are suitable for this device, user can choose two of the three (See the pictures below).
  • Page 6 DV Battery Mount Plate: Model DU21 for battery of Panasonic DV: NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with Panasonic battery DU06/VBD140/SANYO DZhs301sw/Hitachi DZ-HS303SW/BZ-BP14S/DZ3200/BP07W. Model QM91D for battery of SONY DV: DSCR1/F/S/MVCCD/E/HC15E/HC1E/AE1u/DCRTRV828/E/CCD-TRV116/D CR-DVD/PS105K/300K/10P/1E series. Model F970 for battery of SONY DV: DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700, GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C, HVR-V1C, FX7E F330.

  • Page 7: Setting Menu

    SAT/ADJ knob to confirm and adjust option value. After confirm the option value, then press BRI/M/SEL knob to return to the previous, and press the BRI/M/SEL knob again to exit the menu settings. MAIN MENU: a – Lilliput.com.ru PICTURE MENU: NAME FUNCTION Brightness...

  • Page 8: Source Menu

    KEY CON FIGURE: 4 user-definable function buttons: F1, F2, F3 and F4 functions can be customized as: mark, underscan, color mode, ratio, camera, peaking, false color, exposure and histogram. Knobs 1-2 can be set to alter the brightness, contrast, saturation, sharpness, tint, volume, red, green, and blue for the shortcut keys.
  • Page 9 MISC MENU Blue mode: blue mode can be set on/off. Reset: confirm the recovery into factory mode. Language: English/Chinese switch. Peaking: Mono/Color...
  • Page 10 ACCESSORIES: Standard accessories 1. Sun shade cover 1 piece 2. Battery plate (DC21/QM91D/F970/LP-E6) 2 piece (choose 2 out of 4) 3. Manual 1 copy 4. Shoe mount (for camera only) 1 piece 5. DC adapter 1 piece Optional accessories 1. HDMI to mini HDMI cable 1 piece 2.

  • Page 11: Troubleshooting

    PARAMETERS: Panel Size 5’’ TFT LCD Resolution 800×480, support 1920×1080 Contrast 600:1 Viewing Angle 130°/ 150°(H/V) Input Voltage DC 12V PAL， NTSC， 480p/i、 720p、 576i/p、 1080（ i 50/60） 、 Support model 1080p(50/60) (480i&576i are invalid under YPbPr) Input Signal HDMI, YPbPr, AV Battery F970\DU21\QM91D Current...
