Summary of Contents for Lilliput 5DII
-
Page 1: User Manual
COLOR TFT LCD MONITOR User Manual... -
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS: Please read manual before using this product. Please keep manual for future reference. Please read the cautions to prevent possible danger and loss of property Please enjoy the benefits of convenience, safety, and space-saving from this TFT LCD monitor in different ways. CAUTIONS：... -
Page 3: Product Description

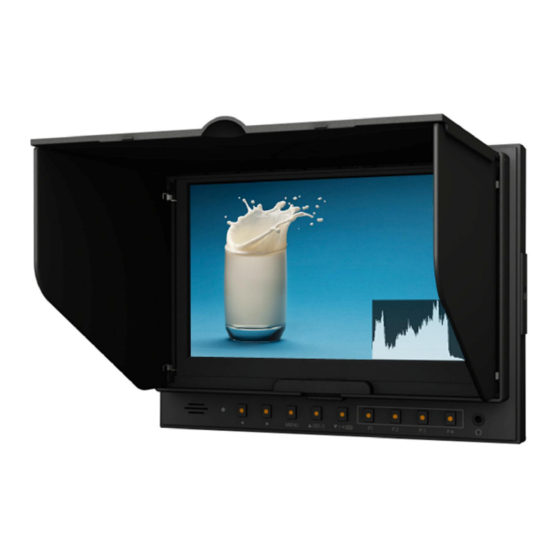

1 PRODUCT DESCRIPTION Positive: 1. Speaker. 2. Power indicator light：Light turns red when powered. 3. ◄ Left selection key, to select items on OSD menu and value option adjustment; Press to adjust the brightness, sharpness, contrast, saturation, volume and Tint value decrease (Tint adjustment is only available under VIDEO and NTSC mode). - Page 4 ：Down selection key, to select items on OSD menu; Press to switch ON/OFF pixel-to-pixel mode. 8. F1-F4：4 user-definable buttons： Default function: F1: Peaking F2: False Colors F3: Exposure F4: Histogram 9. Earphone jack. Back: 10. Mini USB input. (Only for program upgrades, do NOT use if non-professionals).
-
Page 5: Installation Of Sunshade Cover And Battery Plate
2 INSTALLATION OF SUNSHADE COVER AND BATTERY PLATE Installation of sunshade cover： Installation steps Installation completed Disassembly of sunshade cover： Disassembly steps： Disassembly completed：... - Page 6 Steps of sunshade cover on / off: * Please follow the instructions steps, or may damage the cover. Open Step: Closed steps: * Do not press the edge in the under of the cover, otherwise it will result in open failure. Installation of Battery and Battery Mount Plate...
- Page 7 The included three types of battery plate are suitable for this device, Standard accessories model: F970. DV Battery Mount Plate Specification: Model DU21 for battery of Panasonic DV: NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with Panasonic battery DU06/VBD140/SANYO DZhs301sw/Hitachi DZ-HS303SW/BZ-BP14S/DZ3200/BP07W. Model QM91D for battery of SONY DV: DSCR1/F/S/MVCCD/E/HC15E/HC1E/AE1u/DCRTRV828/E/CCD-TRV11 6/DCR-DVD/PS105K/300K/10P/1E series.
-
Page 8: Menu Setting
3 MENU SETTING *Before setting the functions, please make sure the device is connected correctly. 1. Shortcut keys: 1-1. the image menu When power on, press “ ” key on the device, Will appear at the bottom of ◄/► the screen display of the brightness, Then press the MENU button to select brightness, sharpness, contrast, saturation, volume, MENU and Exit. - Page 9 2. MENU Setting When power on, press “MENU” on the device. The menu of function setting will display on the screen. Press ◄/► buttons on the choose main menu the display. Then press▲/ key, Selection screen displayed on the sub-menu options; then ► to confirm the selection and adjustment of option value.
- Page 10 ITEMS OPTIONS Center Marker ON/OFF Screen Markers OFF, 95%,93%,90%,88%,85% and80% ITEMS E OPTIONS Language English /Chinese Input Format OSD 5S、10S、15S LOGO ON/OFF Freeze Input ON/OFF Image Flip ON/OFF Peaking Color / Mono Assistant Func. Manual/Auto Manufacturer Default OK/Cancel For program upgrades (such as accidentally press to reboot your computer)
- Page 11 Functions of F1-F4 buttons can also be customized: Aspect Ratio, Check Field, Freeze Input, Center Marker, Underscan/Overscan, H/V delay, Color Bar, Screen Marker, Zoom, Peaking, False color, Exposure and Histogram. Note: Off, camera, X2, X4 and X8 options can be set when zoom function customized as shortcut key.
-
Page 12: Accessories
4 ACCESSORIES: Standard accessories: 1. Flexible folding sun shade cover 1 piece 2. DC adapter 1 piece 3. HDMI Type A-C 1 piece 4. Manual 1 piece 5. Battery Plate: F-970 1 piece 6. Shoe mount (for camera only) 1 piece Optional accessories: 1. -
Page 13: Parameters
5 PARAMETERS: Panel Size 7’’ TFT LCD Resolution 1024×600, up to 1920×1080 Brightness 250cd/㎡ Contrast 800:1 Viewing Angle 160°/ 150°(H/V) Input Voltage DC 12V Input Signal HDMI Output Signal HDMI (optional) DV Battery F970/DU21/QM91D(optional) Battery Plate F970, DU21/QM91D(optional) Current 800mA ≤10W Power Consumption Working Temperature... -
Page 14: Trouble Shooting
6 TROUBLE SHOOTING 1. Only black-and-white display: Check whether the color saturation is properly setup. 2. Power on but no pictures: Check whether the cables of HDMI correctly connected. Please use the standard power adapter coming with the product package. Improper power input may cause the device.
