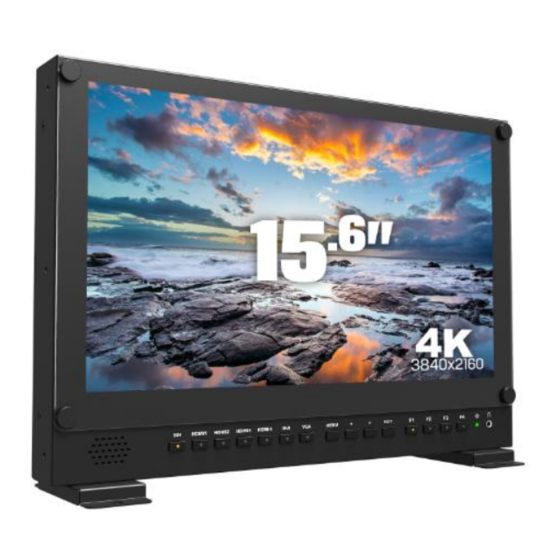

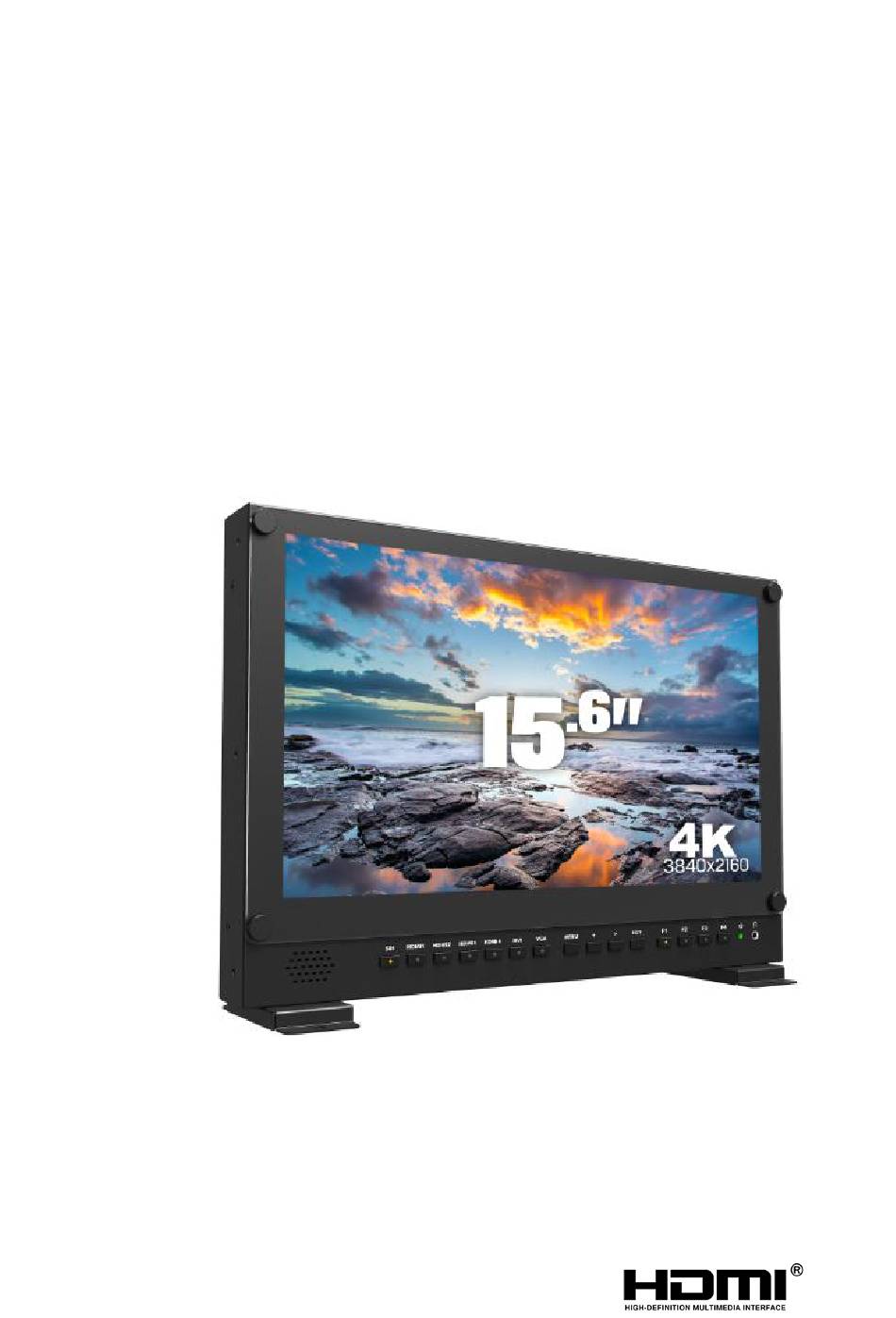

- Page 1 User Guide...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Please read User Guide before using this product. Please keep User Guide for future reference. Please read the cautions to prevent possible danger and loss of property. FEATURES 4K Ultra-HD resolution Ultra HD 4K screens containing 8.3 million pixel (3840×2160), so the resolution is four times that of Full HD.
-
Page 3: Table Of Contents
CAUTIONS Please do not place the display screen towards the ground. Please avoid heavy impact or drop onto the ground. Please do NOT use chemical solutions to clean this product. Please wipe with a clean soft cloth to maintain the brightness of the surface. -
Page 4: Product Description
1、PRODUCT DESCRIPTION Front 1. Speaker 2. SDI Signal switch to SDI mode when light on. 3. HDMI 1 ~ 4 Signal switch to HDMI mode when light on. 4. DVI Signal switch to DVI mode when light on. 5. VGA Signal switch to VGA mode when light on. - Page 5 Decrease the option value. Before enter the menu, single press to activate volume, press again to switch among of volume, brightness, contrast, color, hue, sharpness and backlight. 8. ► Select option in the menu. Increase the option value. 9. EXIT Back or exit.
- Page 6 Back 1. Handle 2. VESA 75×75 & VESA 100×100 mounting port 3. Connector protector Preventing connectors from damage. 4. TALLY port 5. VGA input port 6. DVI input port 7. HDMI input port×4。 HDMI 1: HDMI2.0, support 4K 60Hz HDMI 2,HDMI 3&HDMI 4: HDMI1.4, support 4K 30Hz 8.
-
Page 7: Sun Shade Installation
2. SUN SHADE INSTALLATION 1. Put the sun shade on the suitcase, and match the magnets on both sides. 2. As shown below after finished. -
Page 8: Menu Setting
3. MENU SETTING Please check whether the device is connected well or not. 3-1. F1~F4 user definable shortcut buttons Long keep pressing any one of the 4 buttons for 3-5 seconds to activate shortcut menu setting. Option selected will be highlighted as white, option will be highlighted as yellow, unavailable option will be highlighted as gray. - Page 9 3-3. MENU Operation When power on, press“MENU”on the device, The menu of function setting will display on the screen. Press ◄ / ► button to choose menu； Then press“MENU”button to confirm； Press“EXIT”button to return / exit menu. Brightness 0~100 Contrast 0~100 Saturation 0~100...
- Page 10 single display. LR Ratio Available when dual Input Swap display on left and right. Select Region Menu setting to region selected according to users’ needs. Input Signal switch to region selected according to users’ needs. Volume 0~100 Audio Audio Source Analog，...
-
Page 11: Accessories
4、ACCESSORIES 1. Folding sun shade cover 1 piece 2. Carry-on suitcase 1 piece 3. 15V DC adapter 1 piece 4. Adapter fixing belt 2 pieces 5. Battery plate bracket 1 piece 6. V-mount/Anton bauer mount power cable 1 piece 7. V-mount or Anton bauer mount 1 piece 8. -
Page 12: Parameters
5、PARAMETERS Panel 15”LED backlight Resolution 3840×2160 Aspect Ratio 16：9 Brightness 330cd/㎡ Contrast 1000: 1 Viewing Angle 176°/ 176°(H/V) Input Voltage DC 12~24V（XLR） Input Signal HDMI, VGA，DVI and 3G-SDI Power Consumption ≤15W Operating Temperature -0℃~60℃ Storage Temperature -20℃~60℃ 283×267×38mm Dimension （LWD） 524×305×170mm（with case）... -
Page 13: Trouble Shooting
6、TROUBLE SHOOTING 1. Only black-and-white display. Check whether the color saturation is properly setup or not. 2. Power on but no pictures. Check whether the cables of HDMI, VGA，DVI and 3G-SDI are correctly connected or not. Please use the standard power adapter coming with the product package.
