Page 1: User Manual

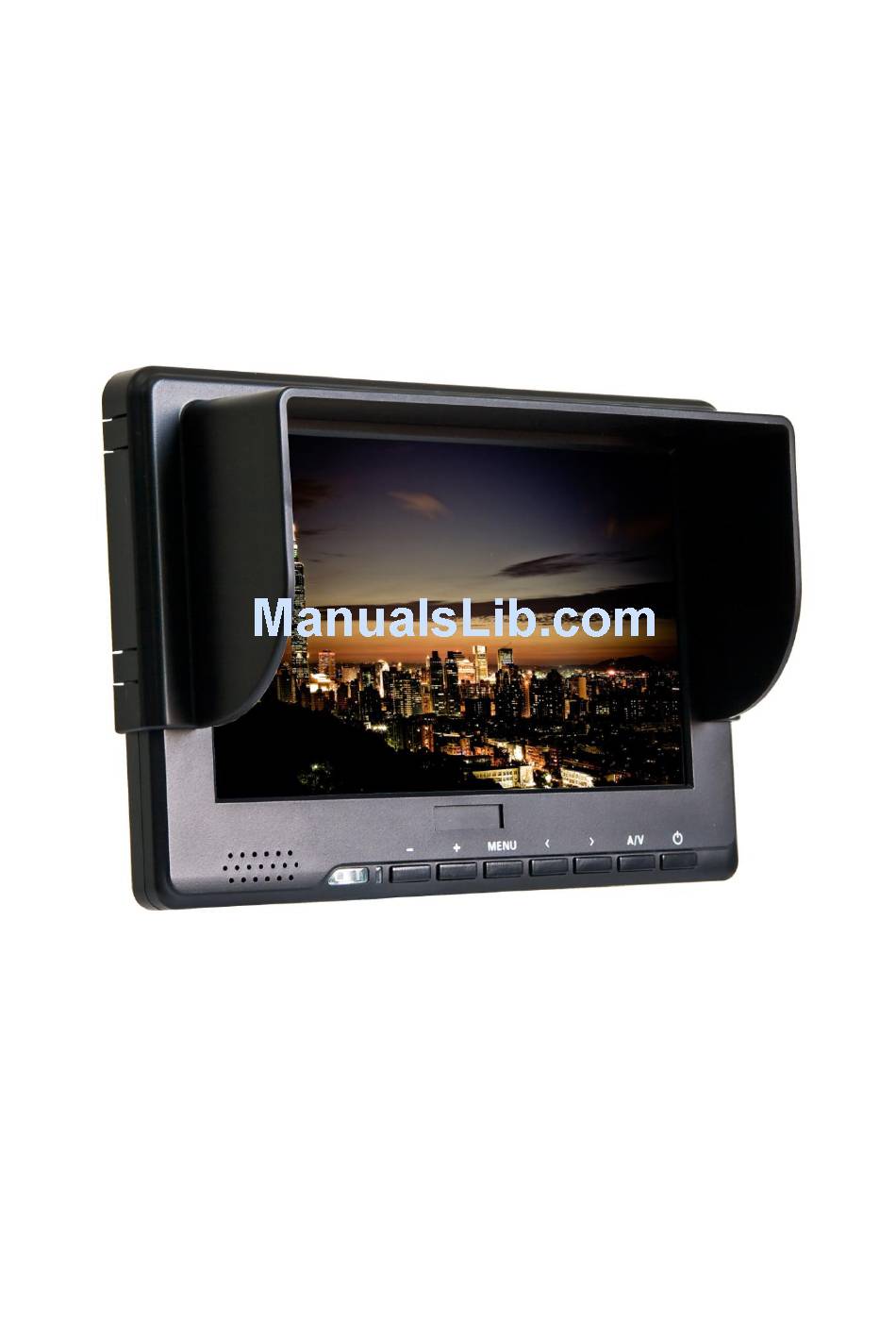

COLOR TFT LCD MONITOR User Manual... - Page 2 General Information Thank you for choosing our TFT LCD (liquid crystal display) monitor. This product employs integrate circuits, low power consumption, and no radiation emission. It has fashion designed appearance and good portability. The TFT LCD screen is the most suitable display for VGA, VCD, DVD, and GPS on vehicles or vessels.
-
Page 3: Table Of Contents
Table of Contents 1. PRODUCT DESCRIPTION ----------------------------------------- 2. REMOTE CONTROL------------------------------------------------- 3. POWER SOURCE ---------------------------------------------------- 4. BATTERY INSTRUCTION----------------------------------------- 5. SETTING MENU ------------------------------------------------- 6. ACCESSORIES -------------------------------------------------------- 7. PARAMETER ---------------------------------------------------------- 8. TROUBLESHOOTING ---------------------------------------------- 9. REMARK---------------------------------------------------------------... -
Page 4: Product Description
1. PRODUCT DESCRIPTION 1．Infrared signal receiver (work with remote control) 2．Battery indicator light: red while standby; green while working 3．–: Volume down, or value down while using menu setting functions 4．+: Volume up, or value up while using menu setting functions 5．... - Page 5 11．Mounting socket (right side) 12．SDI (Serial Digital Interface) signal input 13．SDI signal output 14．Y signal input 15．Video 1 signal input 16．Pb signal input 17．Video 2 signal inpu 18．Pr signal input 19．Audio signal input 20．Battery power on/off switch...
-
Page 6: Remote Control
21．HDMI (High Definition Multimedia Interface) signal input 22．4-pin XLR DC power input 23．DC power input 24．Battery slot 25．Mounting socket (bottom) REMOTE CONTROL 1．Power 2．Mute button 3．Display switch among HDMI、YPbPr、Video 1, Video 2, and SDI (optional, must with necessary equipment) circularly 4．MENU: enter menu function setting 5．▲: Up move;... -
Page 7: Power Source
POWER SOURCES This product package comes with a 12V DC adapter plug in to the DC power input (See PRODUCT DESCRIPTION 23). Another option of power source is using batteries. The product package comes with two types of batter slots (See BATTERY INSTRUCTION). The recommended batteries are Panasonic DU21 and Sony QM91D. -
Page 8: Setting Menu
2．Battery power control The battery switch controls whether to use battery power or not. Keep off while not using battery. Suggestion: Better take off the battery for long-time not using this product. 20. Battery Switch 2．Battery volume An icon of battery volume displays on the screen while using battery as power source. Battery power low Battery power full SETTING MENU... - Page 9 The following pictures are the setting displays of different modes. 1．OSD YPbPr/HDMI/SDI setting menu Picture: YPbPr/HDMI/SDI setting screen 2．OSD AV setting menu (Video 1/Video 2) The auto-detected AV format displays at the bottom of the screen. Picture: AV setting screen 3．Miscellaneous setting menu under YPbPr/HDMI/SDI modes, enter via item to a new page.
- Page 10 4．Icon description: Icon Name Function Brightness Adjust the level of brightness Contrast Adjust the level of contrast Saturation Adjust the level of saturation Tint Adjust the tint of image OSD H-Position Adjust the on-screen-display horizontally OSD V-Position Adjust the on-screen-display vertically Select “Yes”...
-
Page 11: Accessories
6. Accessories Picture: Accessories included in the product package On the above picture, from top to bottom, left to right, the included accessories are: Remote control 1 piece Bracket 1 piece 4-pin battery slot 1 piece 2-pin battery slot 1 piece Sun shade 1 piece User manual... -
Page 12: Troubleshooting
7. MAIN PARAMETERS 7’’ TFT LED (16:9) Panel Size Screen Resolution 800× 480 Brightness 450cd/㎡ or 250cd/㎡ Contrast 500 : 1 Viewing Angle 140° / 120° (H/V) Input Voltage DC 12V Input Signal HDMI, YPbPr, AV, SDI (optional) Current 650mA ≤... -
Page 13: Remark
9. REMARK It is normal to see some bright lines appear on the screen when turn off the device. Note: due to constant effort to improve products and product features, specifications may change without notice.
