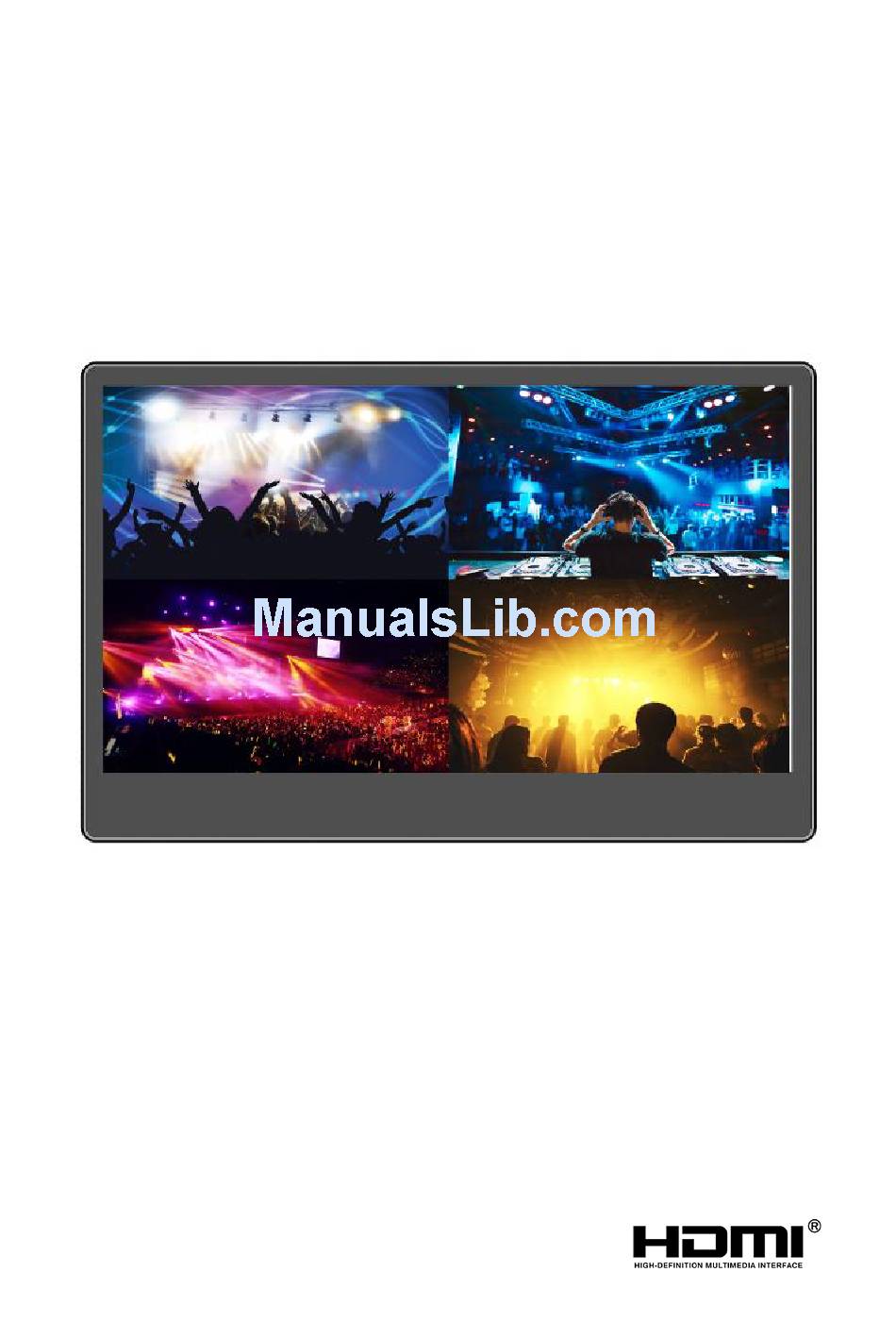

Page 1: User Guide
User Guide... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS: Please read User Guide before using this product. Please keep User Guide for future reference. Please read the cautions to prevent possible danger and loss of property. FEATURES: High resolution: 3840×2160; Wide voltage: DC 12-24V; ... - Page 3 Contents 1. PRODUCT DESCRIPTION ........3 2. BATTERY INSTALLATION ........4 3. MENU SETTING ............5 4. ACCESSORIES ............7 5. PARAMETERS ............8 6. TROUBLE SHOOTING ..........9...
-
Page 4: Product Description
1. PRODUCT DESCRIPTION 1．MENU Dial： Menu key： Press the dial to display menu on the screen when screen is lit. Options key：Left or right sliding the dial in the menu screen to select the desired menu option. Confirm key：Press the dial to confirm the selected option. 2．... -
Page 5: Battery Installation
Switch：Short press to switch among of DP，HDMI 1，HDMI 2， HDMI 3，HDMI 4 and 3G-SDI. 5．Battery jar. 6．Battery release button 7．3G-SDI input/output interface. 8．HDMI input interface. HDMI 1: HDMI2.0, support 4K 60Hz HDMI 2~4: HDMI1.4, support 4K 30Hz 9．DP input interface. 10．Speaker. -
Page 6: Menu Setting
3. MENU SETTING Before setting the functions, please make sure the device is connected correctly. 3-1. F1~F2 User-definable function buttons: Long press any F1-F2 key for 3-5 seconds to pop-up shortcut menu directly. As shown in Figure (default menu button in white font). Select option via sliding to the left or right. - Page 7 0~100 Brightness Contrast 0~100 Color Space Rec709, Native Saturation 0~100 Picture 0~100 Sharpness Temperature 9300, 7500, 6500, 5800, User (R.G. B) Backlight 0~100 Center Marker ON, OFF Safety Marker OFF, 95%, 93%, 90%, 88%, 85%, 80% Aspect Marker OFF, Full, 17:9, 16:9, 4:3, 1.85:1, 2.35:1 Aspect Full screen, 17:9, 16:9, 4:3, 1.85:1, 2.35:1 Underscan...
-
Page 8: Accessories
4. ACCESSORIES Standard: 1. 12V DC adapter 1 piece 2. Folding sun shade cover 1 piece 3. HDMI 2.0 A/C cable 1 piece 4. VESA battery plate 1 piece 5. Shoe mount 1 piece 6. Manual 1 copy Optional: 1. V-mount or Anton bauer mount 1 piece 2. -
Page 9: Parameters
5. PARAMETERS Panel 12.5” 8bit Physical 3840×2160 Resolution Brightness 400 cd/㎡ Contrast 1500: 1 Viewing Angle 170° / 170° (H/V) Input Voltage DC 7-20V Input Signal Display Port, HDMI 1, HDMI 2, HDMI 3, HDMI 4 and 3G-SDI Output Signal 3G-SDI 525(59.94i) 625(50i) -
Page 10: Trouble Shooting
6. TROUBLE SHOOTING 1. Only black-and-white display: Check whether the color saturation is properly setup or not. 2. Power on but no pictures: Check whether the cables of are correctly connected DP, HDMI, and 3G-SDI or not. Please use the standard power adapter coming with the product package.
