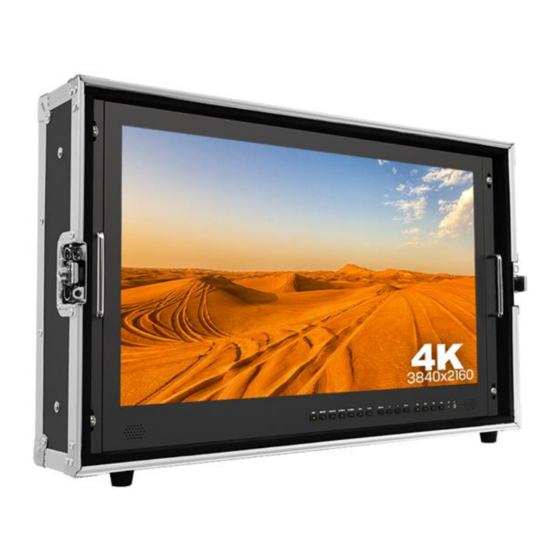

Summary of Contents for Lilliput BM280-4K-VBP
- Page 1 User Guide...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Please read User Guide before using this product. Please keep User Guide for future reference. Please read the cautions to prevent possible danger and loss of property. FEATURES 4K Ultra-HD resolution Ultra HD 4K screens contain 8.3 million pexel(3840×2160), so the resolution is four times that of Full HD.
- Page 3 Metal housing A good protection from damage with all aluminum main body, to extend the life time of your monitor. Rich interfaces The monitor comes with 3G-SDI, HDMI, VGA, DVI & Audio interfaces. Multiple inputs meet the best need of various professional display solutions. CAUTIONS ...
-
Page 4: Table Of Contents
Contents 1. PRODUCT DESCRIPTION ..............4 2. SUN SHADE INSTALLATION ............. 7 3. MENU SETTING ..................8 4. ACCESSORIES ..................11 5. PARAMETERS ..................12 6. TROUBLE SHOOTING................ 13 YP-05151108... -
Page 5: Product Description
1、PRODUCT DESCRIPTION Front 1. Speaker 2. SDI Signal switch to SDI mode when light on. 3. HDMI 1 ~ 4 Signal switch to HDMI mode when light on. 4. DVI Signal switch to DVI mode when light on. 5. VGA Signal switch to VGA mode when light on. - Page 6 Decrease the option value. Before enter the menu, single press to activate volume, press again to switch among of volume, brightness, contrast, color, hue, sharpness and backlight. 8. ► Select option in the menu. Increase the option value 9. EXIT Back or exit 10.
- Page 7 Back 1. Handle 2. VESA 75×75 & VESA 100×100 mounting port 3. Connector protector Preventing connectors from damage. 4. TALLY port 5. VGA input port 6. DVI input port 7. HDMI input port×4。 HDMI 1: HDMI2.0, support 4K 60Hz HDMI 2,HDMI 3&HDMI 4: HDMI1.4, support 4K 30Hz 8.
-
Page 8: Sun Shade Installation
2. SUN SHADE INSTALLATION 1. Put the sun shade on the suitcase, and match the magnets on both sides. 2. As shown below after finished. -
Page 9: Menu Setting
3. MENU SETTING Please check whether the device is connected well or not. 3-1. F1~F4 user definable shortcut buttons Long keep pressing any one of the 4 buttons for 3-5 seconds to activate shortcut menu setting. Option selected will be highlighted as white, option will be highlighted as yellow, unavailable option will be highlighted as gray. - Page 10 3-3. MENU Operation When power on, press“MENU”on the device, The menu of function setting will display on the screen. Press ◄ / ► button to choose menu； Then press“MENU”button to confirm； Press“EXIT”button to return / exit menu. Brightness 0~100 Contrast 0~100 Saturation 0~100...
- Page 11 single display. LR Ratio Available when dual Input Swap display on left and right. Select Region Menu setting to region selected according to users’ needs. Input Signal switch to region selected according to users’ needs. Volume 0~100 Audio Audio Source Analog，...
-
Page 12: Accessories
4、ACCESSORIES 1. Folding sun shade cover 1 piece 2. Carry-on suitcase 1 piece 3. 15V DC adapter 1 piece 4. Adapter fixing belt 2 pieces 5. Battery plate bracket 1 piece 6. V-mount/Anton bauer mount power cable 1 piece 7. V-mount or Anton bauer mount 1 piece 8. -
Page 13: Parameters
5、PARAMETERS Panel 28”LED backlight Resolution 3840×2160 Aspect Ratio 16：9 Brightness 450cd/㎡ Contrast 1000: 1 Viewing Angle 170°/ 160°(H/V) Input Voltage DC 12~24V（XLR） Input Signal AV, HDMI, VGA，DVI and 3G-SDI Power Consumption ≤ 48W Operating Temperature -0℃~60℃ Storage Temperature -20℃~60℃ 670×425×45mm Dimension （LWD）... -
Page 14: Trouble Shooting
6、TROUBLE SHOOTING 1. Only black-and-white display. Check whether the color saturation is properly setup or not. 2. Power on but no pictures. Check whether the cables of AV, HDMI, VGA，DVI and 3G-SDI are correctly connected or not. Please use the standard power adapter coming with the product package.
