Summary of Contents for Atlona AT-UHD-SW-52

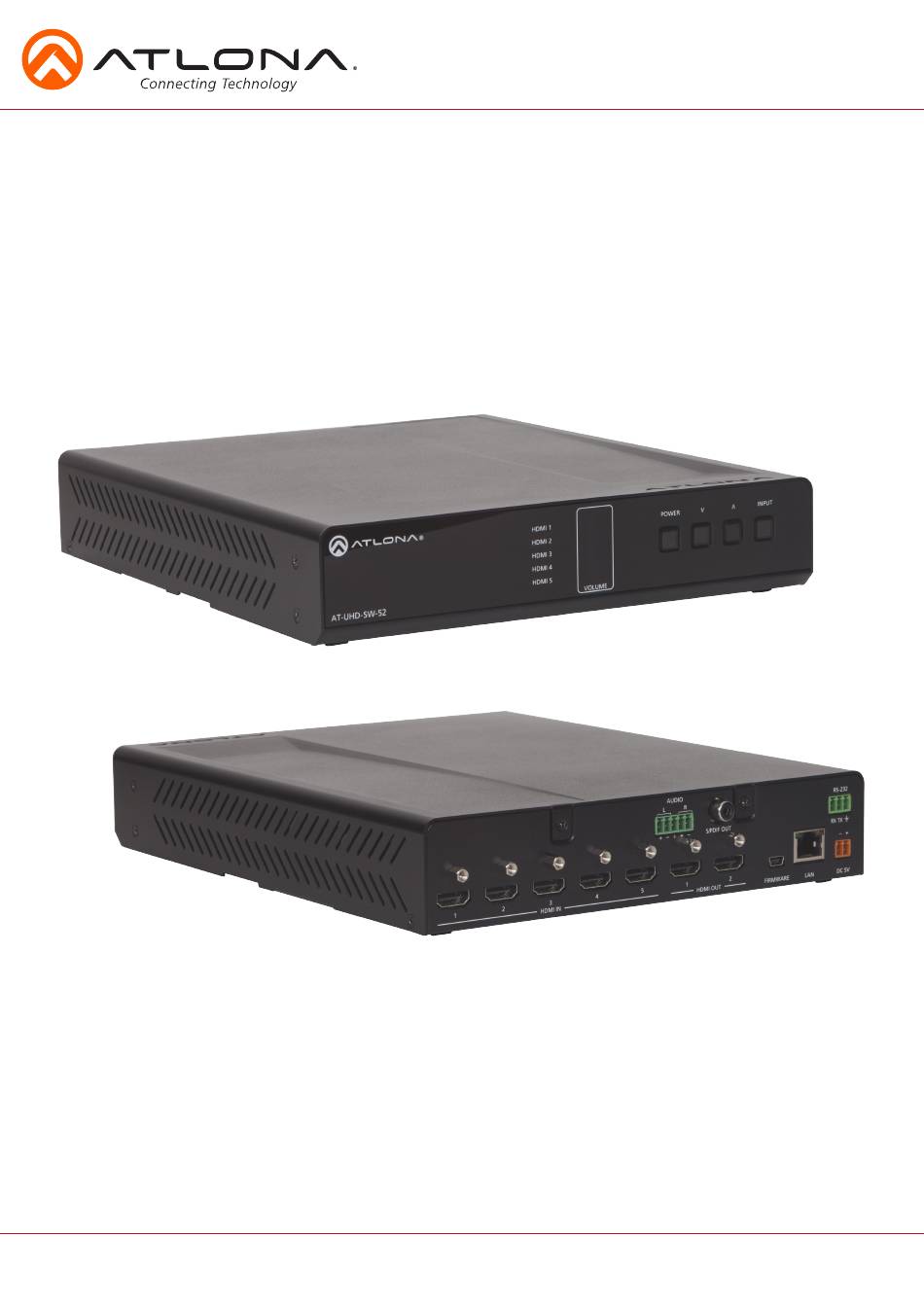

- Page 1 4K/UHD 5 Input HDMI Switcher with Mirrored HDMI Outputs AT-UHD-SW-52 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 1 4K/UHD 5 Input HDMI Switcher with Mirrored HDMI Outputs AT-UHD-SW-52 User Manual Please check http://www.atlona. com/product/AT-UHD-SW-52 for the most recent firmware update or manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
8. Analog Audio ....................6 9. WebGUI ....................7-12 10. RS-232 ....................13-15 11. Installation Diagram ....................16 12. Specifications ....................17 13. Safety Information ....................18 14. Warranty ....................19-20 15. Registration ....................20 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
10. RS-232 ....................13-15 11. Installation Diagram ....................16 12. Specifications ....................17 13. Safety Information ....................18 14. Warranty ....................19-20 15. Registration ....................20 Firmware 1.4.05 (02/2017) Commands added Pg. 14, 15 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
• Digital audio de-embedding through the S/PDIF output for up to DTS 5.1™ and Dolby Digital ® • EDID management • Easy to use webGUI through TCP/IP connection • Half-rack size with rack mount ears Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
• Digital audio de-embedding through the S/PDIF output for up to DTS 5.1™ and Dolby Digital ® • EDID management • Easy to use webGUI through TCP/IP connection • Half-rack size with rack mount ears Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 4: Panel Descriptions
POWER INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 VOLUME AT-UHD-SW-52 AUDIO RS-232 1. HDMI LEDs - Illuminates to indicate the selected source S/PDIF OUT RX TX 2. Volume LEDs - Displays the volume level 3. Power Button - Turns switcher on or places it in standby mode... -
Page 4: Panel Descriptions
POWER INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 VOLUME AT-UHD-SW-52 AUDIO RS-232 1. HDMI LEDs - Illuminates to indicate the selected source S/PDIF OUT RX TX 2. Volume LEDs - Displays the volume level 3. Power Button - Turns switcher on or places it in standby mode... -
Page 5: Arc
Bidirectional HDMI w/ARC signal Audio loop-out HDMI 1 POWER INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 S/PDIF audio loop-out VOLUME AT-UHD-SW-52 AUDIO RS-232 HDMI S/PDIF OUT RX TX HDMI IN HDMI OUT DC 5V Bidirectional HDMI ARC signal Captive Screw Captive screw connectors are an added feature on the UHD-SW. -
Page 5: Arc
Bidirectional HDMI w/ARC signal Audio loop-out HDMI 1 POWER INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 S/PDIF audio loop-out VOLUME AT-UHD-SW-52 AUDIO RS-232 HDMI S/PDIF OUT RX TX HDMI IN HDMI OUT DC 5V Bidirectional HDMI ARC signal Captive Screw Captive screw connectors are an added feature on the UHD-SW. -
Page 6: Analog Audio
Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices. BALANCED UNBALANCED Important! With unbalanced connections a jumper is needed between ground and negative to reduce noise Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Analog Audio
Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices. BALANCED UNBALANCED Important! With unbalanced connections a jumper is needed between ground and negative to reduce noise Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 7 IP address set using RS-232 commands or the webGUI. TCP/IP WebGUI Atlona has created an easy to use WebGUI for initial setup and later changes to the configuration of the UHD-SW. To begin, plug a LAN cable into the LAN port of the UHD-SW and your network, then type the IP...
- Page 7 IP address set using RS-232 commands or the webGUI. TCP/IP WebGUI Atlona has created an easy to use WebGUI for initial setup and later changes to the configuration of the UHD-SW. To begin, plug a LAN cable into the LAN port of the UHD-SW and your network, then type the IP...
-
Page 8: Webgui
If your control system supports password protection, you can turn login mode on. The GUI always requires a password. Note: The username and password used in IP Login Mode will be the same login information as the WebGUI. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Webgui
If your control system supports password protection, you can turn login mode on. The GUI always requires a password. Note: The username and password used in IP Login Mode will be the same login information as the WebGUI. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 9 Volume - Adjust output volume up or down Output 1 - Turns HDMI audio output on or off. Output 2 - Turns HDMI audio output on or off. ARC Settings Output 1 - Turns ARC on or off. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 9 Volume - Adjust output volume up or down Output 1 - Turns HDMI audio output on or off. Output 2 - Turns HDMI audio output on or off. ARC Settings Output 1 - Turns ARC on or off. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 10 Note: User information will display for the admin only. Up to 3 users other than admin can be added. Note: Only the admin password can be changed. The username will always remain “root”. If the admin password is lost the system must be returned to factory settings and setup repeated. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 10 Note: User information will display for the admin only. Up to 3 users other than admin can be added. Note: Only the admin password can be changed. The username will always remain “root”. If the admin password is lost the system must be returned to factory settings and setup repeated. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 11 Note: Internal EDIDs include audio EDIDs as well. 2Ch is two channel audio, MCh is multi-channel audio (including up to Dolby TrueHD or DTS-HD Master Audio), DD is Dolby Digital, and DVI does not include audio. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 11 Note: Internal EDIDs include audio EDIDs as well. 2Ch is two channel audio, MCh is multi-channel audio (including up to Dolby TrueHD or DTS-HD Master Audio), DD is Dolby Digital, and DVI does not include audio. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 12 Download the latest firmware from http://www.atlona.com then update the unit using this function. Click the browse button and select the firmware to be loaded. Once selected, press the upload button. The progress bar will display the progress of the firmware update.
- Page 12 Download the latest firmware from http://www.atlona.com then update the unit using this function. Click the browse button and select the firmware to be loaded. Once selected, press the upload button. The progress bar will display the progress of the firmware update.
-
Page 13: Rs-232
RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned. Function ---- Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used ---- Not used ---- Not used Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 13: Rs-232
RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned. Function ---- Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used ---- Not used ---- Not used Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 14 Note: Preferred timings include audio EDIDs as well. 2Ch is two channel audio, MCh is multi-channel audio (including up to Dolby TrueHD or DTS-HD Master Audio), DD is Dolby Digital, and DVI does not include audio. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 14 [MCU] OSD menu [OSD] DSP [DSP] FPGA [FPGA] Type AT-UHD-SW-51 Displays the model information REBOOT REBOOT Reboots the AT-UHD-SW-52 Mreset Mreset Reset device to manufacture default Lock Lock Locks the front panel buttons Unlock Unlock Unlocks the front panel buttons...
- Page 15 IPQuit Logs out of TCP/IP Connection IPAddUser X Y TCP/IP user was added Adds a user for TCP/IP control Ex. IPAddUser Atlona 1234 X= user and Y= Password IPAddUser username password Displays a list of users and passwords username password...
- Page 15 IPQuit Logs out of TCP/IP Connection IPAddUser X Y TCP/IP user was added Adds a user for TCP/IP control Ex. IPAddUser Atlona 1234 X= user and Y= Password IPAddUser username password Displays a list of users and passwords username password...
-
Page 16: Installation Diagram
Connections and Installation Video Audio Control HDMI 1 POWER INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 VOLUME AT-UHD-SW-52 AUDIO RS-232 S/PDIF OUT RX TX HDMI IN HDMI OUT DC 5V MUTE OFF Control System Toll free: 1-877-536-3976 atlona.com... -
Page 16: Installation Diagram
Connections and Installation Video Audio Control HDMI 1 POWER INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 VOLUME AT-UHD-SW-52 AUDIO RS-232 S/PDIF OUT RX TX HDMI IN HDMI OUT DC 5V MUTE OFF Control System Toll free: 1-877-536-3976 atlona.com... -
Page 17: Specifications
H x W x D 44 x 222.25 x 261 (mm) 1.73 x 8.75 x 10.28 (inch) Rack size 1/2 rack, 1RU Weight Device 3.15 kg 1.44 lbs Certification Power Supply CE, FCC, cULus, RCM Product CE, FCC Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 17: Specifications
1.73 x 8.75 x 10.28 (inch) Rack size 1/2 rack, 1RU Weight Device 3.15 kg 1.44 lbs Certification Power Supply CE, FCC, cULus, RCM Product CE, FCC *4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 18: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 18: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 19: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 19: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 20: Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com. Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates. -
Page 20: Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com. Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
