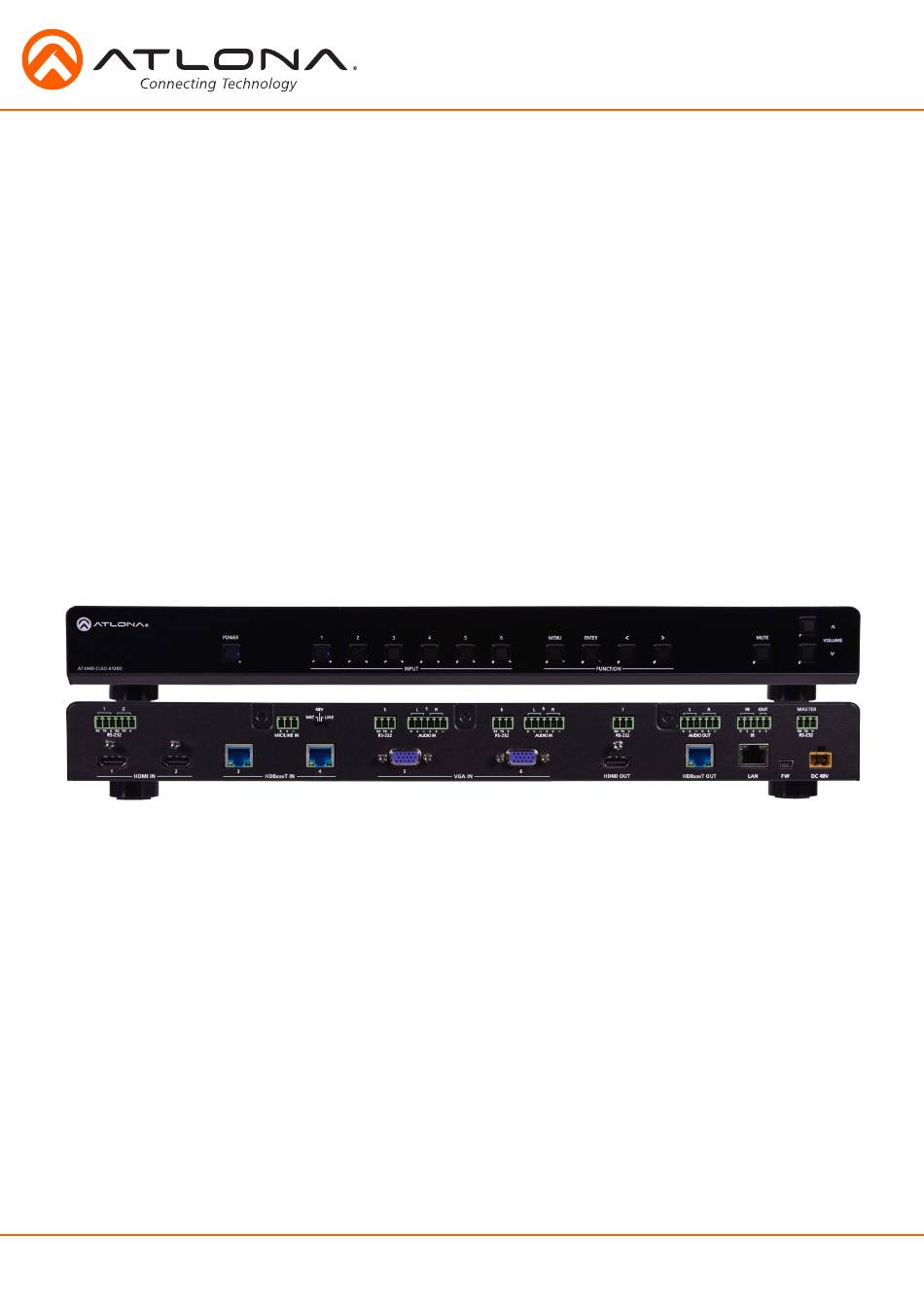

- Page 1 Atlona 6 Input Switcher and Scaler with HDBaseT and Mirrored HDMI Output AT-UHD-CLSO-612ED User Manual Please check http://www.atlona. com/product/AT-UHD-CLSO- 612ED for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
Baud Rate ..................32 14. Connection Diagram ..................33 15. Control Drivers ..................33 16. CLSO-612 Updating ..................33 17. Specifications ..................34 18. Safety ..................35 19. Warranty ..................36-37 20. Registration ..................37 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Ethernet hub in on the switcher enables control signal pass-through and network distribution. The AT-UHD-CLSO-612ED contains a full RS-232 signal distribution system to route control signals to local sources and displays. Professional audio features such as a microphone input with 48-volt phantom power and ducking eliminates additional voice-lift audio needs. -
Page 4: Panel Description
Panel Description Front Panel POWER MENU ENTER > < MUTE POWER MENU ENTER < > MUTE VOLUME VOLUME AT-UHD-CLSO-612ED INPUT FUNCTION AT-UHD-CLSO-612ED INPUT FUNCTION MASTER LINE RS-232 MIC/LINE IN RS-232 AUDIO IN RS-232 AUDIO IN RS-232 AUDIO OUT RS-232 1. Power: Use to turn the unit on, place into standby, or turn the display on/off. LED will illuminate... -
Page 5: Rear Panel
7. FW port: Firmware update port, connect a mini USB to USB A cable to a computer Note: Firmware is downloadable through http://www.atlona.com/product/AT-UHD-CLSO-612ED/ 8. DC 48V port: Connect included power supply here 9. IR ports: IR control systems and compatible IR emitters connect to this port (see pages 20-21) 10. -
Page 6: Category Cable
Using the wrong size connectors may result in interference causing loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in interference with audio and video transmission. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Analog Multi-Format Inputs
CLSO-612ED. Then each input to the matrix could be connected to a different format analog signal. A 3rd party control system could ensure the correct format is selected to match the input to the switcher. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Audio Connections
Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices. BALANCED UNBALANCED Important! With unbalanced connections a jumper is needed between ground and negative to reduce noise Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Microphone
Supplies 48 volts. Balanced MIC/LINE IN MIC/LINE IN LINE Connect wireless microphone receivers (or other with line level outputs using this setting. sources) Either balanced or unbalanced connections may be used. LINE LINE Balanced Unbalanced Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 10 Color 0 to 100 Tint 0 to 100 H Position 0 to 40 Phase 0 to 63 Disabled Medium High Disabled Medium High Disabled Medium High Scale Full Overscan Underscan Letterbox Panscan Follow Input Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 11 640x480@72 640x480@75 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@72 1024x768@75 PC-2 1280x768@60 1280x800@60 1280x960@60 1280x1024@60 1360x768@60 1366x768@60 1400x1050@60 1440x900@60 1600x900@60 1600x1200@60 1920x1200@60 Network Network Status MAC Address xx-xx-xx-xx-xx-xx IP Address xxx.xxx.x.xxx Subnet xxx.xxx.xxx.x Gateway xxx.xxx.x.x DHCP Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 12 (e.g. 16x9) Color Space xxxx (e.g. YUV) Color Depth xxxx (e.g. 24) Audio Info Input xxxx (e.g. HDMI 1) Audio Format xxxx (e.g. PCM) Sampling Rate xxxx (e.g. 48 KHz) Channels xxxx (e.g. 2-Ch) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 13: Tcp/Ip And Gui
TCP/IP WebGUI Atlona has created an easy to use webGUI for initial setup and later changes to the configuration of the CLSO-612ED. To begin, connect the LAN port of the CLSO-612ED to your network. Type the IP address of the... - Page 14 The home screen tab will display the general system information. If an HDMI or HDBaseT port is the current input, audio will display . If an analog port is selected then no audio (see image above) information is displayed. (see below) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 15 If your control system supports password protection, set the login mode to on. The GUI always requires a password. Note: The username and password used in IP Login Mode will be the same login information as the webGUI. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 16 Note: When the output is set to UHD resolutions, UHD sources are passed through without scaling. Frame rates are not changed. (e.g. if 3840x2160@30Hz input is received, output will remain 30Hz even if output is set to 24Hz) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 17 Note: Component, composite, and S-Video poll settings will grey out when VGA auto switching is on OSD Display Settings OSD func - Turns the CLSO’s display OSD menu on/off OSD info - Turns the source information on the display on/off when switching Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 18 Note: User information will display for the admin only. Note: Only the admin password can be changed. The admin username will always remain “root”. If the admin password is lost the system must be returned to factory settings and setup repeated. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 19 Audio settings adjust output volume for all sources including the microphone. Master - Affects all sources at the same time Inputs - Used to balance levels from each source. Note: For best results, gains should be balanced between master and source levels. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 20 The further right the slider is, the more sensitive the setting. 7. Set program decrease to ensure when ducking is triggered the program level is low enough the speaker can be heard. Fine tuning these settings will help achieve the best results. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 21 Off - Sends a command over HDBaseT to the HDMI output of the connected receiver to turn the connected display off Note: CEC may not work with every display type Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 22 DispSW AVSW: Display switches on/off, source audio/video signal switches on/off AV SW: Display is always on, source audio/video signal switches on/off Note: Must be in DispSW AVon or DispSW AVSW for RS-232 display control to work Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 23 End of line symbols - None, CR, LF, CR-LF, Space, STX, ETX, Null - Select the appropriate symbol from the drop down list. Carriage return, line feed, and carriage return with line feed are the most commonly used symbols. Note: Be sure to check the display’s manual for the correct symbol Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 24 5. Auto switch - Turns auto switching on/off for the HDVS transmitter 6. Display switch - Sets display switch function of the HDVS (default is disabled) Recommended set to disabled - product will be always on Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 25 - FPGA Update - FPGA firmware - OSD Update - OSD firmware • Select the new firmware file that was downloaded either from atlona.com or box.com • Press the update button A progress bar will display as the update is completed. After the update is complete, if a restart is required, the webGUI will display a prompt.
-
Page 26: On Screen Display
UXGA - 1600x1200 Mute - Silences all audio outputs WUXGA - 1920x1200 Auto - Auto VGA setup 720p 1080p 4Kx2K - 3840x2160 Native - Upscales/downscales the output signal to match the HDBaseT display’s preferred resolution Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 27: Rs-232
Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the CLSO-612ED now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 28: Commands
Mreset Mreset Reset device to manufacture default Source Type - HDMI 1 HDBT 1 VGA 1 COMP 1 CVBS 1 SVIDEO 1 HDMI 2 HDBT 2 VGA 2 COMP 2 CVBS 2 SVIDEO 2 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 29 2560x1600p60 X preferred timing - 1280x800 1920x1080 1024x768 1280x720 1920x1200 1366x768 800x600 1600x900 2560x440 3840x2160 sta Read status VGA X preferred timing - 1280x800 1920x1080 1024x768 1280x720 1920x1200 1366x768 800x600 1600x900 sta Read status Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 30 CliPass X Sets the IP password for login X= password, (blank) e.g. CliPass AtlonA e.g. CliPass AtlonA e.g. Set the IP password to AtlonA CliIPAddr X CliIPAddr X Sets the IP address of the controlled device X= ip, sta e.g. CliIPAddr sta e.g.
-
Page 31: Ip Commands
Set broadcast mode is on => Broadcast on IPTimeout Y IPTimeout Y IPTimeout Y= 1-600, sta. Set telnet idle timeout time. Default is 2 minute. e.g. Set telnet idle timeout 10 minutes => IPTimeout 600 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 32: Baud Rate
Note: Default for the transmitters/receivers is: Baud-9600bps, Data length-8bit, Parity-None, Stop Bit-1 Note: If the ouptut parameters don’t match the device, use the command RS232para[w,x,y,z] w = baud rate, x = data length y = parity, and z = stop bit Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 33: Connection Diagram
CLSO-612ED. Note: Atlona is constantly improving and updating features and stability. It is recommended that you check to make sure you are on the most current firmware before installation, especially when using a control system. -
Page 34: Specifications
H x W x D 44 x 438 x 254 (mm) 1.73 x 17.24 x 10 (inch) Weight Device 3.22 kg 7.10 lbs Certification Unit CE, FCC Power Supply CE, FCC, Level VI, RoHS, cULus, RCM, CCC Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 35: Safety
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 36: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 37: Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
