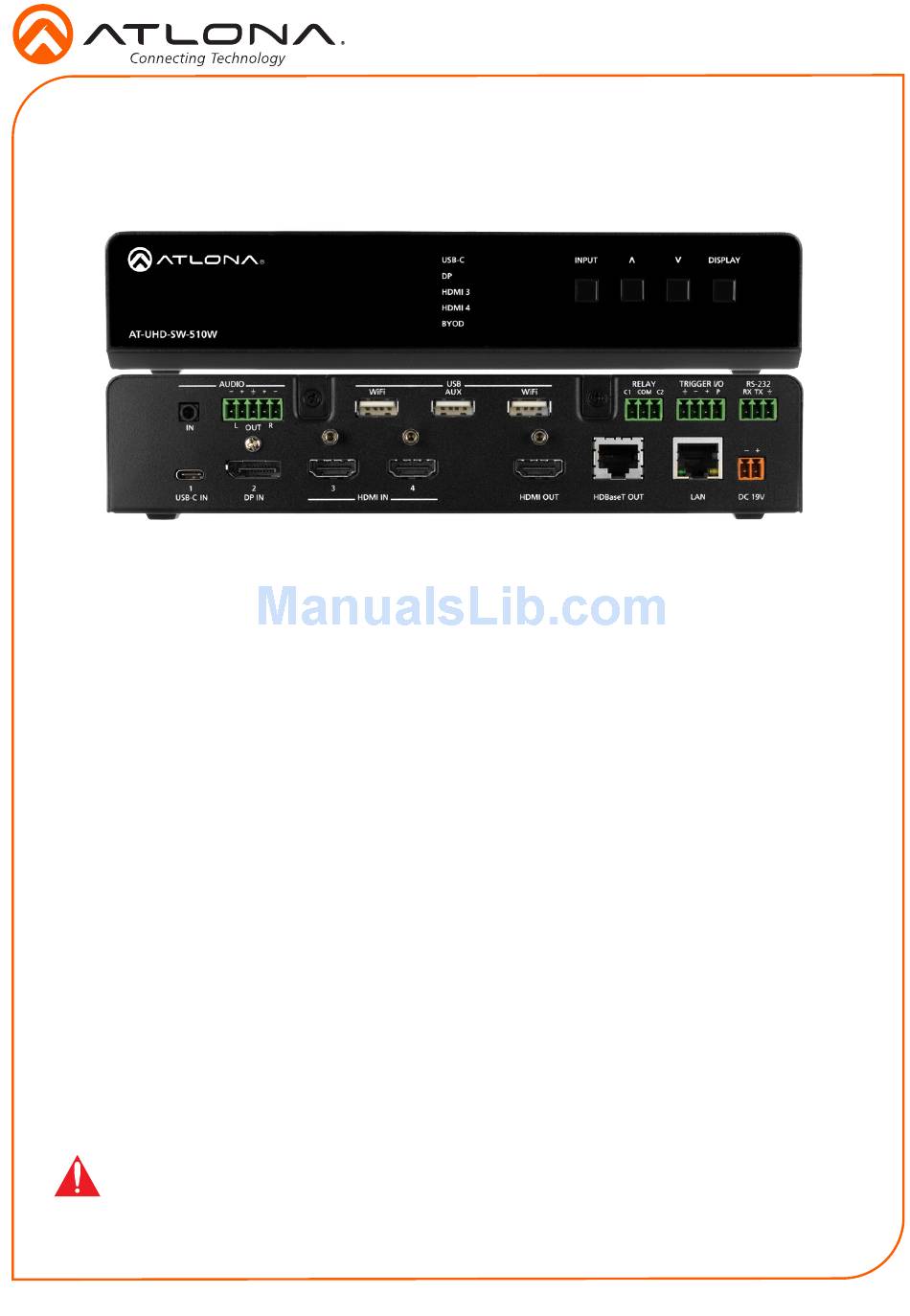

4K/UHD Five-Input Universal Switcher with Wireless
Presentation Link
AT-UHD-SW-510W
The Atlona AT-UHD-SW-510W is a 5×1 multi-format switcher with wireless presentation
capability. It provides universal BYOD (bring your own device) compatibility with HDMI,
DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices. The SW-510W
is HDCP 2.2 compliant, and features an HDMI output and a mirrored HDBaseT™ output that
can be used with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. It also includes
automatic input switching and automatic display control capability, both applicable to wired and
wireless source connections. Additionally, the SW-510W can be integrated with an occupancy
sensor to automatically power up the unit and display. This unique multi-format switcher and
wireless gateway provides a universal connectivity solution for presentation devices in a wide
range of professional AV applications.
Package Contents
1 x AT-UHD-SW-510W
1 x Captive screw connector, 5-pin
1 x Captive screw connector, 4-pin
2 x Captive screw connector, 3-pin
2 x Wi-Fi antennae
1 x 19V DC power supply
1 x Long rack ear
2 x Short rack ear
2 x Mounting plates
4 x Mounting screws
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-UHD-SW-510W for the latest
firmware updates and User Manual.
1
Installation Guide
AT-UHD-SW-510W
Advertisement
Table of Contents
Related Manuals for Atlona AT-UHD-SW-510W
Summary of Contents for Atlona AT-UHD-SW-510W
-
Page 1: Installation Guide
4K/UHD Five-Input Universal Switcher with Wireless Presentation Link AT-UHD-SW-510W The Atlona AT-UHD-SW-510W is a 5×1 multi-format switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices. The SW-510W is HDCP 2.2 compliant, and features an HDMI output and a mirrored HDBaseT™... -
Page 2: Panel Descriptions
Installation Guide AT-UHD-SW-510W Panel Descriptions USB-C INPUT DISPLAY USB-C INPUT DISPLAY HDMI 3 HDMI 4 HDMI 3 BYOD HDMI 4 AT-UHD-SW-510W BYOD AT-UHD-SW-510W AUDIO RELAY TRIGGER I/O RS-232 WiFi WiFi C1 COM C2 AUDIO RELAY TRIGGER I/O RS-232 WiFi WiFi... - Page 3 On some devices functions of pins 2 and 3 are reversed. Audio The AT-UHD-SW-510W provides the ability to output two-channel balanced analog audio on the AUDIO OUT port, using the included 5-pin captive screw connector. This step is optional. Use wire strippers to remove enough insulation to allow each wire to be securely fastened to each terminal of the captive screw connector block and connect the wires as shown.
- Page 4 The AT-UHD-SW-510W provides a RELAY port, allowing the control of screens, curtains, and other devices. Use a 48 V DC relay with no more than 1 A current draw. When the AT-UHD-SW-510W is powered-on or rebooted, C1 and C2 are set to the Normally Open (NO) state.
-
Page 5: Power Connector
Black Mounting Instructions The AT-UHD-SW-510W can be mounted in different ways, based on the number of units that are being installed. The AT-UHD-SW-510W can be mounted in a rack or on/under any flat surface. Single-unit rack installation Attach the included small rack ear to one side of the AT-UHD-SW-510W, using the included screws. - Page 6 Installation Guide AT-UHD-SW-510W Dual-unit rack installation Turn both units upside-down on a flat surface, next to each other, as shown. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plate should face upward.
- Page 7 Installation Guide AT-UHD-SW-510W Flat surface Turn the unit upside down a flat surface. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plates should face upward.
-
Page 8: Installation
Installation Guide AT-UHD-SW-510W Installation Connect a USB-C cable from a source to the USB-C (1) port. Connect a DisplayPort cable from a source to the DP IN (2) port. Connect up to two UHD/HD sources, using HDMI cables, to the HDMI IN (3) and HDMI IN (4) ports. - Page 9 (USB-C, DP, HDMI 3, HDMI 4, and BYOD) on the front panel blink four times. Auto IP mode If the AT-UHD-SW-510W is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx. If this occurs, connect the AT-UHD-SW-510W to a computer running Microsoft Windows®...
- Page 10 AT-UHD-SW-510W webGUI The AT-UHD-SW-510W includes a built-in webGUI, which allows easy management and control of all features. Follow the instructions below to access the webGUI. Make sure that an Ethernet cable is connected between the LAN port on the AT-UHD-SW- 510W and the network.
-
Page 11: Troubleshooting
• Check all cable connections between the AT-UHD-SW- working. 510W and source devices. If the cable between the source and the AT-UHD-SW-510W is damaged or is not secure, then this will prevent auto-switching from working correctly. • Verify that audio switching is set to ON, under the Configuration menu in the webGUI. - Page 12 • © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
