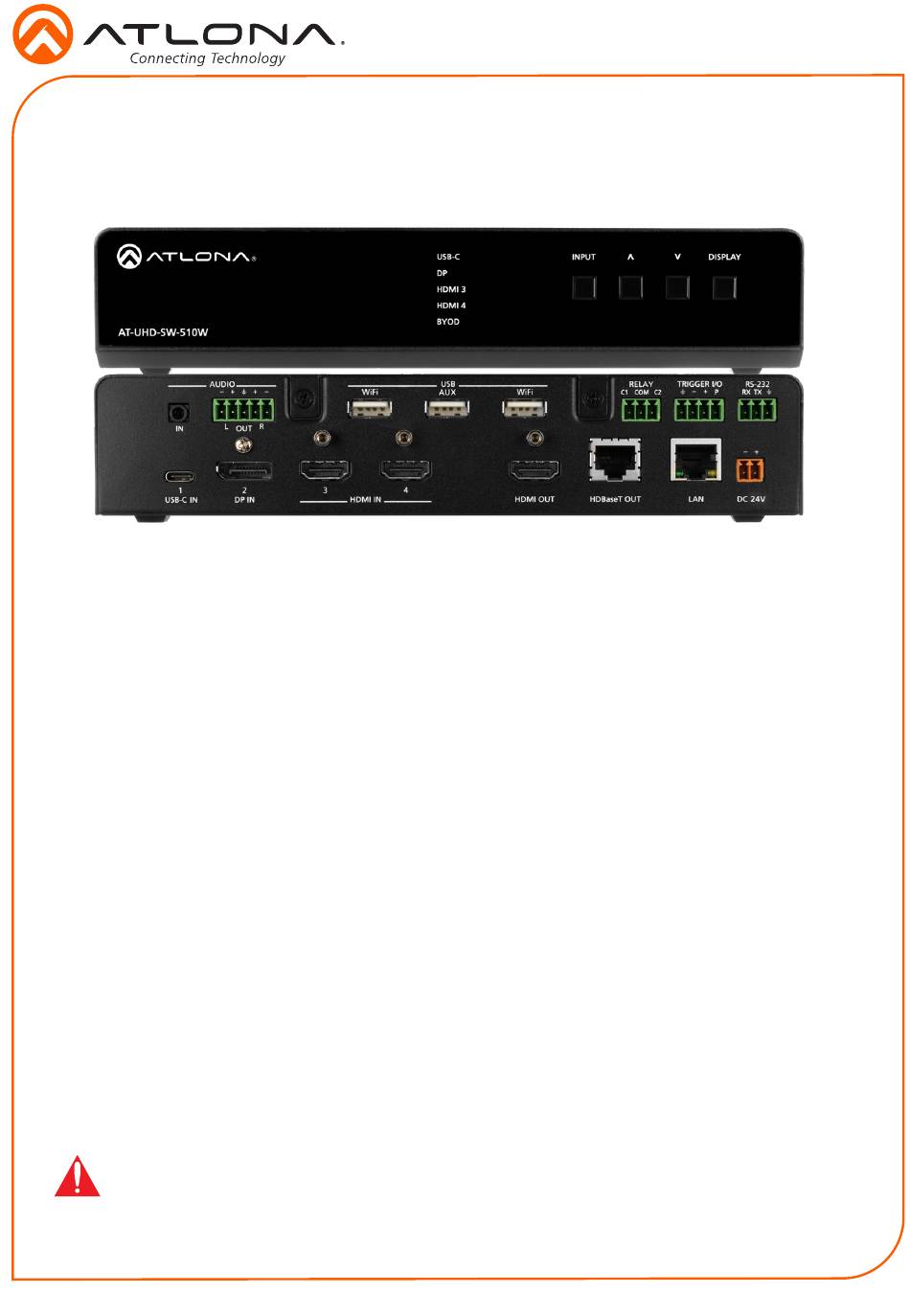

4K/UHD Five-Input Universal Switcher with Wireless
Presentation Link
AT-UHD-SW-510W

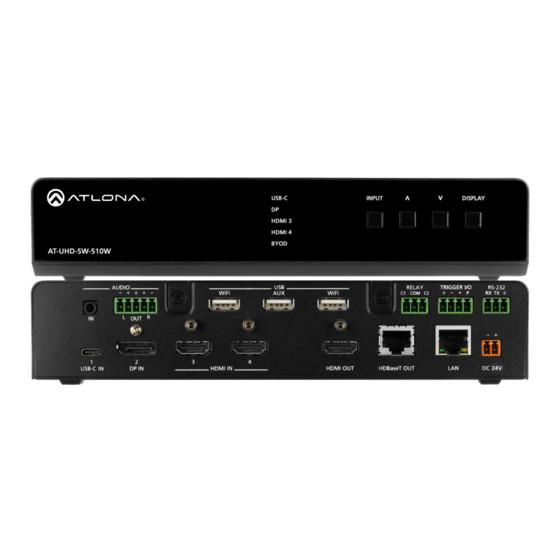

The Atlona AT-UHD-SW-510W is a 5×1 multi-format switcher with wireless presentation
capability. It provides universal BYOD (bring your own device) compatibility with HDMI,
DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices. The SW-510W
is HDCP 2.2 compliant, and features an HDMI output and a mirrored HDBaseT™ output that
can be used with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. It also includes
automatic input switching and automatic display control capability, both applicable to wired and
wireless source connections. Additionally, the SW-510W can be integrated with an occupancy
sensor to automatically power up the unit and display (available in firmware 1.1 or greater).
This unique multi-format switcher and wireless gateway provides a universal connectivity solution
for presentation devices in a wide range of professional AV applications.
Package Contents
1 x AT-UHD-SW-510W
1 x Captive screw connector, 5-pin
1 x Captive screw connector, 4-pin
2 x Captive screw connector, 3-pin
2 x Wi-Fi antenna modules
1 x USB-C cable, 2 meters
1 x 24V DC power supply
2 x Mounting plates
4 x Mounting screws
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-UHD-SW-510W for the latest
firmware updates and User Manual.
1
Installation Guide
AT-UHD-SW-510W
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona SW-510W-EU-KIT
Summary of Contents for Atlona SW-510W-EU-KIT
- Page 1 HDCP 2.2 compliant, and features an HDMI output and a mirrored HDBaseT™ output that can be used with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. It also includes automatic input switching and automatic display control capability, both applicable to wired and wireless source connections.
- Page 2 Installation Guide AT-UHD-SW-510W Panel Descriptions USB-C INPUT DISPLAY USB-C INPUT DISPLAY HDMI 3 HDMI 4 HDMI 3 BYOD HDMI 4 AT-UHD-SW-510W BYOD AT-UHD-SW-510W AUDIO RELAY TRIGGER I/O RS-232 WiFi WiFi C1 COM C2 AUDIO RELAY TRIGGER I/O RS-232 WiFi WiFi C1 COM C2 USB-C IN DP IN...
- Page 3 Installation Guide AT-UHD-SW-510W RS-232 The AT-UHD-SW-510W provides an RS-232 port which allows communication between an automation system and an RS-232 device. This step is optional. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires. Insert the TX, RX, and GND wires into correct terminal using one of the included 3-pin captive screw connectors.
- Page 4 Installation Guide AT-UHD-SW-510W Relay (firmware version 1.1 and greater) The AT-UHD-SW-510W provides a RELAY port, allowing the control of screens, curtains, and other devices. Use a 48 V DC relay with no more than 1 A current draw. When the AT-UHD-SW-510W is powered-on or rebooted, C1 and C2 are set to the Normally Open (NO) state.
-
Page 5: Power Connector
The AT-UHD-SW-510W can be mounted in different ways, based on the number of units that are being installed. The AT-UHD-SW-510W can be mounted in a rack or on/under any flat surface. NOTE: AT-UHD-510W-RM rack ears are sold separately. Contact Atlona for more information. - Page 6 Installation Guide AT-UHD-SW-510W Dual-unit rack installation Turn both units upside-down on a flat surface, next to each other, as shown. Position the included mounting plates over the holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plate should face upward.
- Page 7 Installation Guide AT-UHD-SW-510W Flat surface Turn the unit upside down on a flat surface. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plates should face upward.
-
Page 8: Installation
Refer to Obtaining the IP Address on page 10 for more information. HDMI 4 BYOD AT-UHD-SW-510W IMPORTANT: Only use Atlona Wi-Fi USB modules. Other Wi-Fi modules may not be supported by this product. RELAY TRIGGER I/O AUDIO RS-232... -
Page 9: Connection Diagram
Installation Guide AT-UHD-SW-510W Connection Diagram Miracast™ over Infrastructure AT-UHD-SW-510W Laptop USB Wireless Antennas Wireless Access Point (WAP) (included) RS -2 R I/O IG GE W iFi 24 V W iFi se T DI O B- C AT-UHD-EX-100CE-RX-PSE AT-ANC-108D Network Control Panel se T Tablet (BYOD) -
Page 10: Accessing The Webgui
Enter the following information on the Login page. Login: admin Password: Atlona Click the Login button. Refer to User Manual for detailed operation of the webGUI. NOTE: Refer to the IT Deployment Guide for detailed information on configuring network modes. -
Page 11: Troubleshooting
Installation Guide AT-UHD-SW-510W Troubleshooting Problem Solution The source image is not • Check all cable connections between the AT-UHD-SW- displayed. 510W and the source(s) and display. • Check the input indicators on the front panel to make sure that the correct input is selected. Press and release the INPUT button to cycle through each input. - Page 12 • © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
